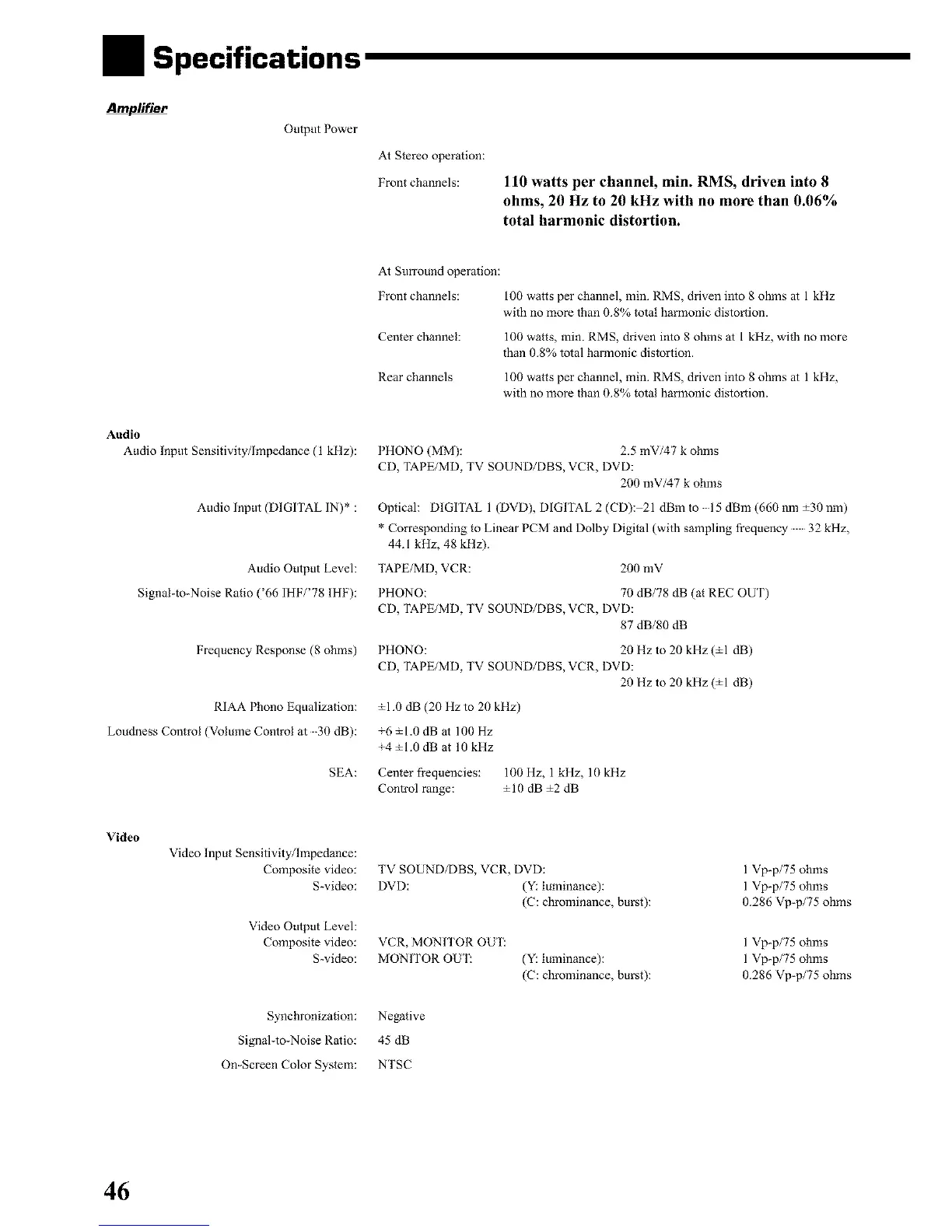

Specifications
_lifier
Output Power
At Stereo operation:
Front channels:
110 watts per channel, min. RMS, driven into 8
ohms, 20 Hz to 20 kHz with no more than 0.06%
total harmonic distortion.
At Surround operation:
Front channels: 100 watts per channel, min. RMS, driven into 8 ohms at 1 kHz
with no more than 0.8% total harmonic distortion.
Center channel: 100 watts, min. RMS, &iven into 8 ohms at 1 kHz, with no more
than 0.8% total harmonic distortion.
Rear channels 100 watts per channel, min. RMS, driven into 8 ohms at 1 kHz,
with no more than 0.8% total harmonic distortion.
Audio
Audio Input Sensitivity/Impedance (1 kHz):
Audio Input (DIGITAL IN)* :
Audio Output Level:
Signal-to-Noise Ratio ('66 IHF/'78 IHF):
Frequency Response (8 ohms)
RIAA Phono Equalization:
Loudness Control (Volume Control at 30 dB):
SEA:
PHONO (MM): 2.5 mV/47 k ohms
CD, TAPE/MD, TV SOUND/DBS,VCR, DVD:
200mV/47 k ohms
Optical: DIGITAL 1 (DVD), DIGITAL 2 (CD): 21 dBm to 15 dBm (660 nm =30 nm)
* Corresponding to Linear PCM and Dolby Digital (with sampling frequency 32 kHz,
44.1 kHz, 48 kHz).
TAPE/MD, VCR: 200 mV
PHONO: 70 dB/78 dB (at REC OUT)
CD, TAPE/MD, TV SOUND/DBS, VCR, DVD:
87 dB/80 dB
PHONO: 20 Hz to 20 kHz (-:1 dB)
CD, TAPE/MD, TV SOUND/DBS, VCR, DVD:
20 Hz to 20 kHz (=1 dB)
-:1.0 dB (20 Hz to 20 kHz)
-76 -:1.0 dB at 100 Hz
-74 -:1.0 dB at 10 kHz
Center frequencies: 100 Hz, 1 kHz, 10 kHz
Control range: -:10 dB ±2 dB
Video
Video Input Sensitivity/Impedance:
Composite video:
S-video:
Video Output Level:
Composite video:
S_video:
TV SOUND/DBS, VCR, DVD:
DVD: (Y: luminance):
(C: chrominance, burst):
VCR, MONITOR OU'I?
MONITOR OU'I? (Y: luminance):
(C: chrominance, burst):
1 Vp-p/75 ohms
1 Vp-p/75 ohms
0.286 Vp-p/75 ohms
1 Vp-p/75 ohms
1 Vp-p/75 ohms
0.286 Vp-p/75 ohms
Synchronization: Negative
Signal-to-Noise Ratio: 45 dB
On-Screen Color System: NTSC
46
