7 Center unit (XV-THU1)
Audio section
Front/Surround: 40 W per channel, RMS at 3 Ω at
1 kHz, with 10 % total harmonic
distortion.
Center: 100
W, RMS at 4 Ω at 1 kHz, with
10 % total harmonic distortion.
Subwoofer: 100
W, RMS at 4 Ω at 30 Hz, with
10 % total harmonic distortion.
Video section
Video System: PAL
Horizontal Resolution: 500 lines
Signal-to-Noise Ratio: 64 dB
(Composite signal when “RGB” is selected)
Video output level
Composite: 1.0 V(p-p)/75 Ω
Y: 1.0 V(p-p)/75 Ω
C: 0.3 V(p-p)/75 Ω
RGB: 0.7 V(p-p)/75 Ω
USB storage
USB Specification: Compatible with the USB 2.0 Full
Speed
Compatible Device: Mass Storage Class
Compatible File System: FAT16, FAT32
Bus Power Supply: Max. 500 mA
Tuner section
Tuning Range
FM: 87.50 MHz to 108.00 MHz
AM (MW): 522 kHz to 1 629 kHz
General
Power Requirements: AC 230 V , 50 Hz
Power Consumption: 60 W (at operation)
0.9 W (in standby mode)
Dimensions (W M H M D):
435 mm M 70 mm M 308 mm
Mass: 3.0 kg
7 Subwoofer (SP-THU1W)
Type: Bass-reflex type
Speaker: 16 cm cone M 1
Power Handling Capacity: 100 W
Impedance: 4 Ω
Frequency Range: 30 Hz to 200 Hz
Sound Pressure Level: 72 dB/W·m
Dimensions (W M H M D):
214 mm M 296 mm M 329 mm
Mass: 4.9 kg
7 Front speakers (SP-THU1F)
Type: 1-way 2-speaker bass-reflex type
(Magnetically-shielded type)
Speaker: 5.5 cm cone M 2
Power Handling Capacity: 40 W
Impedance: 3 Ω
Frequency Range: 100 Hz to 20 000 Hz
Sound Pressure Level: 79 dB/W·m
Dimensions (W M H M D):
180 mm M 73 mm M 91 mm
Mass: 0.77 kg each
7 Center surround speaker (SP-THU1C)
Type:
Center 1-way 2-speaker bass-reflex type
(Magnetically-shielded type)
Surround Left: 1-way bass-reflex type
(Magnetically-shielded type)
Surround Right: 1-way bass-reflex type
(Magnetically-shielded type)
Speaker:
Center: 5.5 cm cone M 2
Surround Left: 5.5 cm cone M 1
Surround Right: 5.5 cm cone M 1
Power Handling Capacity:
Center: 100 W
Surround Left: 40 W
Surround Right: 40 W
Impedance:
Center: 4 Ω
Surround Left: 3 Ω
Surround Right: 3 Ω
Frequency Range: 100 Hz to 20 000 Hz
Sound Pressure Level:
Center: 80 dB/W·m
Surround Left: 77 dB/W·m
Surround Right: 77 dB/W·m
Dimensions (W M H M D):
435 mm M 74 mm M 91 mm
Mass: 1.6 kg
Designs and specifications are subject to change without notice.
Specifications
72.4
2 4
333
4

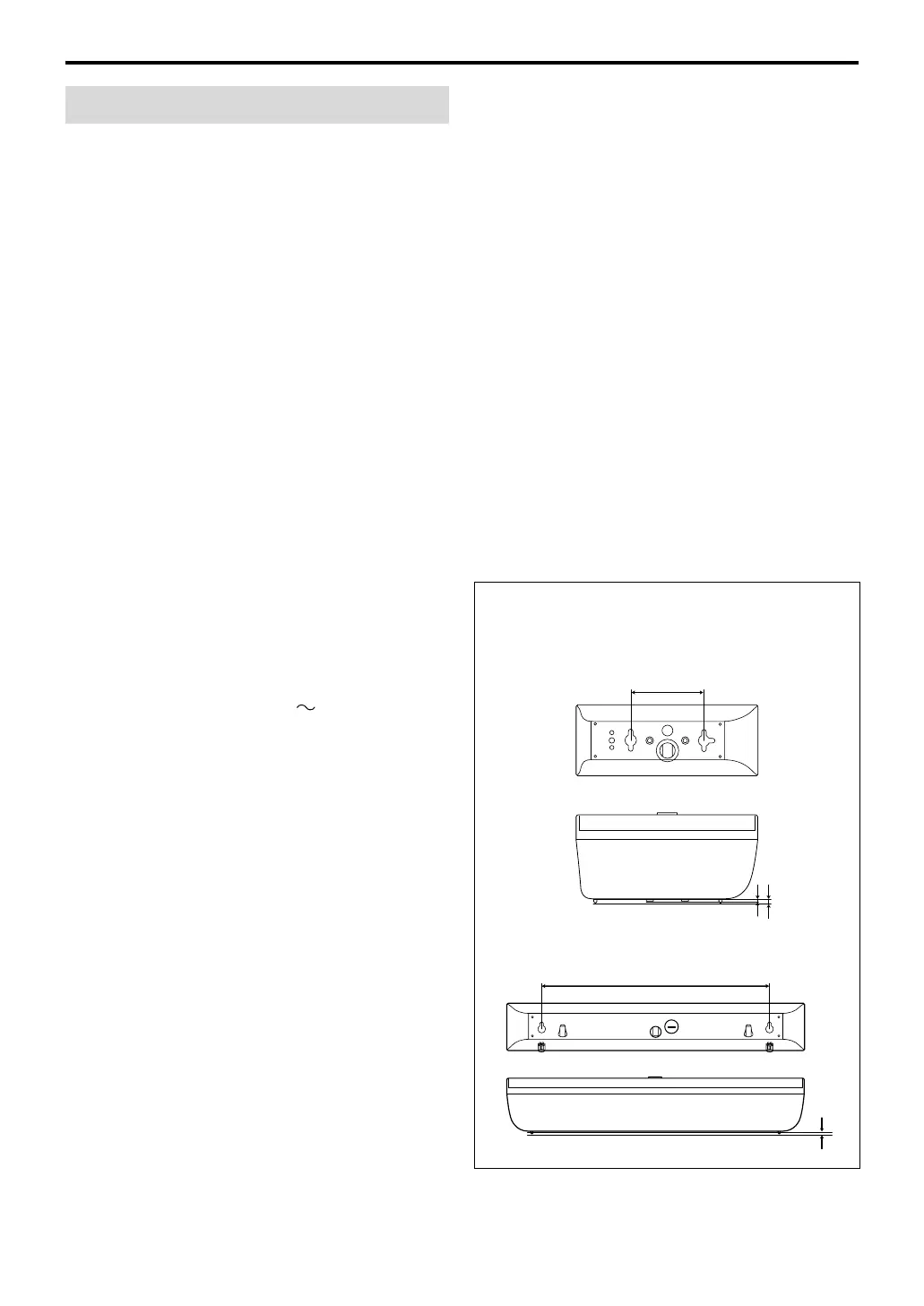

Dimensions of the wall-mount attachment for the
front and center surround speakers:
SP-THU1F
SP-THU1C
Unit: mm
