Connections
This section involves various methods of connecting the product to other external components. Ensure
all audio connections of the unit are connected before connecting to the mains power socket.
Method 1: Optical / Coaxial Connection
Use an optical cable (included) or coaxial cable (not included) to connect the soundbar’s
OPTICAL / COAXIAL socket to the OPTICAL OUT / COAXIAL OUT socket of the external
device. The simplest option is to connect your soundbar directly to your TV. If you connect
the soundbar to another external device (e.g. Blu-Ray player), you will hear the sound from
that device through the soundbar.
After the connection is completed,
1. Press on the unit or remote control to switch on the unit.
2. Press
Source button repeatedly to select OPTICAL or COAXIAL mode.
The unit may not be able to decode all digital audio formats from the input source. In this case, the unit
will mute. The display will show “Unsupported Sound Format. Please refer to instruction book to
change sound format to PCM“. This is NOT a defect. Ensure that the audio setting of the input source
(e.g. TV, game console, DVD player, etc.) is set to PCM or Dolby Digital (Refer to the user manual of the
input source device for its audio setting details) with Optical/Coaxial input.
AC~

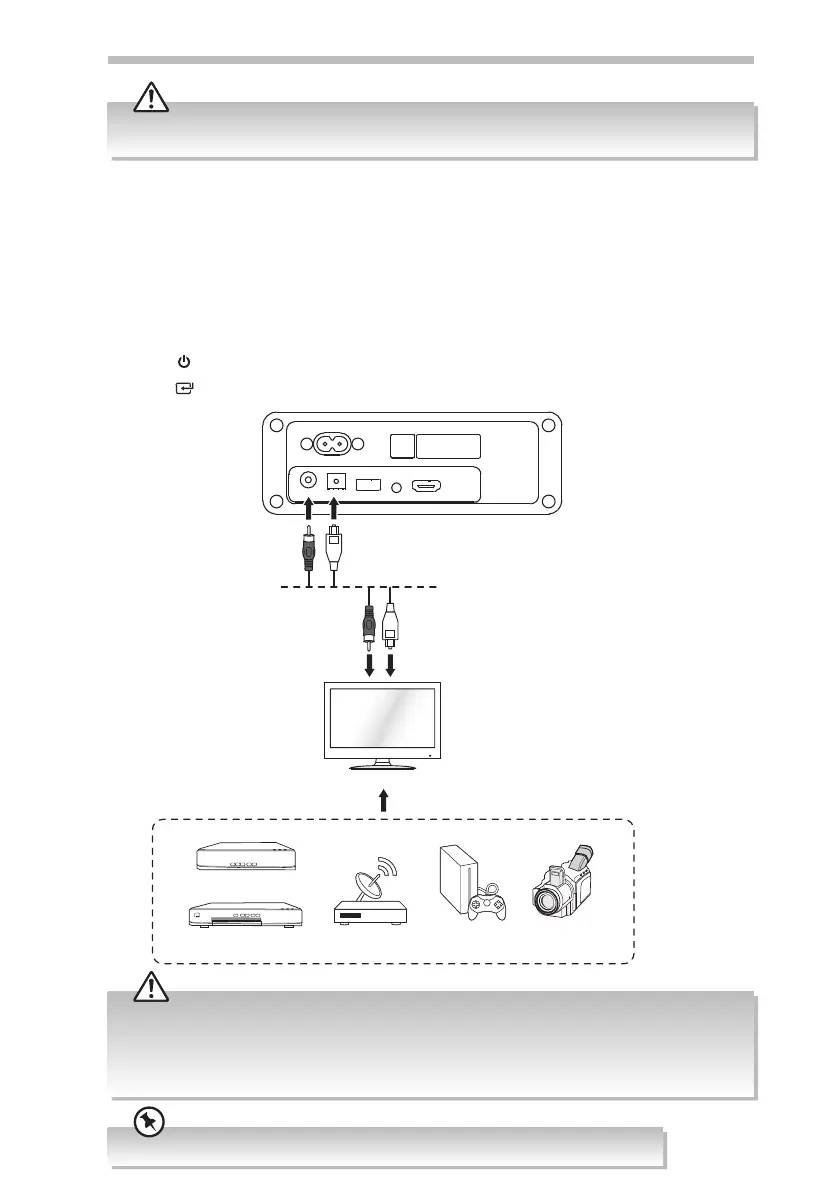

COAXIAL OPTICAL IN USB AUX IN HDMI ARC
TV
Rear View of the Soundbar
Blu-ray Player / DVD Player
/ Recorder
Set-top Box
Satellite
Receiver
Game Console Video Camera
Optical cable (included)Coaxial cable (not included)
Before connecting the optical cable, remove the protective cap of the OPTICAL socket.
