JVC TH-S77 User Manual

1-8 (No.MB421)
SECTION 3
DISASSEMBLY
3.1 Main body section
3.1.1 Removing the metal cover

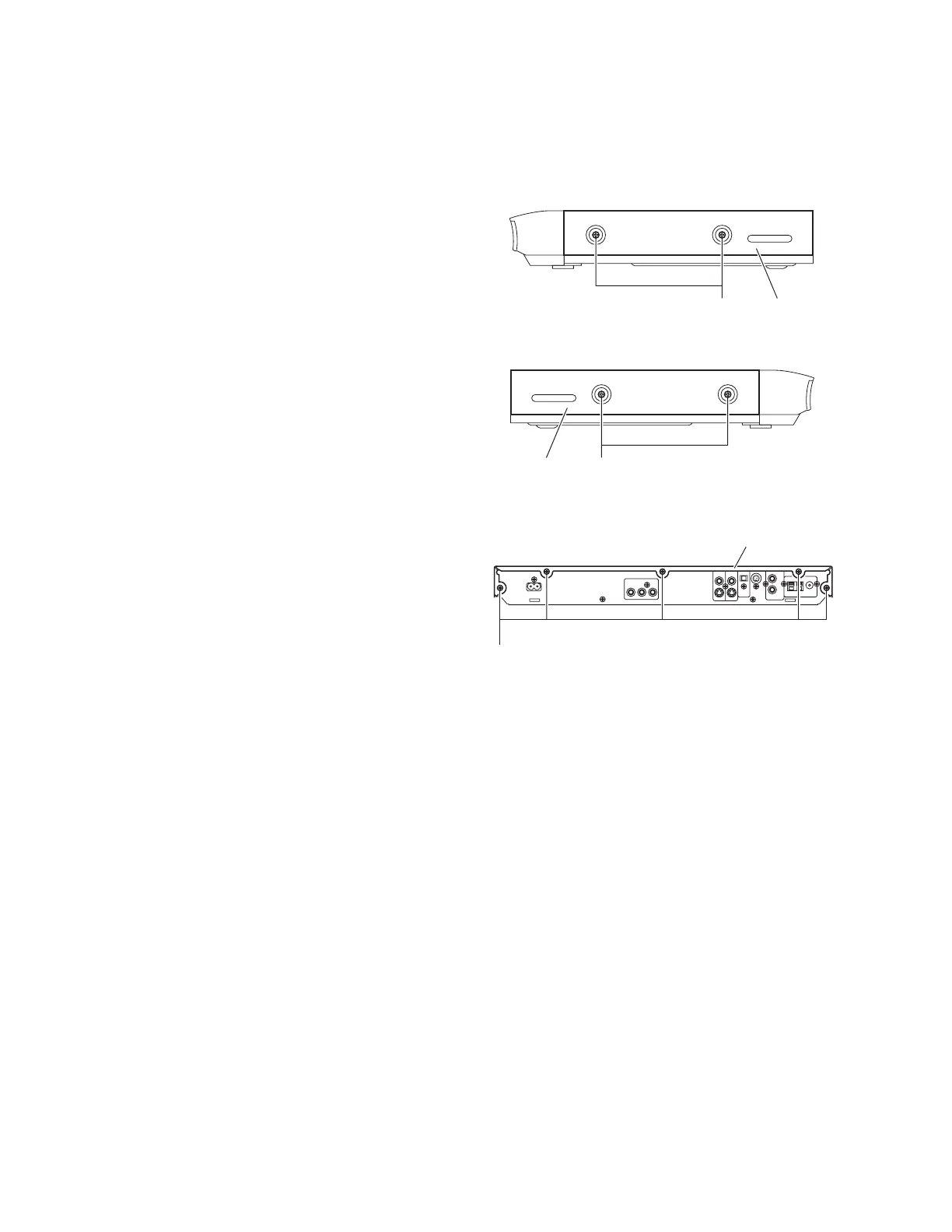

(See Figs.1 to 3)
(1) From the both sides of the main body, remove the four
screws A attaching the metal cover. (See Figs.1 and 2)
(2) From the back side of the main body, remove the five
screws B attaching the metal cover. (See Fig.3)
(3) Lift the rear section of the metal cover upward while ex-
tending the lower sections of the metal cover. (See Fig.3)
Fig.1
Fig.2
Fig.3
A
Metal cove
r
A
Metal cover
Metal cover
B
