Product Overview
Main Unit

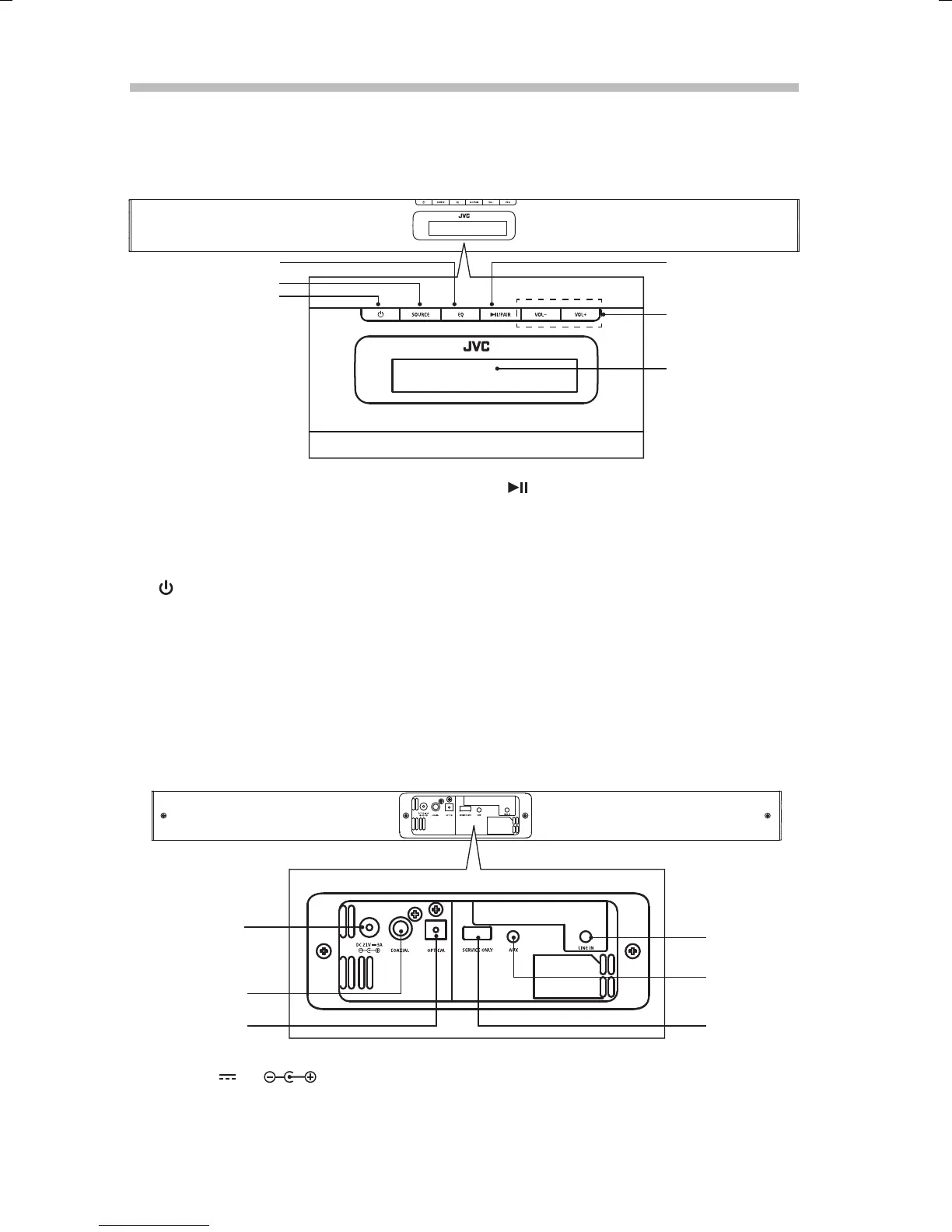

Front View
1. EQ Button
Select a preset sound eect.
2. SOURCE Button
Select the Input source.
3. Button
Switch the unit between ON and
STANDBY mode.
4. / PAIR Button
• Play / pause / resume playback in
Bluetooth® mode.
• Press and hold to activate the pairing
function in Bluetooth® mode or
to disconnect the existing paired
Bluetooth® device in Bluetooth® mode.
5. VOL+/VOL– Button
Increase/decrease the volume level.
6. Display
1 4
5
2
3
6
1. DC 21V 3A Socket
2. COAXIAL Socket
3. OPTICAL Socket
4. LINE IN Socket
5. AUX Socket
Rear View and Sockets
1
2
3
4
5
6
6. SERVICE ONLY Socket
The USB socket is for service
only. It is not designed to charge
smartphones, tablets or similar
devices.
