TM-H140PN

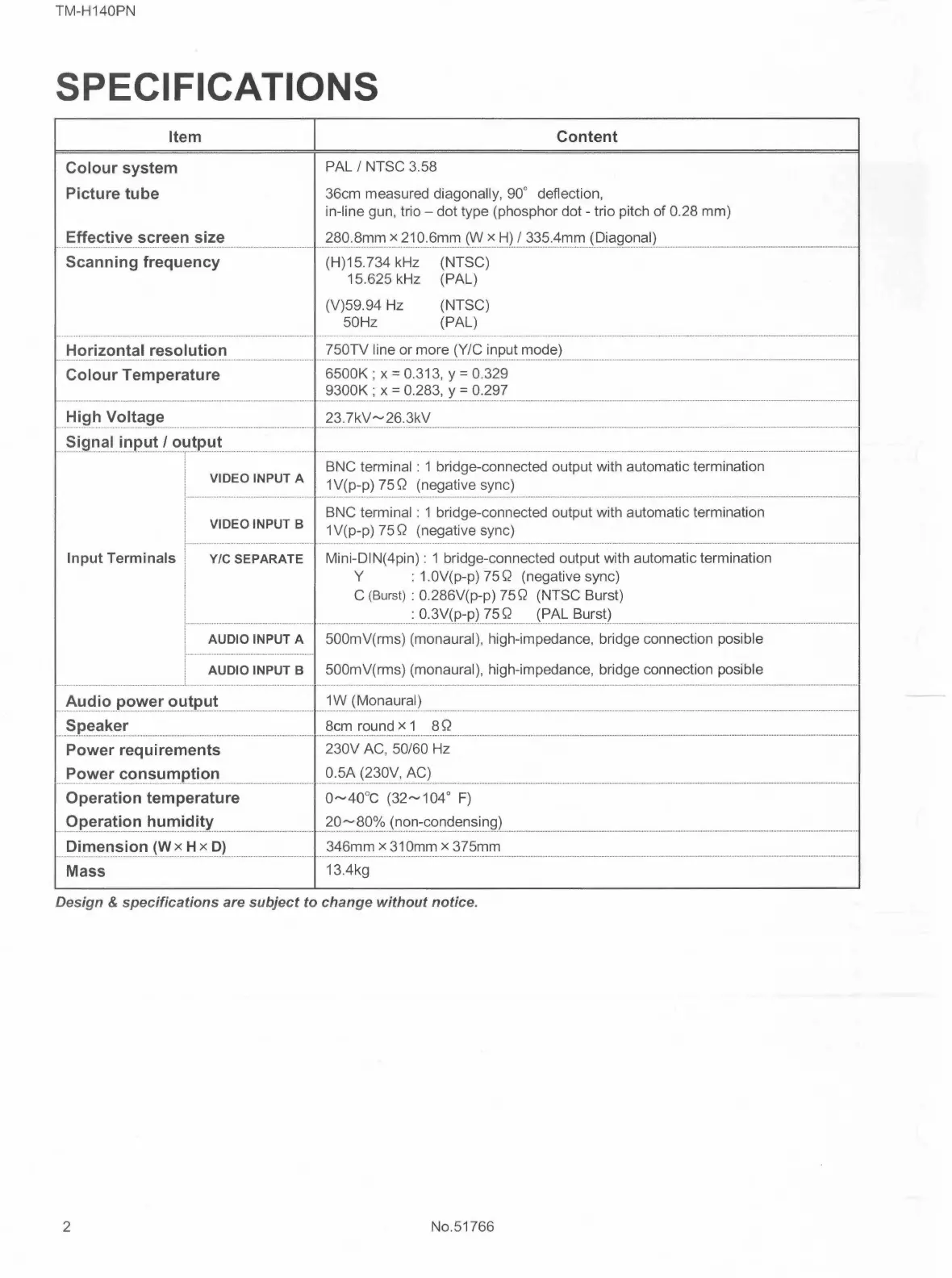

SPECIFICATIONS
Item Content
Colour system
PAL/ NTSC 3.58
Picture tube
36cm measured diagonally, 90° deflection,
in-line gun, trio - dot type (phosphor dot - trio pitch of 0.28 mm)
Effective screen size
280.8mm x 210.6mm (W x H) / 335.4mm (Diagonal)
Scanning frequency
(H)15.734 kHz (NTSC)
15.625 kHz (PAL)
(V)59.94 Hz (NTSC)
50Hz (PAL)
Horizontal resolution
750TV line or more (Y/C input mode)
Colour Temperature
6500K; x = 0.313, y = 0.329
9300K ; x = 0.283, y = 0.297
~i9~ Voltage
23.7kV-26.3kV
Sig nal ___ i_np_ut_J __ o_u_tput
VIDEO INPUT A
BNC terminal : 1 bridge-connected output with automatic termination
1V(p-p) 75 Q (negative sync)
VIDEO INPUT B
BNC terminal : 1 bridge-connected output with automatic termination
1V(p-p) 75Q (negative sync)
Input Terminals
Y/C SEPARATE
Mini-DIN(4pin): 1 bridge-connected output with automatic termination
y
: 1.0V(p-p) 75 Q (negative sync)
C (Burst) : 0.286V(p-p) 75 Q (NTSC Burst)
: 0.3V(p-p) 75 Q (PAL Burst)
AUDIO INPUT A
500mV(rms) (monaural), high-impedance, bridge connection posible
AUDIO INPUT B
500mV(rms) (monaural), high-impedance, bridge connection posible
Audio power output
1W (Monaural)
Speaker
8cm round x 1
SQ
Power requirements
230V AC, 50/60 Hz
Power consumption
0.5A (230V, AC)
Operation temperature
0-40 °C (32-104° F)
Operation humidity
20-80% (non-condensing)
Dimension (W x H x D)
346mm x 310mm x 375mm
Mass
13.4kg
Design & specifications are subject to change without notice.
2
No.51766
