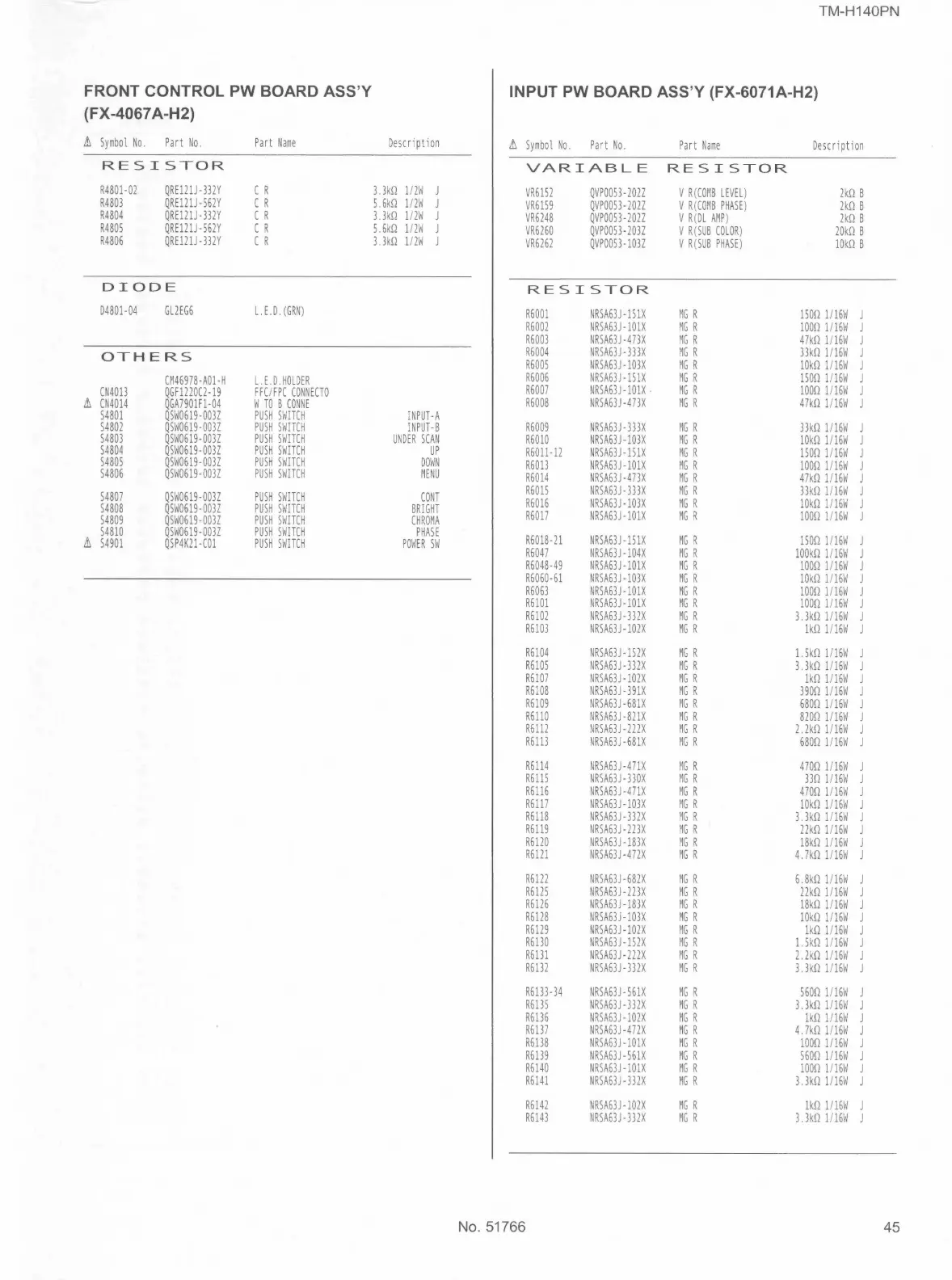

TM-H140PN
FRONT CONTROL PW BOARD ASS'Y
INPUT PW BOARD ASS'Y (FX-6071A-H2)
(FX-4067 A-H2)
it
Symbol No.
Part No.
Part Name
Description
it Symbol No. Part No.
Part Name
Desc ri pti on
RESISTOR
VARIABLE
RE S ISTOR
R4801-02
QRE121J-332Y
C R
3. 3kl1 l/2W
VR6152 QVP0053-2022 V R(COMB LEVEL)
2kl1 B
R4803 QRE121J-562Y
C R 5. 6kl1 l/2W
VR6159
QVP0053-2022
V R(COMB PHASE)
2kl1 B
R4804 QRE121J-332Y
C R
3. 3kl1 1/2W
VR6248 QVP0053-2022 V R(DL AMP)
2kl1 B
R4805 QRE121J-562Y
C R
5. 6kl1 1/2W
VR6260 QVP0053-2032
V R (SUB COLOR)
20kl1 B
R4806 QRE121J-332Y
C R
3.3kl1 1/2W
VR6262 QVP0053-1032 V R(SUB PHASE)
10kl1 B
DIODE
RESISTOR
D4801-04
GL2EG6 L. E. D. (GRN)
R6001
NRSA63J-151X
MG R
15011 1/16W
R6002 NRSA63J-101X
MG R
10011 1/16W
R6003 NRSA63J -4 73X
MG R
47kl11/16W
OTHERS
R6004
NRSA63J-333X
MG R 33kl1 l/ 16W
R6005
NRSA63J-103X
MG R
10kl1 l/16W
CM46978-A01-H
L.E.D.HOLDER
R6006 NRSA63J-151X
MG R
15011 l/16W
CN4013 QGF1220C2-19
FFC/FPC CONNECTO
R6007 NRSA63J-101X ·
MG R
10011 l/16W
it CN4014 QGA7901Fl-04
W TO B CONNE
R6008 NRSA63J-473X
MG R
47kl1 1/16W
54801 QSW0619-0032
PUSH SWITCH
INPUT-A
54802 QSW0619-0032
PUSH SWITCH
INPUT-B
R6009 NRSA63J-333X
MG R
33kl1 l/16W
54803 QSW0619-0032
PUSH SWITCH
UNDER SCAN
R6010
NRSA63J-103X
MG R
10kl1 1/16W
54804 QSW0619-0032
PUSH SWITCH
UP
R6011-12 NRSA63J-151X
MG R
15011 l/16W
54805 QSW0619-0032
PUSH SWITCH
DOWN
R6013
NRSA63J-101X
MG R
10011 l/16W
54806 QSW0619-0032
PUSH SWITCH
MENU
R6014 NRSA63J-473X
MG R
47kl1 1/ 16W
54807 QSW0619-0032
PUSH SWITCH
CONT
R6015 NRSA63J-333X
MG R
33kl1 1/16W
R6016 NRSA63J-103X
MG R 10kl1 1/16W
54808 QSW0619-0032 PUSH SWITCH
BRIGHT
R6017 NRSA63J-101X MG R
10011 l/16W
54809 QS\~0619-0032 PUSH SWITCH
CHROMA
54810 QSW0619-0032 PUSH SWITCH
PHASE
R6018-21 NRSA63J-151X
MG R
15011 1/16W
!:,
54901 QSP4K21-C01 PUSH SWITCH
POWER SW
R6047 NRSA63J-104X
MG R
100kl1 l/16W
R6048-49 NRSA63J-101X
MG R
10011 1/16W
R6060-61 NRSA63J-103X
MG R
10kl1 l/16W
R6063 NRSA63J-101X
MG R
10011 l/16W
R6101
NRSA63J-101X
MG R
10011 1/16W
R6102
NRSA63J-332X
MG R 3.3kl1 l/16W
R6103
NRSA63J-102X
MG R
lkl1 1/16W
R6104 NRSA63J-152X
MG R l.5kl1 l/ 16W
R6105 NRSA63J-332X
MG R 3.3kl1 l/16W
R6107 NRSA63J-102X
MG R lk11 l/16W
R6108
NRSA63J-391X
MG R
39011 l/16W
R6109 NRSA63J-681X
MG R
68011 l/16W
R6110
NRSA63J-821X
MG R
82011 l/16W
R6112 NRSA63J-222X
MG R 2.2kl11/16W
R6113 NRSA63J-681X
MG R
68011 1/ 16W
R6114 NRSA63J-471X
MG R 47011 l/16W
R6115
NRSA63J-330X
MG R 3311 l/16W
R6116
NRSA63J-471X
MG R
47011 l/16W
R6117
NRSA63J-103X
MG R 10kl1 l/16W
R6118
NRSA63J-332X
MG R
3.3kl1 l/16W
R6119 NRSA63J-mx
MG R
22kl1 l/16W
R6120 NRSA63J-183X
MG R 18kl1 l/16W
R6121 NRSA63J -4 72X
MG R 4. 7kl1 l/16W
R6122 NRSA63J-682X
MG R 6.8kl1 l/16W
R612S NRSA63J-223X
MG R 22kl1 l/16W
R6126
NRSA63J-183X
MG R 18kl1 1/ 16W
R6128 NRSA63J-103X
MG R
10kl1 1/16W
R6129
NRSA63J-102X
MG R
lkl1 1/16W
R6130 NRSA63J-152X
MG R 1. 5kl1 l/16W
R6131 NRSA63J-222X
MG R 2.2kl1 1/16W
R6132 NRSA63J-332X
MG R 3. 3kl1 1/16W
R6133-34 NRSA63J-561X MG R
56011 l/16W
R6135
NRSA63J-332X
MG R 3. 3kl1 1/16W
R6136
NRSA63J -102X
MG R
lkl1 1/16W
R6137 NRSA63J-472X
MG R 4.7kl11/16W
R6138
NRSA63J-101X
MG R
10011 1/16W
R6139 NRSA63J-S61X
MG R
56011 1/16W
R6140 NRSA63J-101X
MG R 10011 l/16W
R6141 NRSA63J-332X
MG R 3.3kl1 1/16W
R6142 NRSA63J-102X MG R
lk11 l/16W
R6143 NRSA63J-332X
MG R 3.3kl11/16W
No. 51766
45
To Next Page
