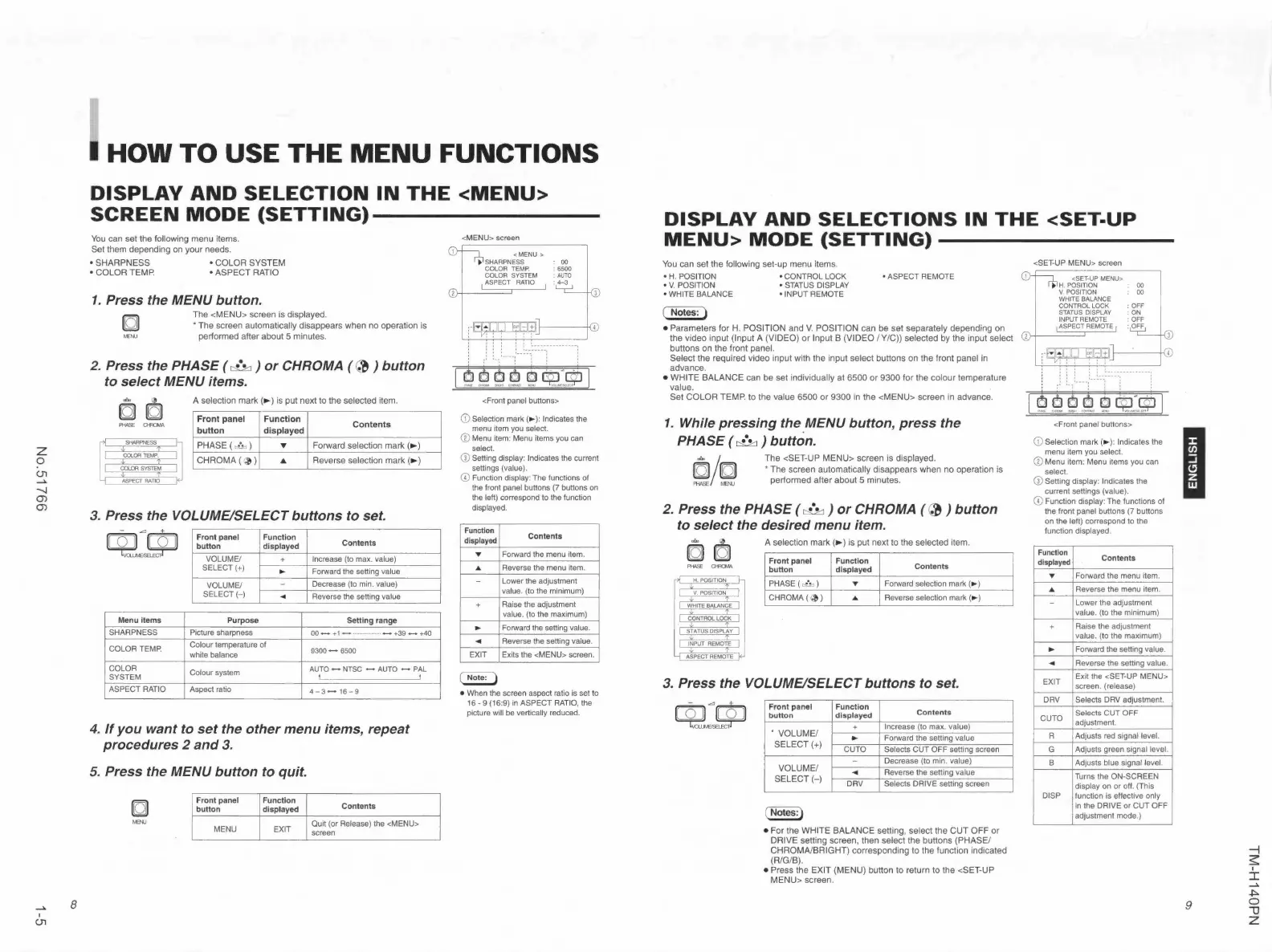

HOW TO USE THE MENU FUNCTIONS
DISPLAY AND SELECTION IN THE <MENU>
SCREEN MODE (SETTING)--------
You can set the following menu items.
Set them depending on your needs.
• SHARPNESS • COLOR SYSTEM
• COLOR TEMP. • ASPECT RATIO
1. Press the MENU button.
The <MENU> screen is displayed.
• The screen automatically disappears when no operation is
performed after about 5 minutes.
2. Press the PHASE ( t:ll:J) or CHROMA (
~
) button
to select MENU items.
A selection mark
(
►
)
is put next to the selected item.
Front panel Function
Contents
button displayed
PHASE (th,)
...
Forward selection mark
(
►
)
CHROMA (i.'b)
•
Reverse selection mark
(
►
)
3. Press the VOLUME/SELECT buttons to set.
11 CZ!Jlj]
Front panel Function
Contents
button
displayed
VOLUME/
+
Increase (to max. value)
SELECT(+)
►
Forward the setting value
VOLUME/
-
Decrease (to min. value)
SELECT(-)
◄
Reverse the setting value
Menu items Purpose
Setting range
SHARPNESS
Picture sharpness
oo-+1-····
·········- +39-+40
COLOR TEMP.
Colour temperature of
9300- 6500
white balance
COLOR
Colour system
AUTO - NTSC - AUTO - PAL
SYSTEM
I I
ASPECT RATIO Aspect ratio
4-3-16-9
4. If you want to set the other menu items, repeat
procedures 2 and 3.
5. Press the MENU button to quit.
Front panel
Function
Contents
button displayed
MENU
EXIT
Quit (or Release) the <MENU>
screen
<MENU> screen
<MENU>
►
SHARPNESS
COLOR TEMP.
COLOR SYSTEM
ASPECT RATIO
<Front panel buttons>
G) Selection
mark(
►
):
Indicates the
menu item you select.
CD Menu item: Menu items you can
select.
G) Setting display: Indicates the current
settings (value).
© Function display: The functions of
the front panel buttons (7 buttons on
the left) correspond to the function
displayed.
Function
Contents
displayed
T Forward the menu item.
...
Reverse the menu item.
-
Lower the adjustment
value. (to the minimum)
+
Raise the adjustment
value. (to the maximum)
►
Forward the setting value.
◄
Reverse the setting value.
EXIT Ex~s the <MENU> screen.
~
• When the screen aspect ratio is set to
16 • 9 (16:9) in ASPECT RATIO, the
picture will be vertically reduced.
DISPLAY AND SELECTIONS IN THE <SET-UP
MENU> MODE (SETTING)
You can set the following set-up menu items.
• H. POSITION • CONTROL LOCK • ASPECT REMOTE
• V. POSITION • STATUS DISPLAY
• WHITE BALANCE • INPUT REMOTE
( Notes:)
• Parameters for H. POSITION and V. POSITION can be set separately depending on
the video input (Input A (VIDEO) or Input B (VIDEO /Y/C)) selected by the input select
2
buttons on the front panel.
Select the required video input with the input select buttons on the front panel in
advance .
• WHITE BALANCE can be set individually at 6500 or 9300 for the colour temperature
value.
Set CO LO R TEMP. to the value 6500 or 9300 in the <MENU> screen in advance.
1. While pressing the MENU button, press the
PHASE ( t:ll:J ) button.
g/g
The <SET -UP MENU> screen is displayed .
• The screen automatically disappears when no operation is
performed after about 5 minutes.
2. Press the PHASE ( ~ ) or CHROMA (
~
) button
to select the desired menu item.
A selection
mark(
►
)
is put next to the selected item .
Front panel Function
Contents
button displayed
PHASE (th,) T
Forward selection mark
(
►
)
CHROMA(i;'b)
•
Reverse selection mark
(
►
)
3. Press the VOLUME/SELECT buttons to set.
Front panel
Function
Contents
button
displayed
• VOLUME/
+
Increase (to max. value)
►
Forward the setting value
SELECT(+)
CUTO Selects CUT OFF setting screen
- Decrease (to min. value)
VOLUME/
◄
Reverse the setting value
SELECT(-)
DRV Selects DRIVE setting screen
( Notes:}
• For the WHITE BALANCE setting , select the CUT OFF or
DRIVE setting screen, then select the buttons (PHASE/
CHROMNBRIGHT) corresponding to the function indicated
(R/G/B).
• Press the EXIT (MENU) button to return to the <SET·UP
MENU> screen .
<SET-UP MENU> screen
<SET-UP MENU>
►
H. POSITION 00
V. POSITION 00
WHITE BALANCE
CONTROL LOCK
STATUS DISPLAY
INPUT REMOTE
ASPECT REMOTE
<Front panel buttons>
G) Selection
mark(
►
):
Indicates the
menu item you select.
CD Menu item: Menu items you can
select.
G) Setting display: Indicates the
current settings (value).
CD Function display: The functions of
the front panel buttons (7 buttons
on the left) correspond to the
function displayed.
Function
Contents
displayed
T Forward the menu item.
... Reverse the menu item.
-
lower the adjustment
value. (to the minimum)
+
Raise the adjustment
value. (to the maximum)
►
Forward the setting value.
◄
Reverse the setting value.
EXIT
Exit the <SET-UP MENU>
screen. (release)
DRV
Selects DRV adjustment.
CUTO
Selects CUT OFF
adjustment.
R
Adjusts red signal level.
G
Adjusts green signal level.
B
Adjusts blue signal level.
Turns the ON-SCREEN
display on or off. (This
DISP function is effective only
in the DRIVE or CUT OFF
adjustment mode.)
I
9
