JVC TM-H140PN User Manual

TM-H140PN

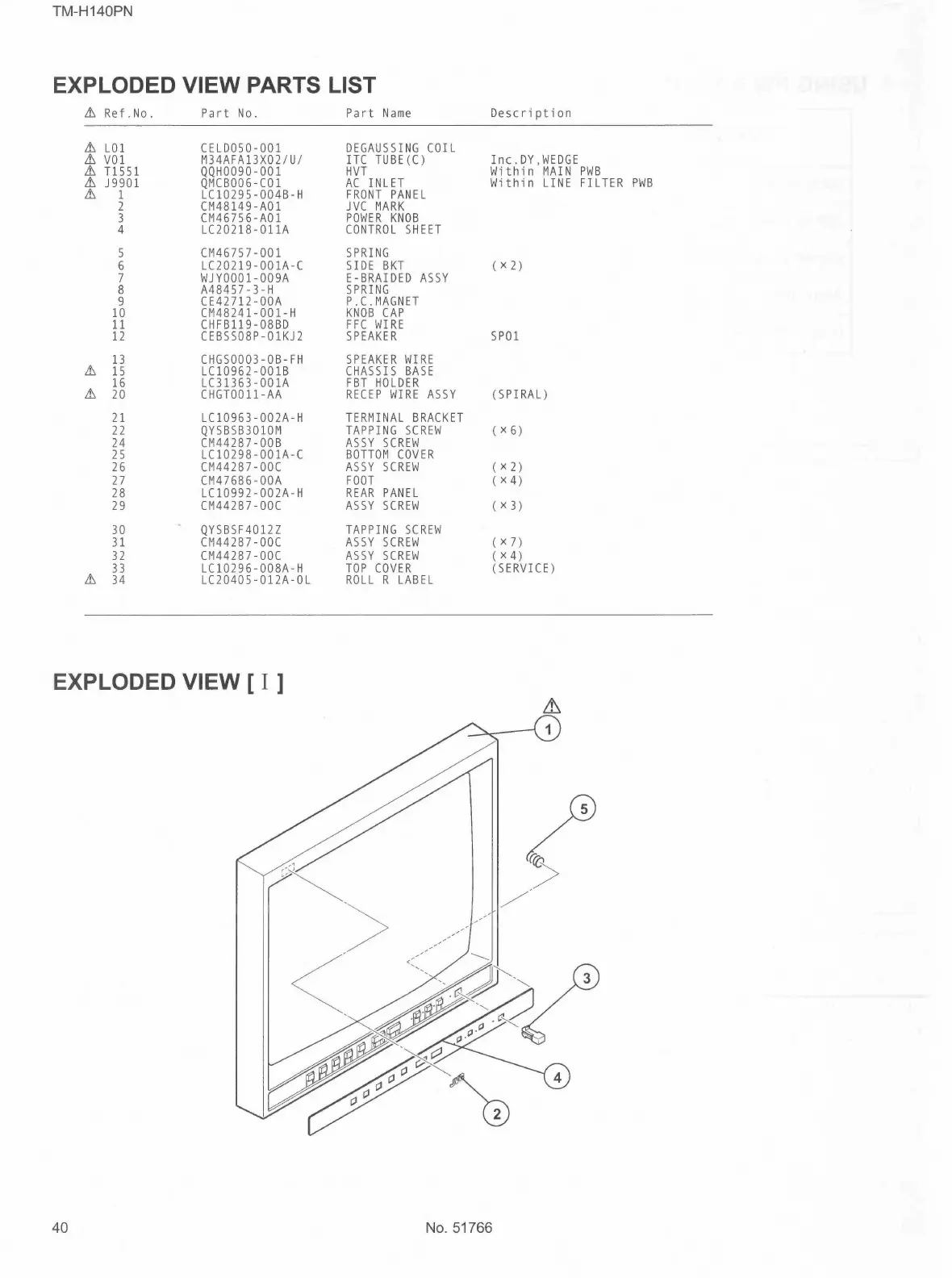

EXPLODED VIEW PARTS LIST
Lt. Ref.No. Part No.
Part Name Description
Lt. LOl CELD050-001
DEGAUSSING COIL
Lt. VO 1
M34AFA13X02/U/ ITC TUBE(C)
Inc.DY.WEDGE
l'.'.t. T1551 QQH0090-001 HVT
Within MAIN PWB
Lt. J9901 QMCB006-C01 AC INLET
Within LINE FILTER PWB
Lt. 1 LC10295-004B-H FRONT PANEL
2 CM48149-A01 JVC MARK
3
CM46756-A01 POWER KNOB
4 LC20218-011A CONTROL SHEET
5
CM46757-001 SPRING
6
LC20219-001A-C SIDE BKT
( X 2)
7 WJY0001-009A
E-BRAIDED ASSY
8 A48457-3-H
SPRING
9 CE42712-00A
P.C.MAGNET
10 CM48241-001-H
KNOB CAP
11 CHFB119-08BD
F FC WIRE
12 CEBSS08P-01KJ2
SPEAKER SPOl
13
CHGS0003-0B-FH SPEAKER WIRE
Lt. 15 LC10962-001B CHASSIS BASE
16 LC31363-001A FBT HOLDER
Lt. 20 CHGTOOll-AA RECEP WIRE ASSY
(SPIRAL)
21 LC10963-002A-H TERMINAL BRACKET
22
QYSBSB3010M TAPPING SCREW
( X 6)
24
CM44287-00B ASSY SCREW
25 LC10298-001A-C
BOTTOM COVER
26
CM44287-00C ASSY SCREW
( X 2)
27 CM47686-00A FOOT
( X 4)
28 LC10992-002A-H REAR PANEL
29 CM44287-00C
ASSY SCREW
( X3)
30
QYSBSF4012Z TAPPING SCREW
31 CM44287-00C ASSY SCREW
( X 7)
32 CM44287-00C
ASSY SCREW
( X 4)
33 LC10296-008A-H
TOP COVER (SERVICE)
Lt. 34
LC20405-012A-OL ROLL R LABEL
EXPLODED VIEW [ I ]
40 No. 51766
