Specifications
Amplifier section
Output Power:
40 W (20 W + 20 W) at 4
Ω
(10% THD)
Audio Input AUX: 400 mV/50 k
Ω
Digital output: DVD OPTICAL DIGITAL OUT:
–21 dBm to –15 dBm (660 nm ±30 nm)
Video output:
Color system: NTSC/PAL selectable
VIDEO (composite): 1 V(p-p)/75
Ω
S-VIDEO: Y (luminance) 1 V(p-p)/75
Ω
C (chrominance, burst) 0.286 V(p-p)/75
Ω
COMPONENT: (Y) 1 V(p-p)/75
Ω
(P
B
/P
R
) 0.7 V(p-p)/75
Ω
Speakers/Impedance: 4
Ω
– 16
Ω
Tuner section
FM tuning range: 87.50 MHz – 108.00 MHz
AM (MW) tuning range: 522 kHz – 1 629 kHz
Tape section
Frequency response: 60 Hz – 14 000 Hz
Wow and flutter: 0.15% (WRMS)
Disc player section
Playable disc: DVD Video/DVD Audio
CD/VCD/SVCD
CD-R/CD-RW (CD/SVCD/VCD/MP3/
WMA/JPEG format)
DVD-R/DVD-RW (Video format)
Dynamic range: 90 dB
Horizontal resolution: 500 lines
Wow and flutter: Immeasurable
Speakers
Speaker units: Full-range: 10 cm cone x 1
Impedance: 4
Ω
Dimensions (approx.): 145 mm x 230 mm x 191 mm
(W/H/D)
Mass (approx.): 1.8 kg each
Supplied Accessories
See page 3.
General
Power requirement: AC 240 V , 50 Hz
Power consumption: 65 W (at operation)
1.5 W (on standby)
Dimensions (approx.): 170 mm x 230 mm x 311 mm
(W/H/D)
Mass (approx.): 4.8 kg

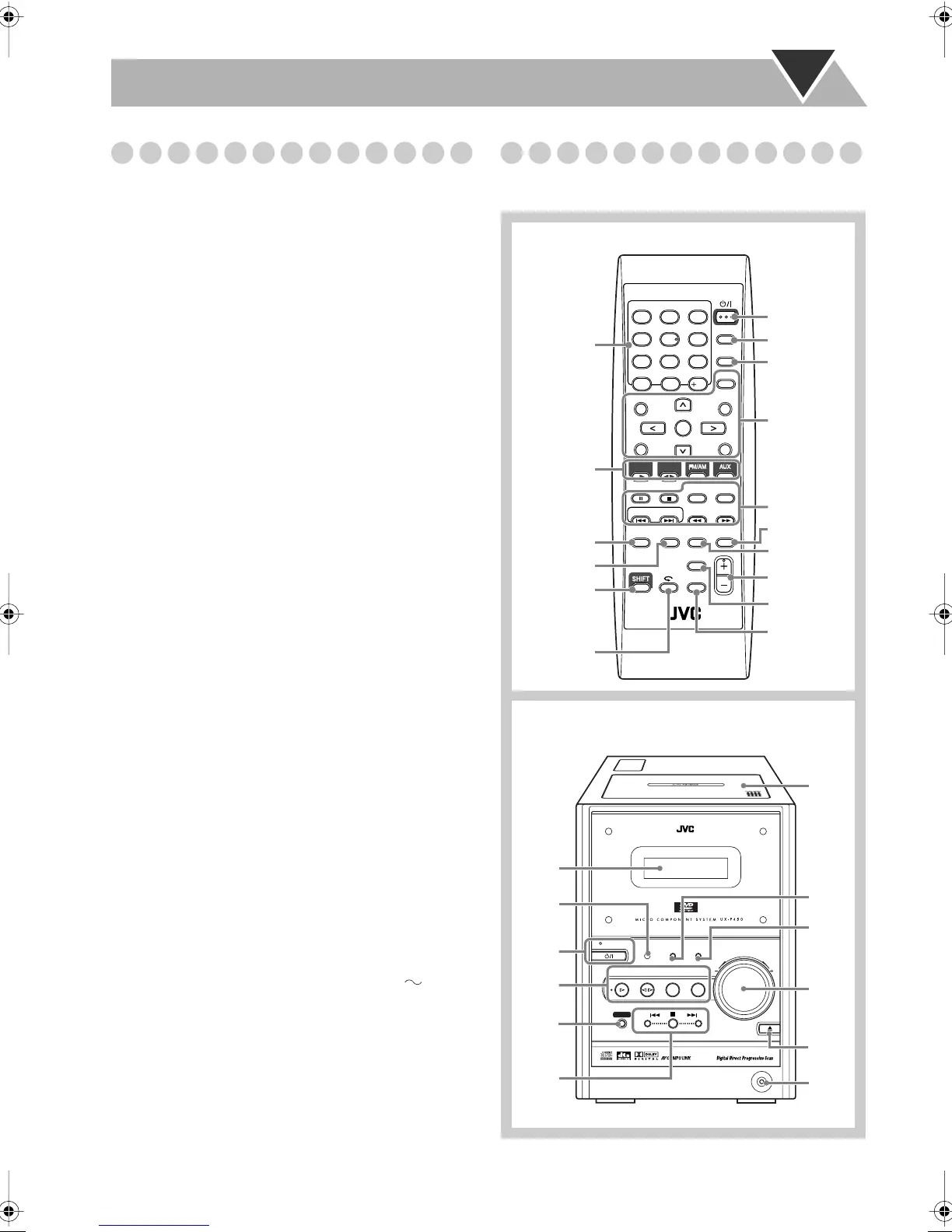

Parts Index
Refer to the pages to see how to use the buttons and controls.
TAPE
SLEEP
A.STANDBY
CLOCK/
TIMER
FADE
MUTING
PLAY
MODE
GROUP/TITLE
AUDIO ANGLE
SUB TITLE
ZOOM
REV. MODE
VFP
FM MODE
DVD LEVEL
REPEAT
REPEAT A-B
BASS/
TREBLE
3D
PHONIC
RHYTHM AX
SET
TOP MENU
ON SCREEN
ENTER
PROGRESSIVE
CANCEL
MENU
SET UP
RETURN
DISPLAY
VOLUME
1
4
7
10 0
2
5
8
3
6
9
10
RM-SUXP450U REMOTE CONTROL
DIMMER
STANDBY/ON
DVD/CD
SLOW
SLOW
+
–
STANDBY/ON
3D
PHONIC
RHYTHM AX
TAPE
DOWN
UP
PHONES
DVD/CD
FM/AM AUX
VOLUME
REC
Remote control
Main unit
11, 12, 13,
16, 18–21,
26, 37
10, 13, 22, 28
14
9, 17
17
17, 31
14, 20,
25–31, 33
15
10, 15
16
8
Remote
sensor
10
10–13,
22, 28
30
11, 13
14
15
10, 15
10
10
20
11, 16–20,
23
11, 13,
20–23, 28
13, 23
