Step
3
: Hook Up
If you need more detailed information, see page 6.
TV
AUX
DECODER
AUDIO OUT
PB
PR
Y
OPTICAL
DIGITAL IN
AV
COMPU LINK
VIDEO INPUT
VIDEO INPUT
VIDEO INPUT

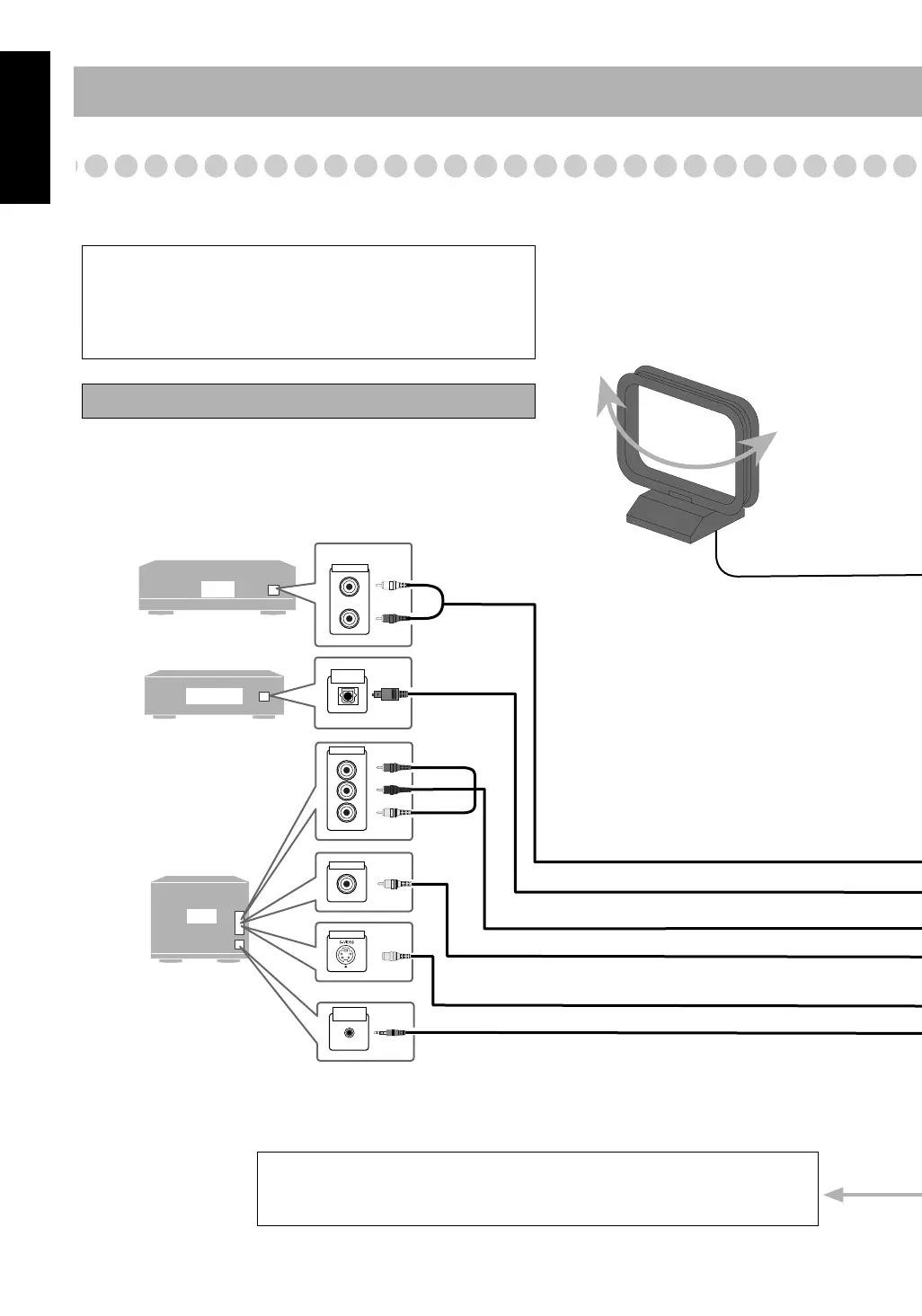

Illustrations of the input/output terminals below are typical
examples.
When you connect other components, refer also to their
manuals since the terminal names actually printed on the rear
may vary.
Turn the power off to all components before connections.
Audio cord (not supplied)
VCR, etc.
White
Red
Optical digital cord (not supplied)
Component video cord (not supplied)
Red
Blue
Green
Composite video cord (supplied)
AM loop antenna (supplied)
Turn it until the best reception is
obtained.
To a wall outlet
Plug the AC power cord only after all connections are complete.
• If the wall outlet does not match the AC plug, use the supplied AC plug adaptor.
S-VIDEO cord (not supplied)
Yellow
AV COMPU LINK cord (not supplied)
(cord with monaural mini plug)
• For details, see “To connect the AV
COMPU LINK cords” on page 7.
