Additional information
Names of parts and controls
Refer to the corresponding pages indicated in () for details.

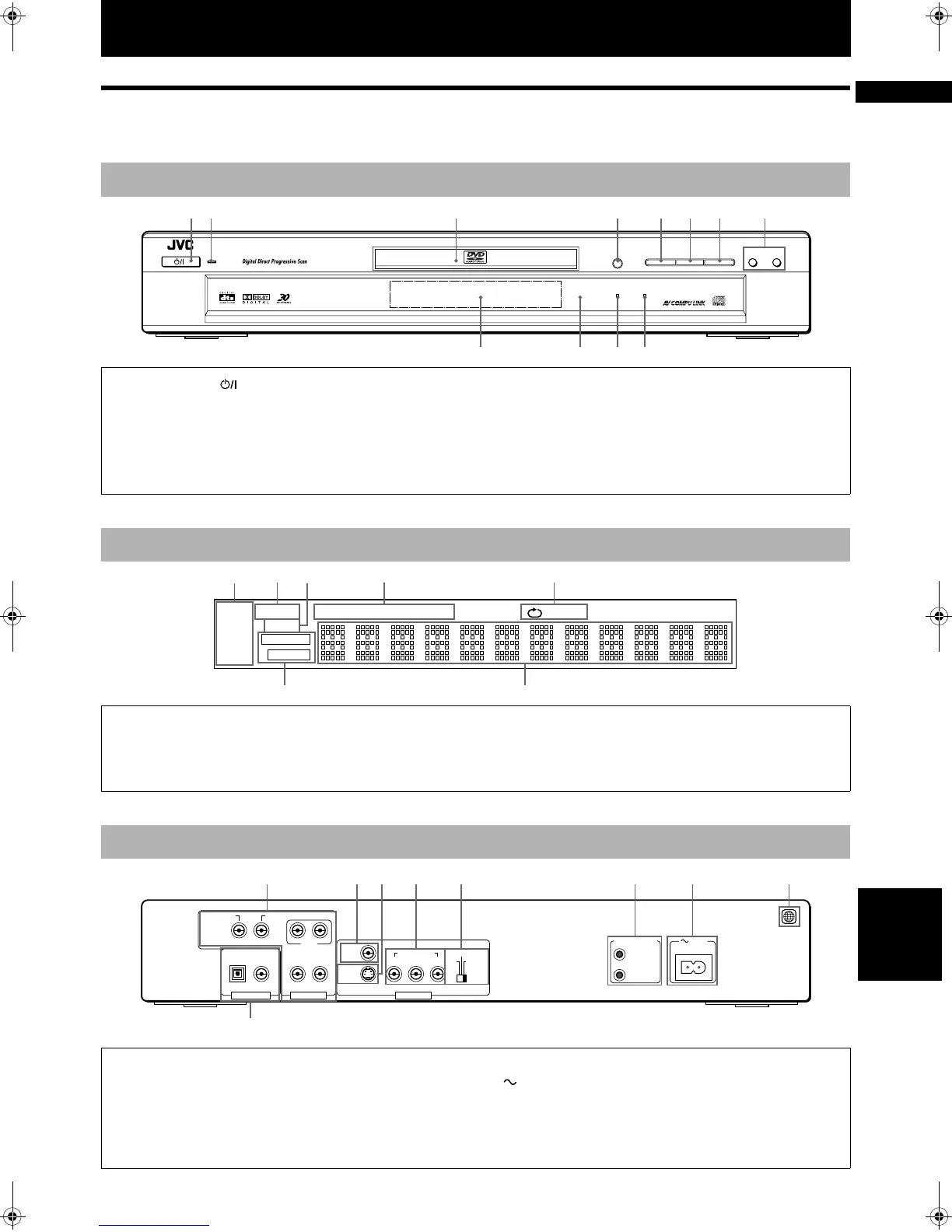

Front panel
1 STANDBY/ON button (14)
2 STANDBY/ON indicator (11, 14)
3 Disc tray (17, 19, 20)
4 0 OPEN/CLOSE button (17, 19, 20)
5 7 STOP button (18, 19, 47)
6 3 PLAY button (18, 20)
7 8 PAUSE button (18, 21)
8 4/¢ SKIP buttons (21, 22)
9 Display windows (see the illustration below)
0 Remote sensor (12)
- PROGRESSIVE indicator (7, 8, 59)
= DVD AUDIO indicator (17)
Display window
1 Audio format indicators
2 Disc indicator
3 3 (play)/8 (pause) indicators
4 Group/title/track/chapter indicators
5 Repeat mode indicators (33, 49, 55)
6 PROGRAM/RANDOM indicators (31, 33)
7 Multi-information window
Rear panel
1 AUDIO OUT jacks (RIGHT/LEFT/SUBWOOFER/
CENTER/REAR RIGHT/REAR LEFT) (6, 7, 9, 10)
2 VIDEO OUT - VIDEO jack (6)
3 VIDEO OUT - S-VIDEO jack (6)
4 VIDEO OUT - COMPONENT jacks (Y/P
B/PR) (7)
5 Scanning mode selector (480i/480p/REMOTE) (6, 7, 8)
6 AV COMPU LINK jacks (71)
7 AC IN connector (11)
8 Region code label (4)
9 DIGITAL OUT jacks (OPTICAL/COAXIAL) (10)
