Page 6 Operating Instructions Powador 2500xi / 3600xi / 4000xi / 4500xi / 5000xi_EN
Contact your specialty dealer or installer if your unit exhibits a
defect or fault during the warranty period.
Warranty claims are excluded in the following cases:
– Use of the units in ways not intended
– Improper installation and installation that does not comply
with standards
– Improper operation
– Operation of units with defective protective equipment
– Unauthorised modifi cations to the units or repair attempts
– Infl uence of foreign objects and force majeure (lightning,
overvoltage, severe weather, fi re)
– Insuffi cient ventilation of the unit
– Failure to observe the relevant safety regulations
– Transport damage.
All warranty claims must be handled at the premises of KACO
new energy GmbH. The unit must, where possible, be returned
in its original or equivalent packaging. The costs for these
services cannot be borne by KACO new energy GmbH.
KACO new energy GmbH will only perform warranty services
if the defective unit is returned to KACO new energy GmbH
together with a copy of the invoice which was issued to the
user by the dealer. The name plate on the unit must be fully
legible. If these requirements are not fulfi lled, KACO new
energy GmbH reserves the right to deny warranty services.
The warranty period for repairs or replacement deliveries is six
months after delivery. However, it continues at least until the
end of the original warranty period for the delivery item.
3.3 Service
We place special emphasis on the quality and longevity of our
inverters, starting with the product development phase. More
than 60 years of experience in the fi eld of current inverters
support us in this philosophy.
However, despite all quality assurance measures, faults may
occur in exceptional cases. In such cases, KACO new energy
GmbH will provide you with the maximum possible support.
KACO new energy GmbH will make every effort to remedy
such faults in an expeditious manner and without a great deal
of bureaucracy. In such cases, contact our service department
directly by telephone at
+49 (0)7132-3818-660
4 Operation
The grid feed process begins in the morning when suffi cient
light is available, and, therefore, when a certain minimum
voltage is present at the inverter. The inverter enables grid
feed after a country-specifi c start-up time (see Installation
Manual, section 4, “Technical Data”).
If, as nightfall approaches, the voltage drops below the
minimum voltage, the grid feed mode ends and the inverter
switches off.
4.1 Overview of controls and displays

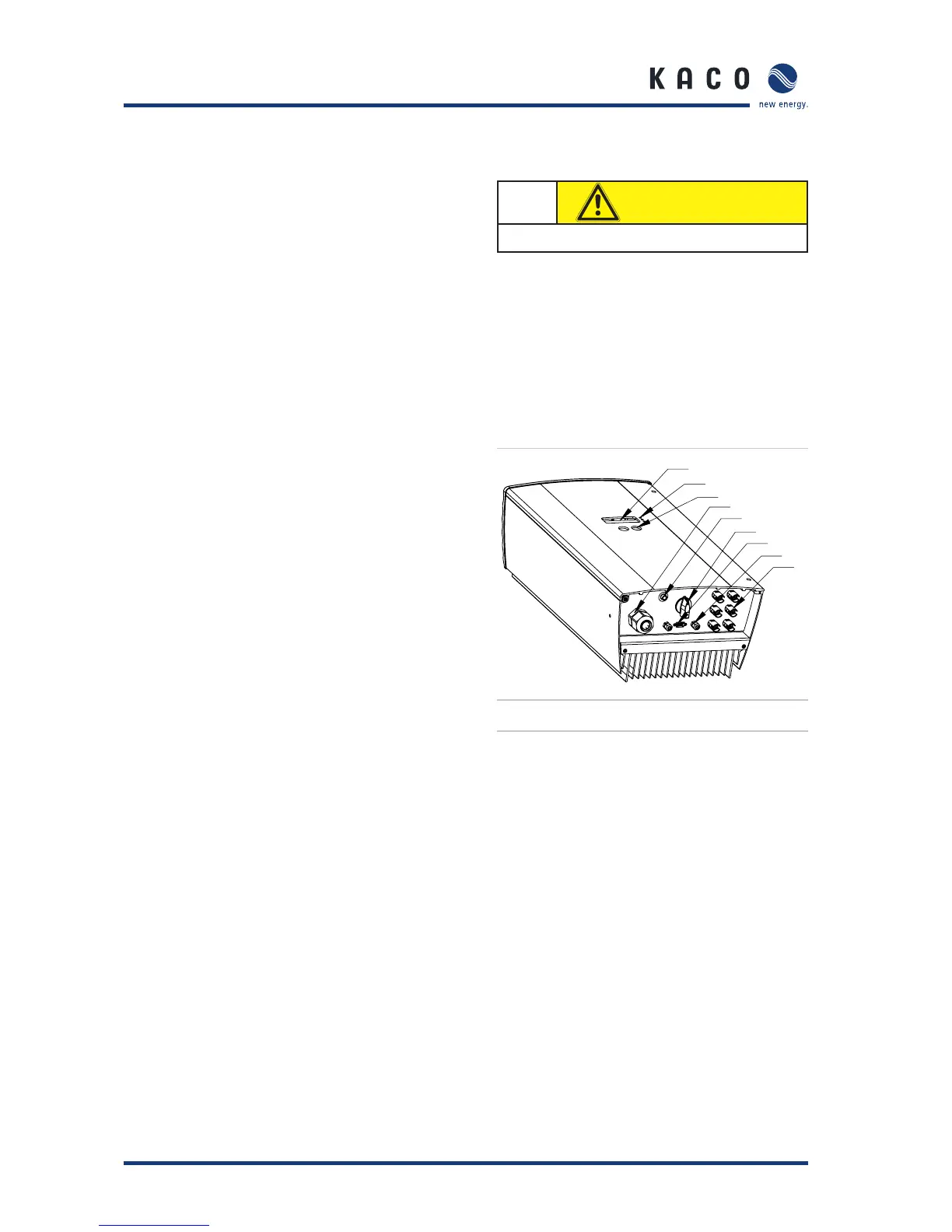

Figure 4.1: Overview of the Powador
Legend
1 Display
Displays measured values and confi guration
parameters
2 LED displays
Display the operating status
3 Control keys
Switch between the display and confi guration
of parameters
4 Cable fi tting for AC connection
5 Night start-up button
For activating the display after nightfall
6 DC disconnector
7 RS232 interface
8 Cable feedthrough for RS485 interface cable
9 Cable feedthrough for DC connection
4.2 LED displays
During normal operation, the photovoltaic modules generate
voltage as soon as the insolation is suffi cient. If this voltage is
present in the inverter at a certain level for a certain time, the
inverter begins to feed into the grid.
The inverter is equipped with three LEDs, which give informa-
tion about the various operating statuses as follows.
Section 3 · Notes on Installation and Operation
Section 4 · Operation
3
2
1
6
7
9
8
5
4
CAUTION
Incorrect use is prohibited.
