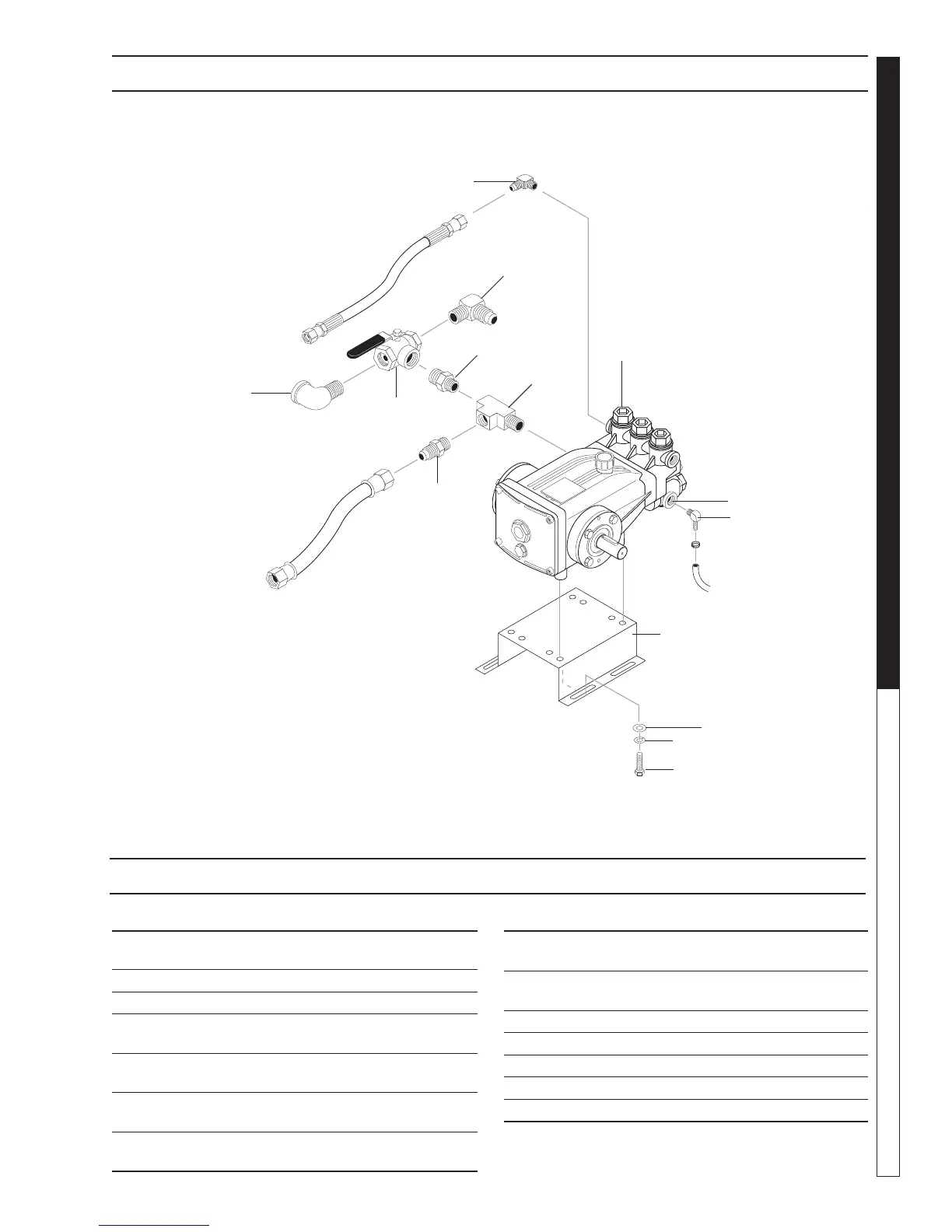

PUMP ASSEMBLY
PUMP ASSEMBLY PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 9.802-039.0 Elbow, 1/2" JIC x 3/8",
90° Pipe 1
2 8.706-832.0 Elbow, 3/4" Street 1
3 8-706-860.0 Tee, 1/2" Street 1
4 9.802-128.0 Nipple, 1/2" JIC x 1/2"
MPT Pipe 1
5 8.706-881.0 Nipple, 3/4" Pipe x 1/2"
Pipe 1
6 9.803-557.0 Elbow, 3/8" SAE x 3/4",
90° 1
7 8.706-915.0 Bushing, 1/2" x 1/4",
Brass 1
6
1
2
9
5
3
10
4
11
7
8
ITEM PART NO. DESCRIPTION QTY
8 8.706-958.0 Hose Barb,
1/4" Barb x 1/4" Pipe, 90° 1
9 9.803-558.0 Valve, 3/4" Ball, Brass,
3-Way 1
10 Pump, Please See Specifi cations Pages
11 9.803-503.0 Rail, Pump 1
12 9.802-744.0 Bolt, 10mm x 20mm, Zinc 4
13 8.718-961.0 Washer, M10, Split Zinc 4
14 9.802-807.0 Washer, 3/8" Flat Zinc 4
14
12
13
