9.800-103.0 - M • Karcher HDS 615-617
7
PRESSURE WASHER
OPERATOR’S MAN U AL

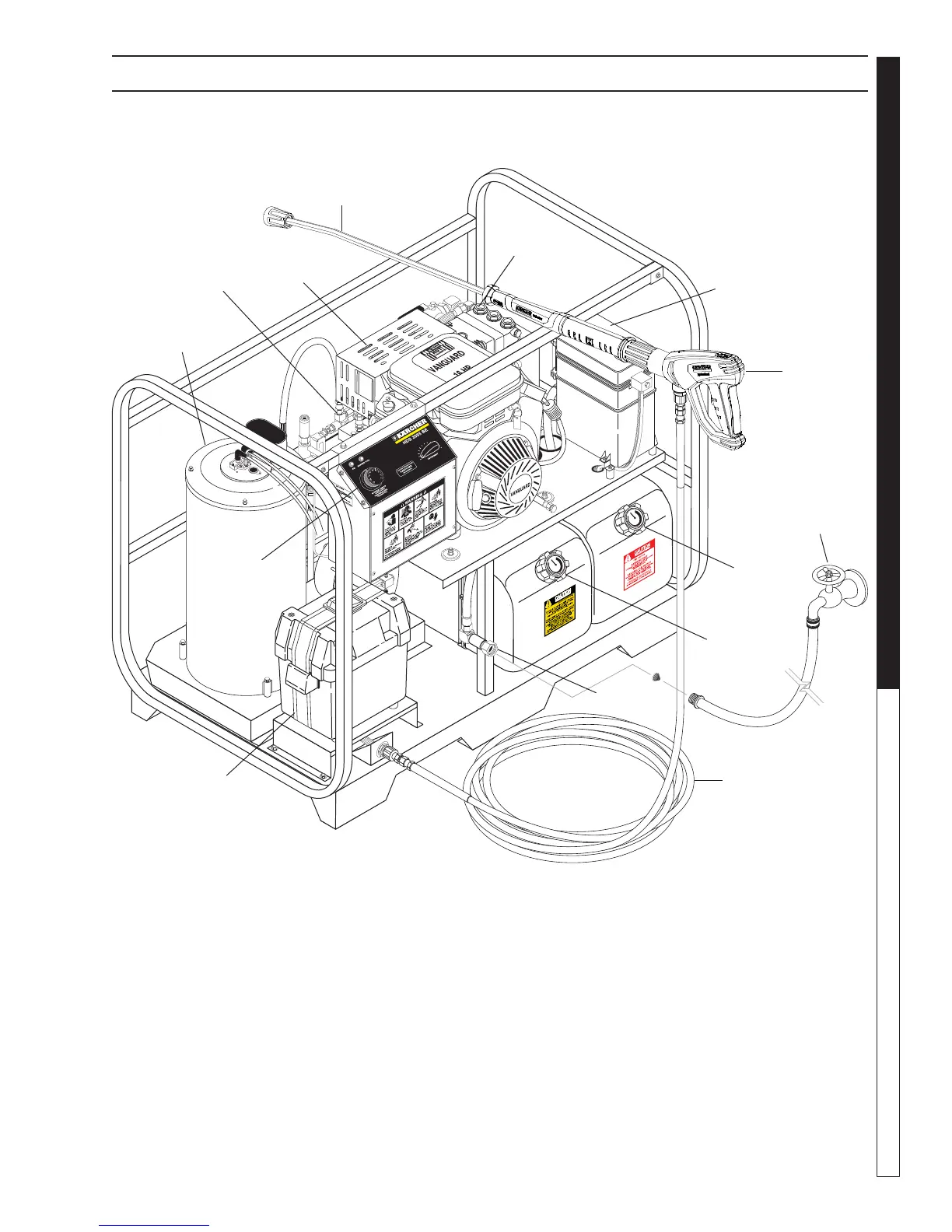

COMPONENT IDENTIFICATION
Pump — Delivers a specifi c gpm to the high pressure
nozzle which develops pressure.
Spray Gun — Controls the application of water and
de ter gent onto cleaning surface with trigger device.
In cludes safe ty latch.
Unloader Valve— Safety device which allows pres-
sure to be released when spray gun is closed.
High Pressure Hose — Connect one end to
water pump dis charge nipple and the other end to
spray gun.
Adjustable Thermostat — Safety control which
pre vents temperatures from going above adjustable
set ting.
Wand — Must be connected to the spray gun.
NOTE: If trigger on spray gun is released for more than
2 minutes, water will leak from valve. Warm water will
dis charge from pump protector onto fl oor. This sys tem
pre vents internal pump dam age.
High
Pressure
Hose
Water Supply
(Not Included)
Engine Fuel
Tank
Burner Fuel
Tank
Engine
Wand
Burner
Battery Box
Water Inlet
Adjustable
Thermostat
Unloader
Valve
Pump
Float Tank
Spray Gun
To Next Page
