Operating instructions KM 100/100 R D English
34

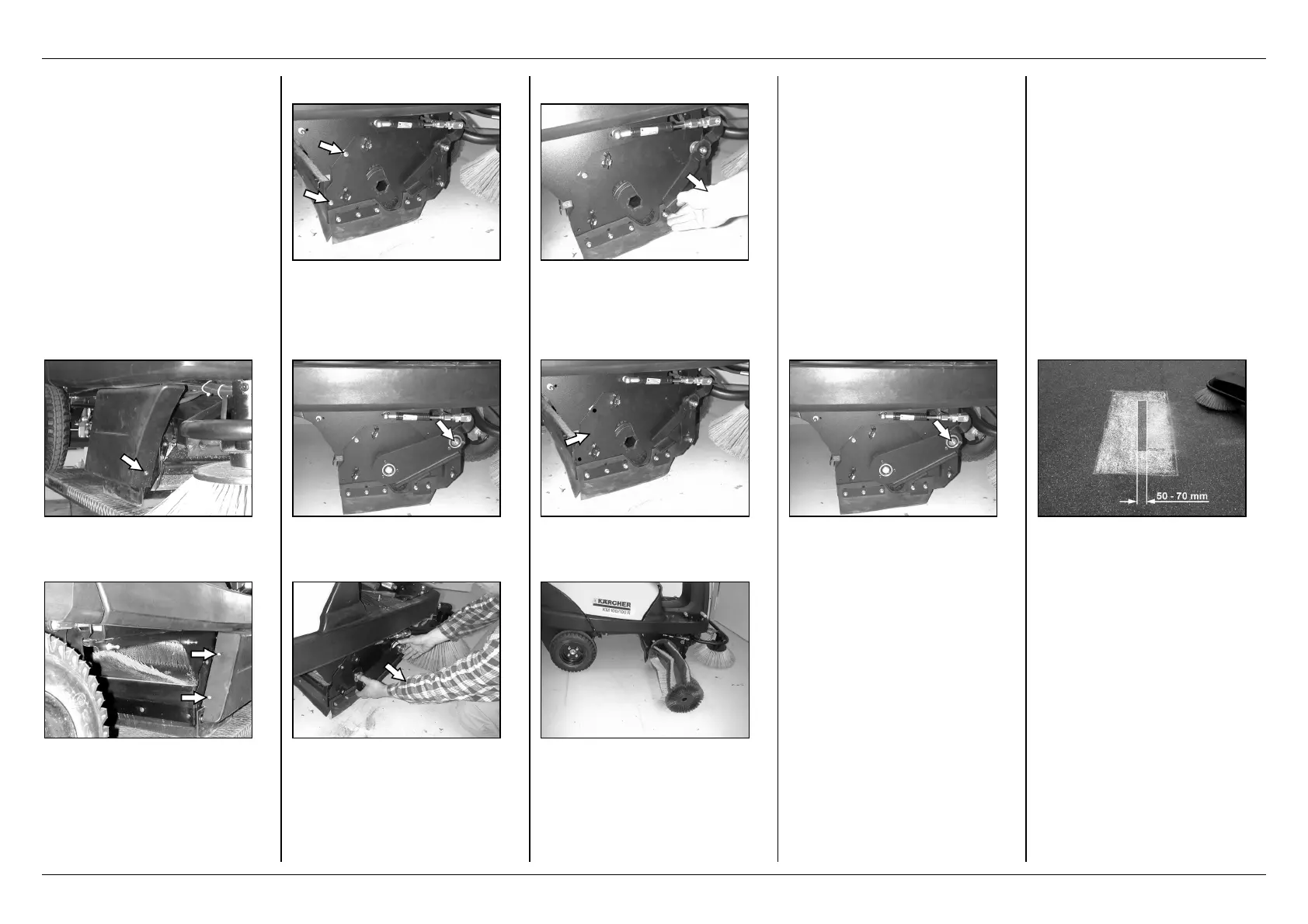

Replace the sweep roller
— Replacing it is necessary when
the sweeping effect visibly
deteriorates due to wear of the
bristles.
! Stand sweeper on a flat surface
! Raise the sweep roller
! Turn ignition key to "0" and
remove it
! Secure the machine against
rolling away using a wedge
! Remove the debris container
from both sides of the unit
! Unscrew front screw of right side
panellint
! Unscrew rear screws of right side
panelling
! Unscrew screws
! Screw out screw at main brush
bracket
! Remove bracket of main brush
pivoting arm
! Remove lifting rod from peg
! Lift off cover and remove main
brush
! Push main brush into main brush
box and position it onto the
driving peg
Note:
Pay attention to the position of the
bristle set when installing the new
main brush!
! Mount main brush cover
! Slide lifting linkage onto peg
! Slide main brush bracket onto
peg
! Retighten screw at the main
brush bracket
! Fit and tighten fastening screws
of main brush cover
! Screw on side panelling
! Insert the swept material
container
Check sweeping pattern of
the main brush
! Raise the sweep roller
! Raise the side broom
! Drive the sweeper on a flat and
smooth floor noticeably covered
with dust or chalk
! Lower the main brush and rotate
it briefly
! Raise the sweep roller
! Depress pedal to raise the
coarse-dirt flap and keep it
depressed
! Back the machine away
The form of the sweeping pattern
forms a regular rectangle, that is
between 50 - 70 mm wide.
Note:
— Due to the floating suspension of
the main brush The sweeping
pattern automatically adapts itself
to wear of the bristles.
— The main brush must be replaced
when the bristles are too worn.
