Operating instructions KM 100/100 R D English
36

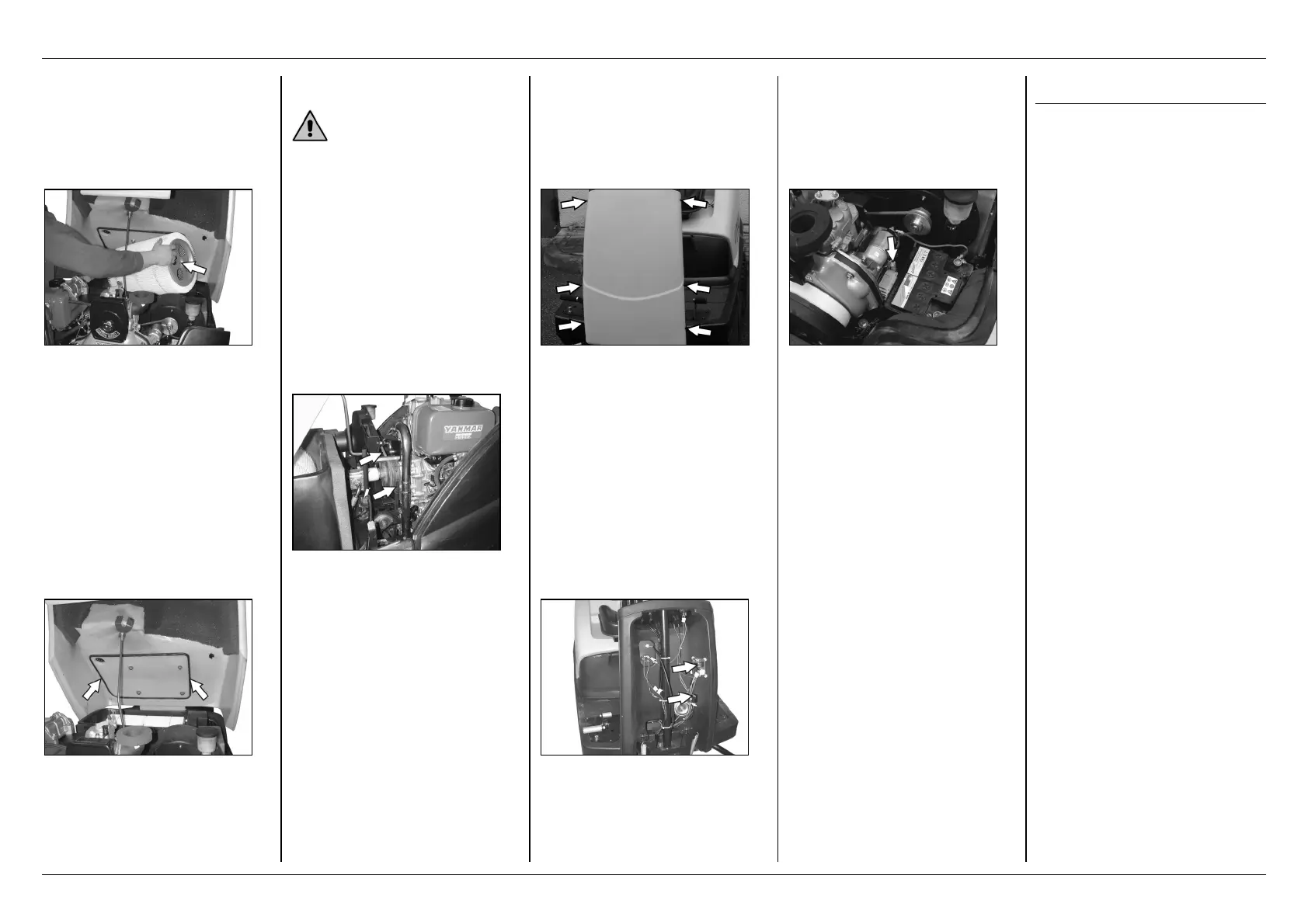

! On the drive side, engage the
carrier into the holes
! Re-engage the handle of filter
dedusting
Note:
Make sure when mounting the new
filter that the lamella are not
damaged
Replacing the filter box
seal
Remove filter box seal from the
groove in the unit cover and insert
the new seal
Checking traction belt
Danger!
The engine takes approx. 3...4 s to
run down after being shut off.
Never enter operating area during
this period!
! Turn ignition key to "0" and
remove it
! Open unit cover, engage stay bar
Check round belts and V-belts for
tightness, wear and damage
Changing fuses
The drive control electronics are
beneath the front covering. The fuse
for the electric starter is in the
engine compartment
The front covering must be removed
or the unit cover opened when a
fuse has to be replaced.
Drive control/electronics fuses
! Unscrew the screws at both sides
of the covering
Note:
— See interior for fuse allocation
— Use only fuses with the same
current rating
! Replacing blown fuses
! Refasten front covering
Electric starter fuse in the engine
compartment
! Open unit cover
! Replacing blown fuses
! Close unit cover
Fault instructions
Machine will not start
! Sit on the driver seat
! Fill fuel tank
! Check fuse of electric starter,
replace if necessary
! Charge the battery
! Notify the Kärcher service station
Engine runs erratically
! Clean or replace the air cleaner
! Check fuel feed
! Notify the Kärcher service station
Motor running but machine not
moving
! Check position of freewheel lever
! Notify the Kärcher service station
Engine runs, but machine only
moves slowly
! Warm up the machine for
approx. 3 min. at temperatures
below zero
! Notify the Kärcher service station
Machine not sweeping properly
! Check main brush and side brush
for wear, replace them, if
necessary
! Check the operation of the
coarse-dirt flap
! Check sealing strips for wear,
adjust or replace them as
required
! Check (sweeping) hydraulic
system for leaks
! Check the seal on the vacuum
system
! Notify the Kärcher service station
