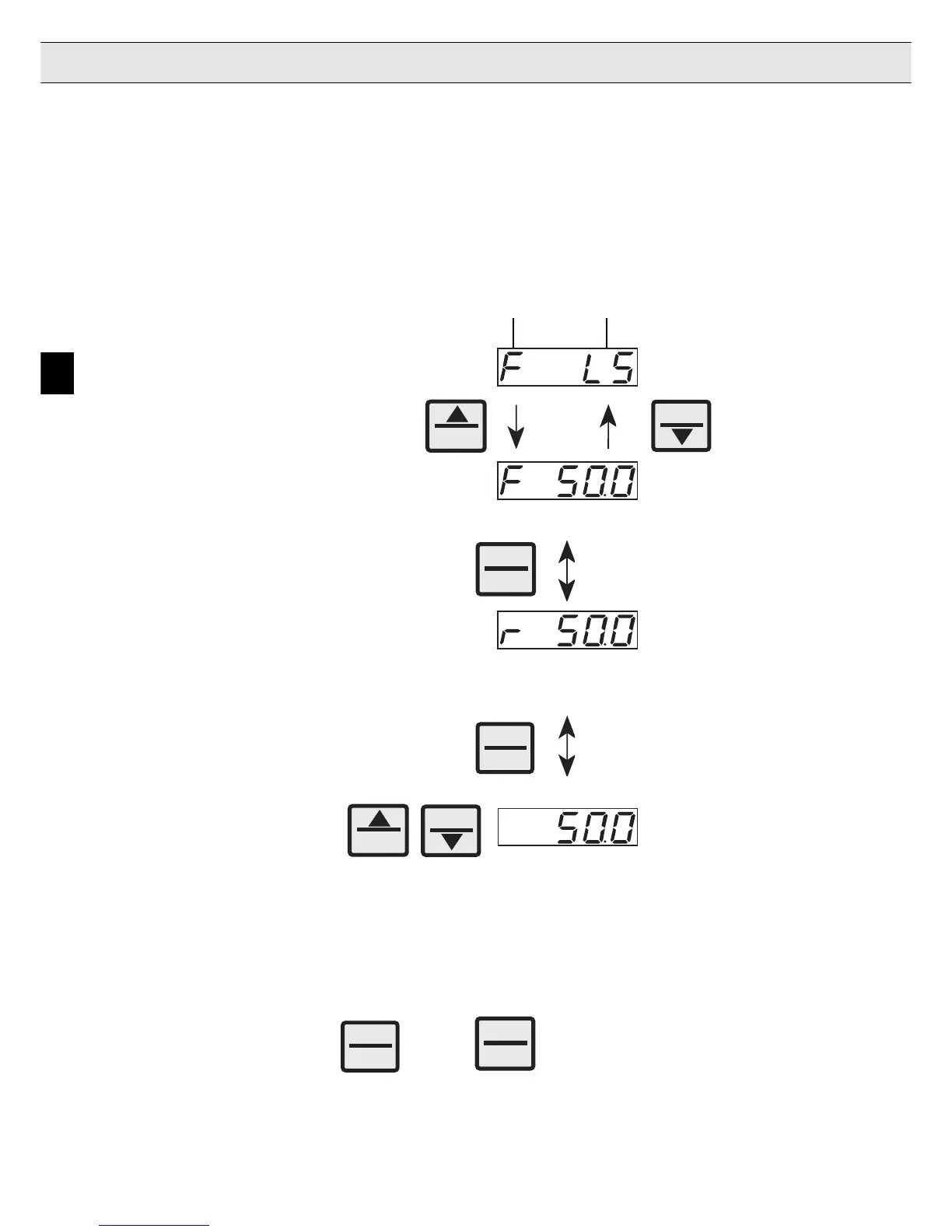

4.7 The Drive Mode The drive mode is a operating mode of KEB COMBIVERT to start the
drive manually by the operator. After switching the control release the set
value and rotation presetting is done exclusively by the keyboard. In order
to activate the drive mode the corresponding password in CP.0 must be
entered. The display switches over as follows.
Direction of rotation
F=forward / r=reverse
Status
noP = no control release /
LS = neutral position
Set value can be changed
with UP/DOWN at pressed
FUNC/SPEED key
4.7.1 Start / Stop Drive
4.7.2Change Direction
of Rotation
STOP
START
ENTER
F/R
To exit the drive mode the inverter must be in status “stop” (Display noP
or LS). Press the FUNC and ENTER keys simultaneously for about 3
seconds in order to leave the drive mode. The CP-parameters appear in
the display.
4.7.4 Leave Drive Mode
Drive mode
START
STOP
Modulation blocked
Drive not controlled
Drive decreases to 0 Hz and
switches the modulation off
Drive accelerates onto
the adjusted set value
Drive operates with
adjusted set value
Drive changes direction
of rotation
FUNC.
SPEED
+
ENTER
F/R
for 3 seconds
FUNC.
SPEED
Display changes when key is
pressed to set value display/
presetting
4.7.3 Preset Set Value
