28
GB
Power Circuit
Installation height max.
2000 m. At installation
heights over 1000 m a
power reduction of 1% per 100m
must be taken into con-
sideration.
C / C1
B
H
G
A
B2B1 B3
Ø F
Size A B B1 B2 B3 C C1 F G H H1 Weight [kG]
C 90 230 264 260 300 115 165 5 45 220 240 1,5
B1/C1/H1 with submounted filter
B2 with screening plate
B3 with submounted filter and screening plate

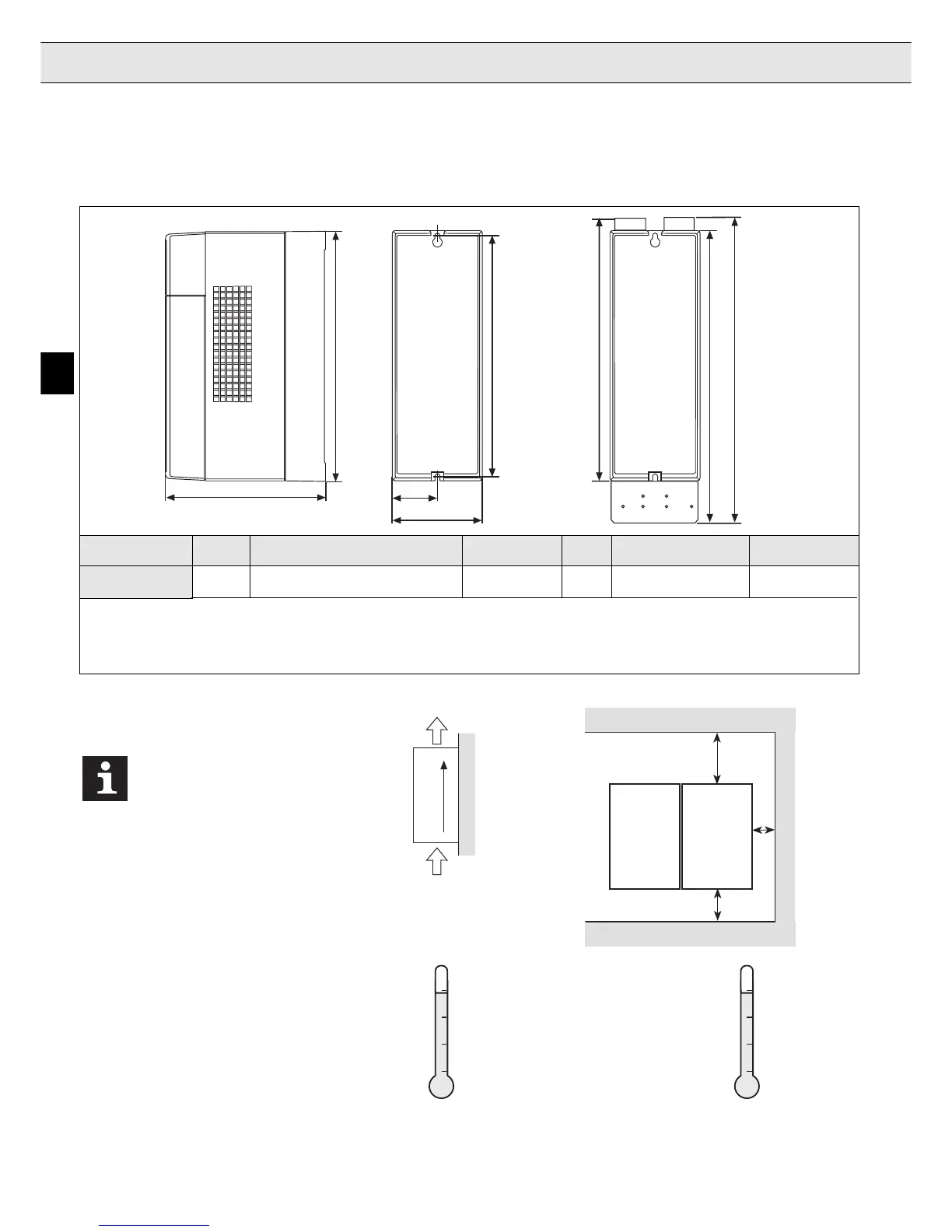

2.2 Dimensions
2.4 Installation
Instructions
30
150
100
F4 F4
max +45°C
min -10°C
Always install vertically!
Cooling agent inlet
temperature/
ambient temperature
during operation
max +70°C
min -25°C
Direction of the cooling fins
minimum clearance in mm
Transport-/
Storage
temperature
