Proper connection of the supply to the DUT
WARNING
When installing a unit into a test system, make sure the external power
sources do not apply voltage to the power supply in excess of its maximum
limits (see specifications). Failure to do so could result in personal injury or
death.
WARNING
The power cord supplied with the Model 2306 contains a separate ground
for use with grounded outlets. When proper connections are made,
instrument chassis is connected to power line ground through the ground
wire in the power cord. Failure to use a grounded outlet may result in
personal injury or death due to electric shock.
Figure 2 shows a rear panel view of the Models 2306 and 2306-PJ detailing the connector
sockets for the battery channel “OUTPUT #1” and the charger channel “OUTPUT #2.” Figure 3
shows the rear panel of the Model 2306-VS. The Model 2306 does not have an internal local
sense connection. Therefore, the operator must connect the DUT to the supply in either a remote
or local sense configuration as illustrated. For a 4-wire remote sense application, the sense inputs
to the supply must be connected at load as close to the inputs of the load as possible through
twisted pair leads as shown in Figure 4.

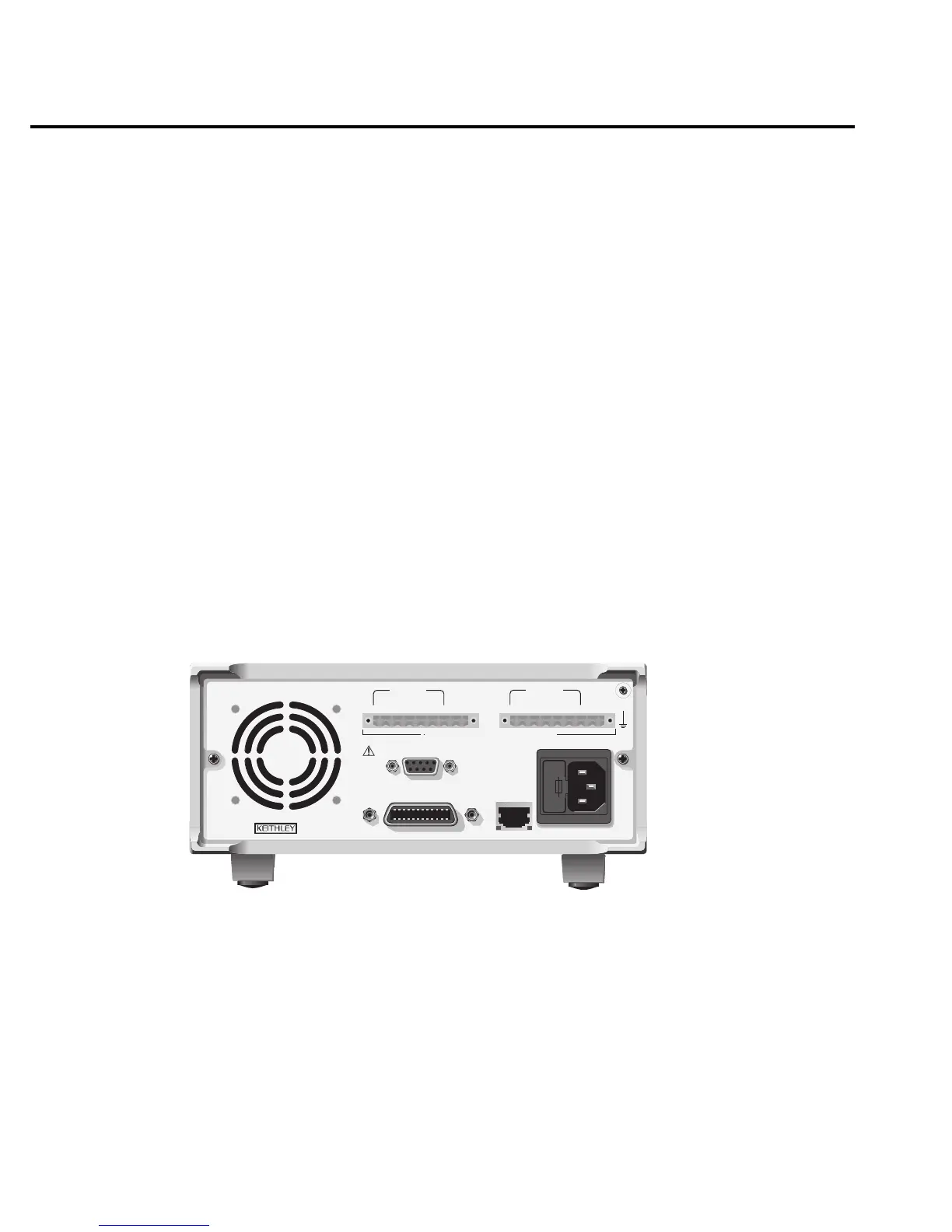

Figure 2
Rear panel view of Model 2306 and 2306-PJ
WARNING:
NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING:
NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN
U.S.A.
LINE RATING
100-120VAC, 200-240VAC
50, 60 HZ 150VA MAX.
LINE FUSE
SLOWBLOW
2.0A, 250V
IEEE-488
(ENTER IEEE ADDRESS
FROM FRONT PANEL MENU)
REMOTE
DISPLAY
OPTION
+++
____
+
SOURCE SENSE
DVM IN
SOURCE
OUTPUT #1
ISOLATION FROM EARTH: 22 VOLTS MAX.
RELAY
CONTROL
24VDC MAX.
+++
____
+
SOURCE SENSE
DVM IN
SOURCE
OUTPUT #2
DVM IN
+30 VDC MAX.
CAT
I
