6 Front panel operation

Failure to connect the sense leads in this fashion will

severely

compromise the performance

of Model 2306 with dynamic loads. Figure 5 illustrates the proper connection of the supply to

the DUT using a 2-wire local sense conﬁguration.

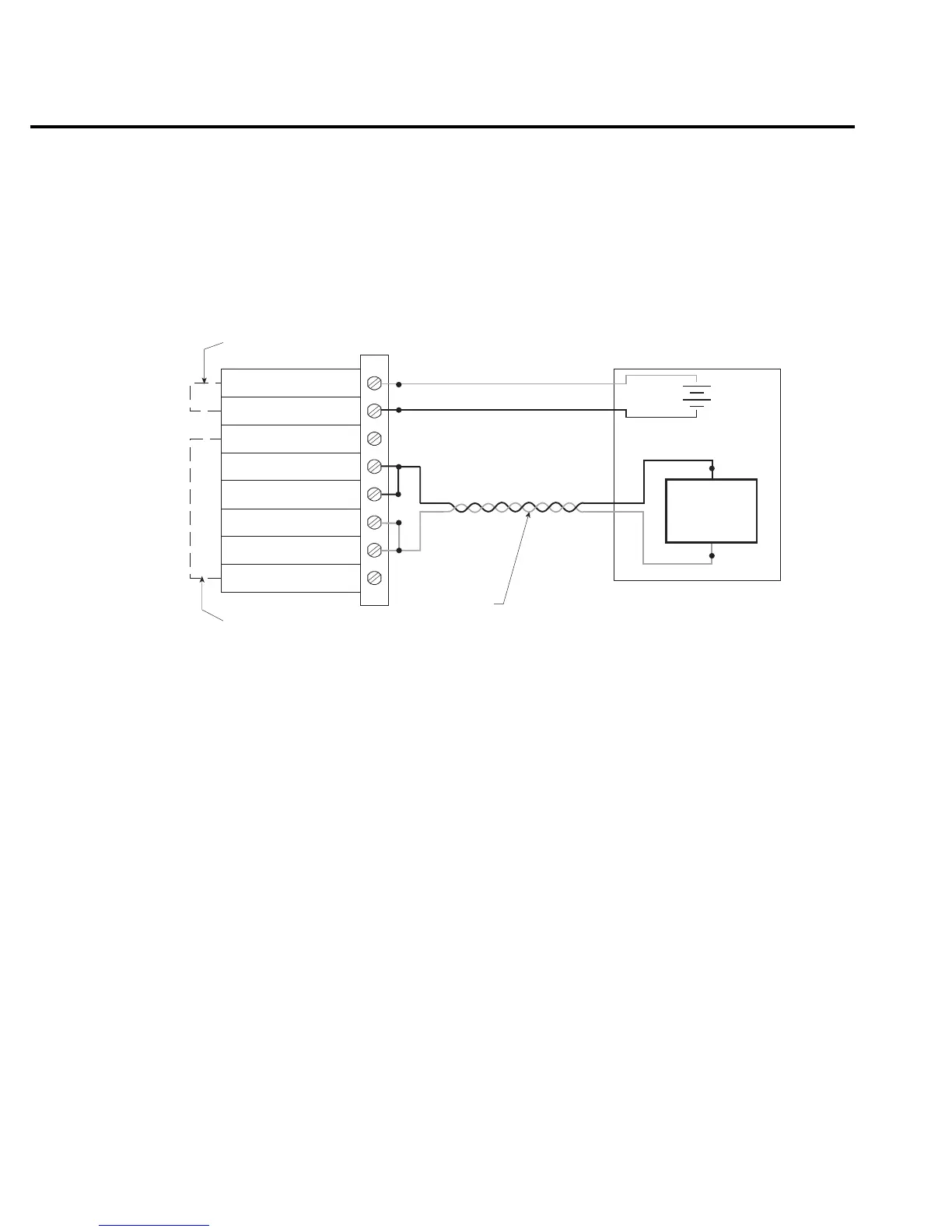

Figure 5

2-wire local sense connection of the DUT to the output

Front panel operation

Menu controls

• Press the MENU key to activate the main menu.

• Use the UP and DOWN keys to scroll through the primary menu items.

• Changing channels (Model 2306, 2306-PJ, and 2306-VS only): When the main menu is

displayed, use the / keys to change the active channel (each press of the / keys

will toggle between channel #1 and channel #2).

NOTE

If a channel number is not shown, the LEFT and RIGHT key presses will be ignored.

Also the LEFT and RIGHT key presses will be ignored if a sub-menu only exists on

the battery channel (not on the charger channel).

External Test Circuit

Quick Disconnect

Connector

Model 2306

source input/output

DVM input

DVM +

DVM -

Source -

Sense -

Sense +

Source +

Twisted pair

DUT

▲
