TO ADJUSTTHE POSITION OF
THE CHAINING FINGER
CORRECT SETTING:
WHEN SET THE NEEDLE PLATE SETTING KNOB TO THE GUIDE LINE (S), THE CHAINING FINGER
SHOULD TOUCH THE SIDE OF NEEDLE PLATE, AND THE TIP OF CHAINING FINGER SHOULD BE
SAME LEVEL WITH THE TIP OF THE NEEDLE ON THE NEEDLE PLATE.
TO ADJUST:
1. REMOVE THE PRESSER FOOT.
2. SETTHE NEEDLE PLATE SETTING KNOBTOTHE GUIDE LINE (S) ON THE CHAINING FINGER
UNIT.
3. LOOSEN TWO SETSCREWS (A), AND MOVE THE CHAINING FINGER UNIT TO CORRECT
POSITION.
4. TIGHTEN TWO SETSCREWS (A).
5. SET THE NEEDLE PLATE SETTING KNOB TO THE GUIDE LINE (S) AND (R), AND CHECK THE
POSITION OF CHAINING FINGER.
6. ATTACH THE PRESSER FOOT.

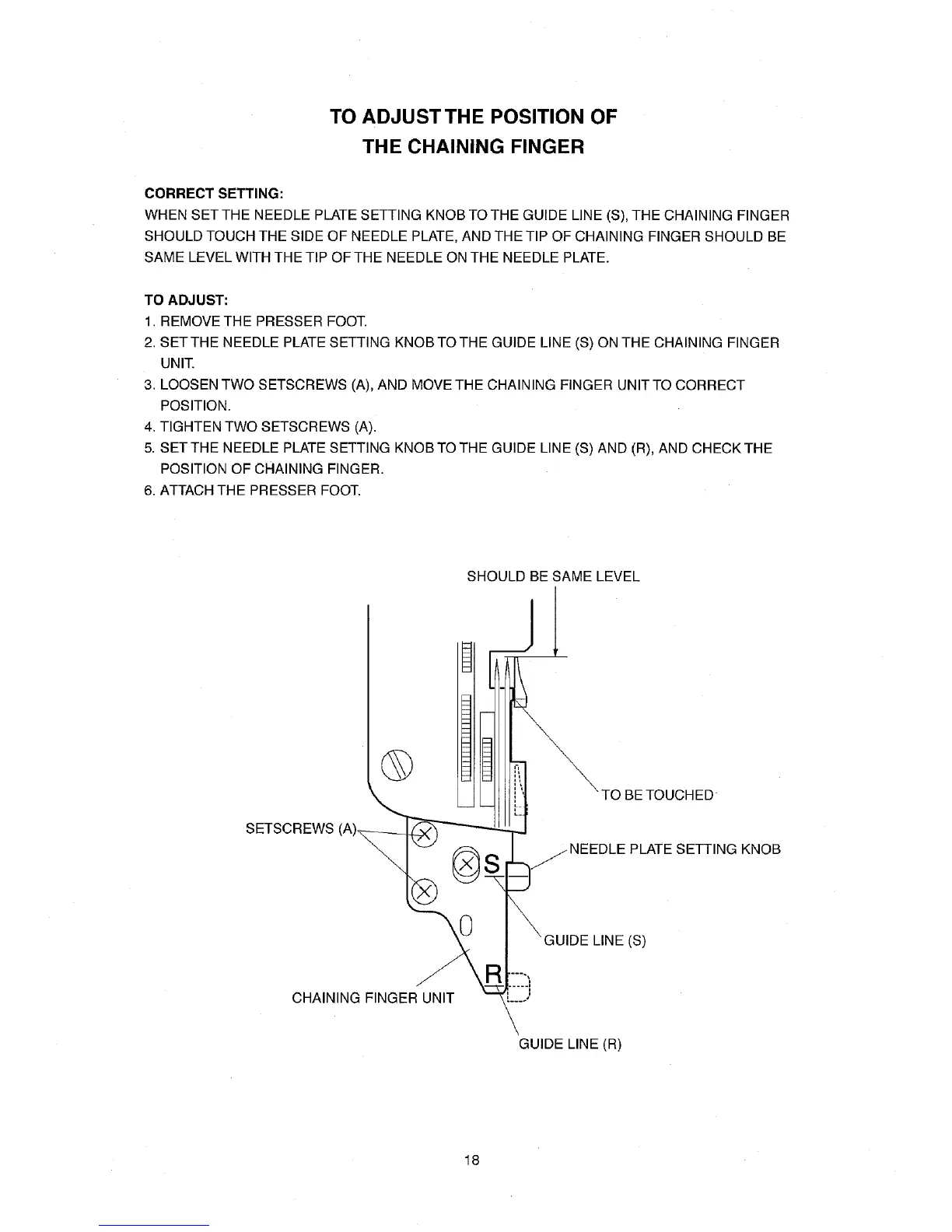

SHOULD BE SAME LEVEL
A
TO BE TOUCHED
SETSCREWSIA/ _ NEEDLEPLATESErrINGKNOB
CHAINING FINGER UNIT ....."
GUIDE LINE (R)
