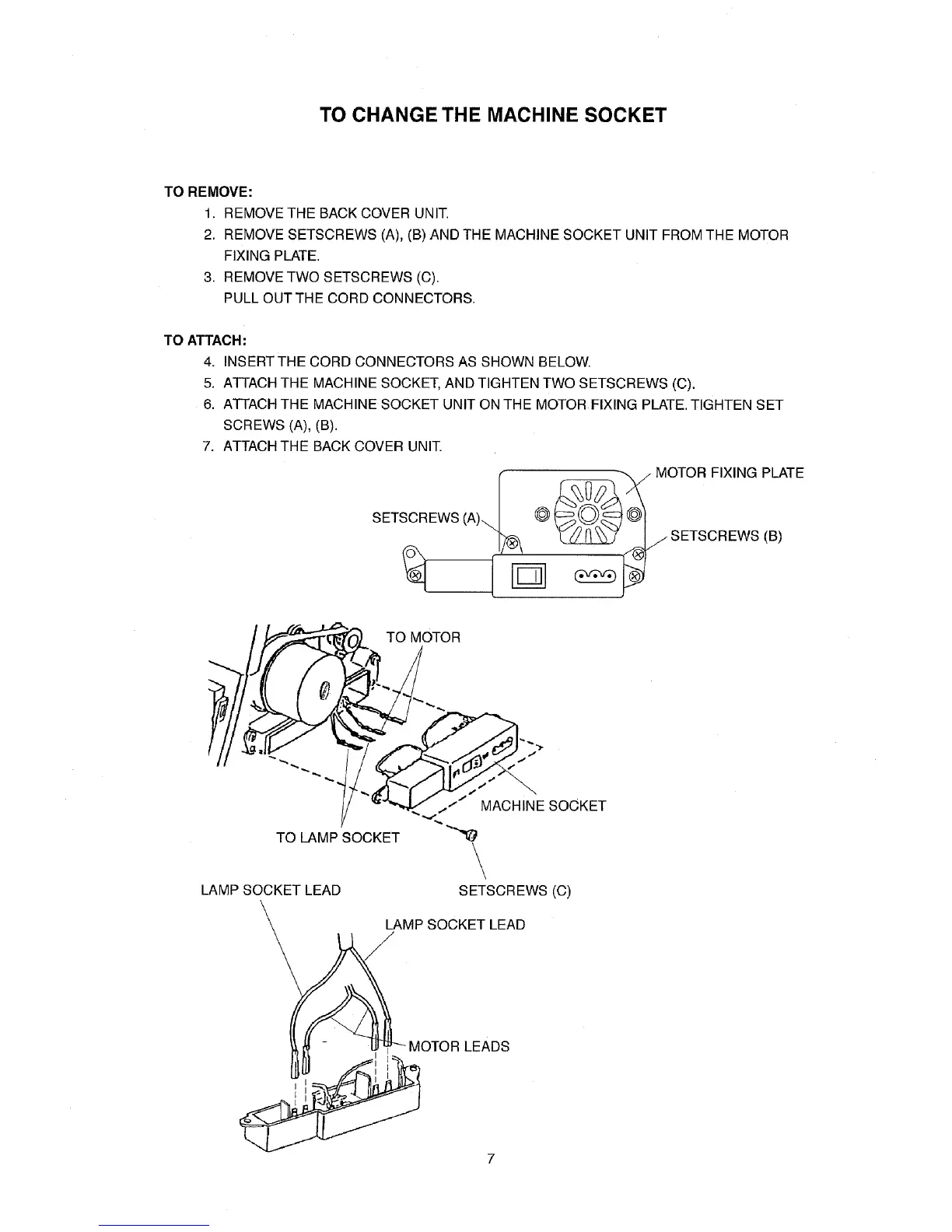

TO CHANGE THE MACHINE SOCKET
TO REMOVE:
1. REMOVE THE BACK COVER UNIT.
2. REMOVE SETSCREWS (A), (B) AND THE MACHINE SOCKET UNIT FROM THE MOTOR
FIXING PLATE.
3. REMOVE TWO SETSCREWS (C).
PULL OUT THE CORD CONNECTORS.
TO ATTACH:
4. INSERTTHE CORD CONNECTORS AS SHOWN BELOW.
5. ATTACH THE MACHINE SOCKET, AND TIGHTEN TWO SETSCREWS (C).
6. ATTACH THE MACHINE SOCKET UNIT ON THE MOTOR FIXING PLATE. TIGHTEN SET
SCREWS (A), (B).
7. ATTACH THE BACK COVER UNIT.
¢
SETSCREWS (A)_ SETSCREWS (B)
MOTOR FIXING PLATE
TO LAMP SOCKET
LAMP SOCKET LEAD
'_/_,_t._0 MOTOR
i"-'_,l_ _t MACHINE SOCKET
\
SETSCREWS (C)
LAMP SOCKET LEAD
