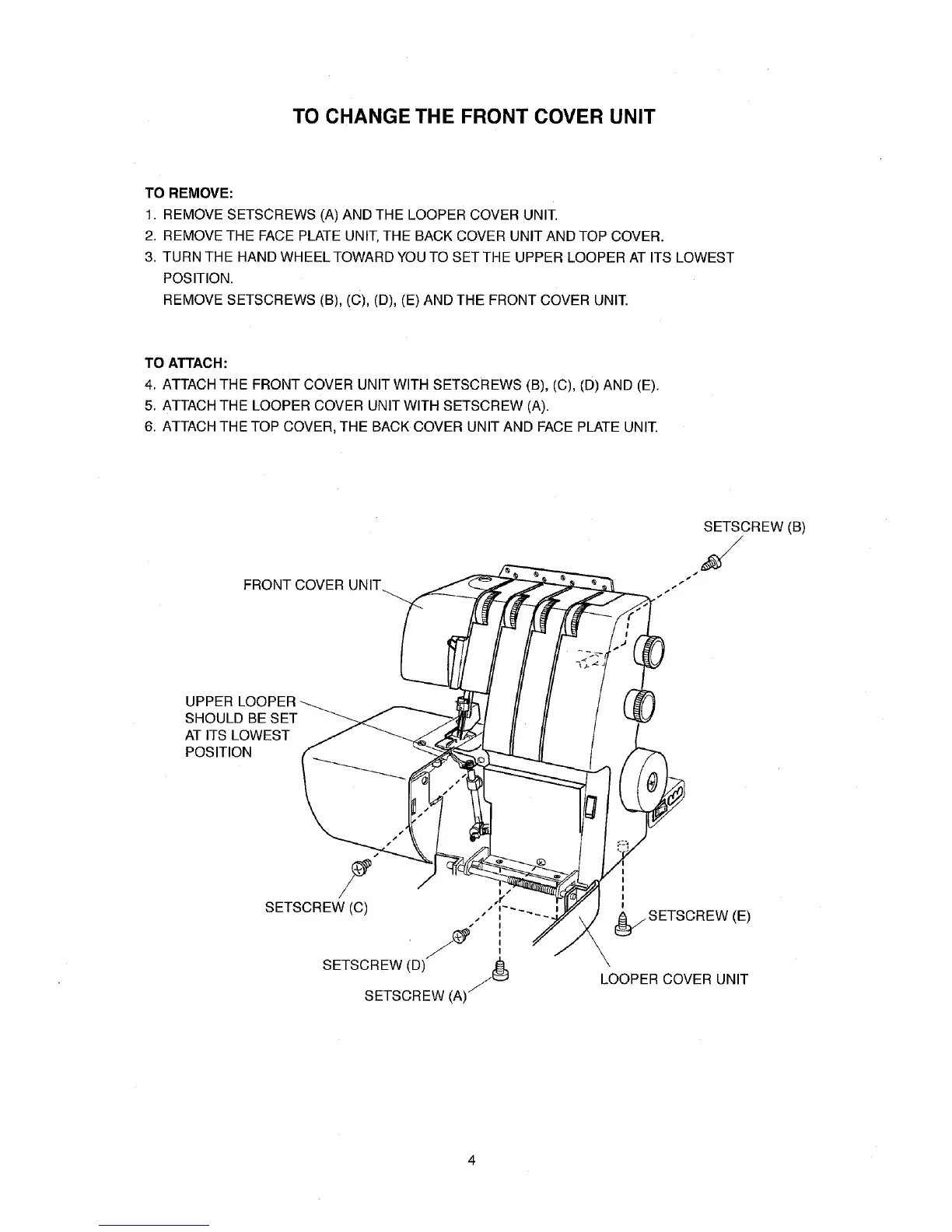

TO CHANGE THE FRONT COVER UNIT
TO REMOVE:
1. REMOVE SETSCREWS (A) AND THE LOOPER COVER UNIT.
2. REMOVE THE FACE PLATE UNIT, THE BACK COVER UNIT AND TOP COVER.
3. TURN THE HAND WHEEL TOWARD YOU TO SET THE UPPER LOOPER AT ITS LOWEST
POSITION.
REMOVE SETSCREWS (B), (C), (D), (E) AND THE FRONT COVER UNIT.
TO ATTACH:
4. ATTACH THE FRONT COVER UNIT WITH SETSCREWS (B), (C), (D) AND (E).
5. ATTACH THE LOOPER COVER UNIT WITH SETSCREW (A).
6. ATTACH THE TOP COVER, THE BACK COVER UNIT AND FACE PLATE UNIT.
FRONT COVER UNIT
SETSCREW (B)
S
J
/
UPPER LOOPER_
SHOULD BESET -_
ATITS LOWEST
POSITION
J
SETSCREW (C)
! #
tY
J,
I
I
SETSCREW (D) &
SETSCREW (A)_
I
I
I
I
I
_SETSCREW (E)
LOOPER COVER UNIT
