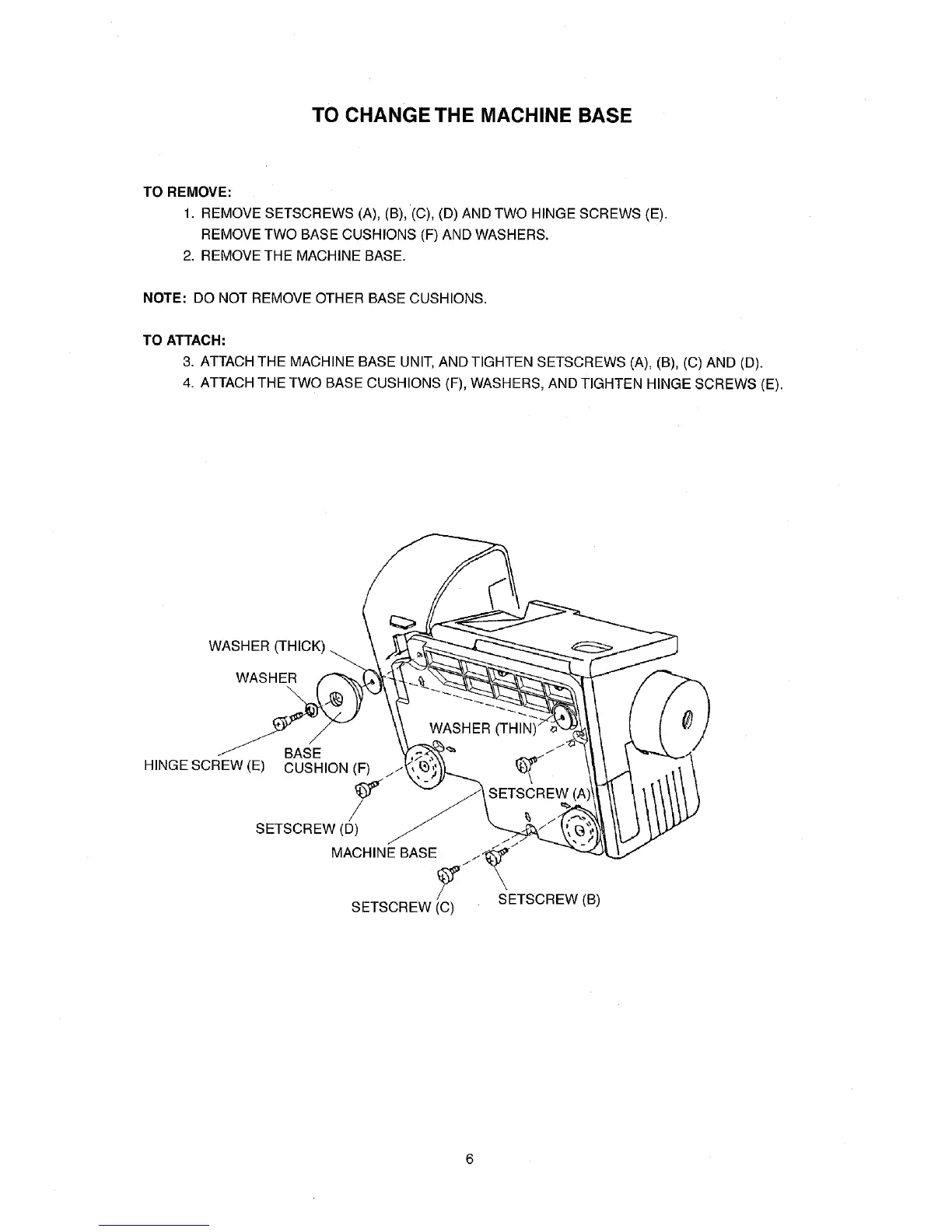

TO CHANGE THE MACHINE BASE
TO REMOVE:
1. REMOVE SETSCREWS (A), (B), (C), (D) AND TWO HINGE SCREWS (E).
REMOVE TWO BASE CUSHIONS (F) AND WASHERS.
2. REMOVE THE MACHINE BASE.
NOTE. DO NOT REMOVE OTHER BASE CUSHIONS.
TO ATTACH:
3. ATTACH THE MACHINE BASE UNIT, AND TIGHTEN SETSCREWS (A), (B), (C) AND (D).
4. ATTACH THE TWO BASE CUSHIONS (F), WASHERS, AND TIGHTEN HINGE SCREWS (E).
WASHER
WASHER
\
BASE 1
HINGE SCREW (E) CUSHION (F) <
SETSCREW (,_
/
SETSCREW (D)
