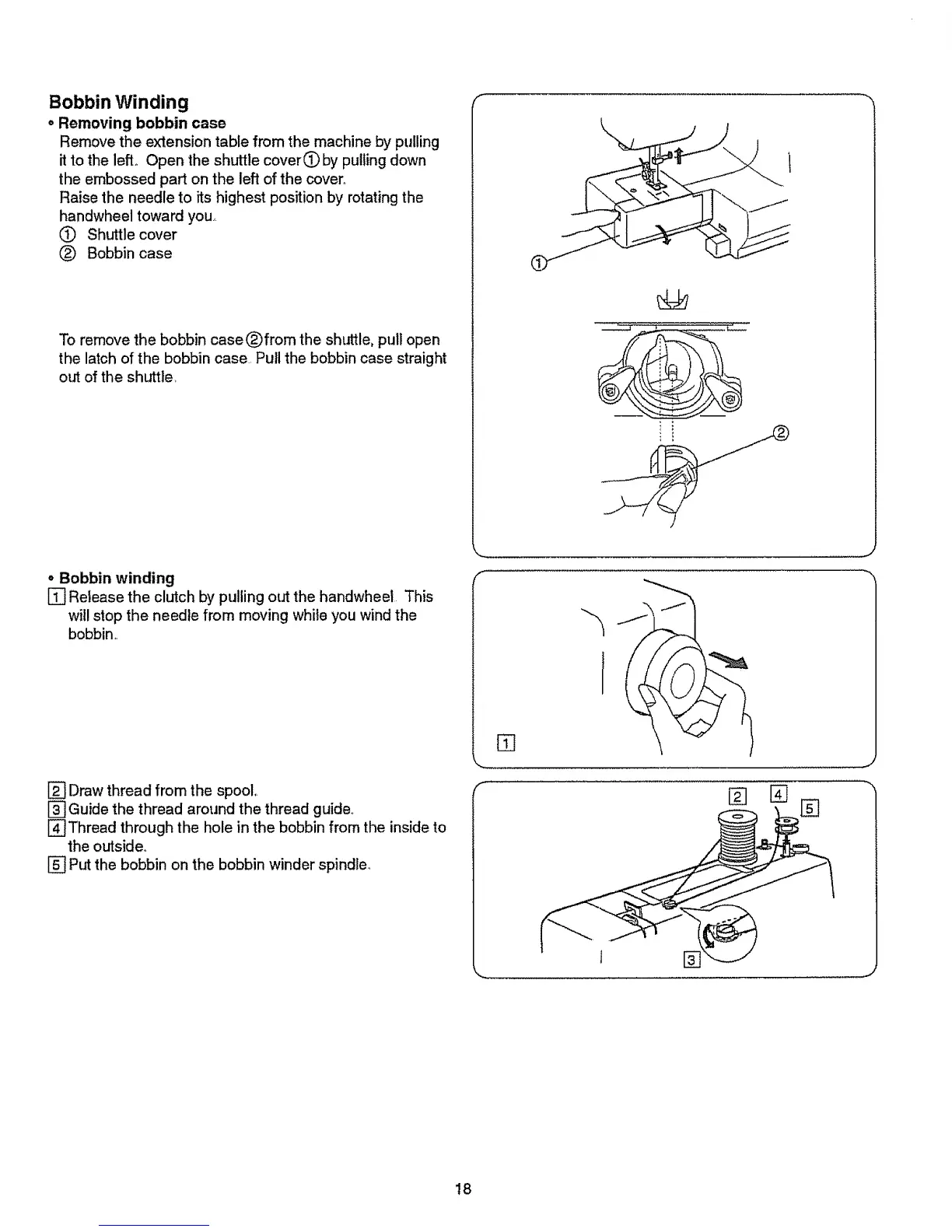

Bobbin Winding
• Removing bobbin case
Remove the extension table from the machine by pulling
it to the left. Open the shuttle coverC) by pulling down
the embossed part on the left of the cover°
Raise the needle to its highest position by rotating the
handwheel toward you_
0 Shuttle cover
(_) Bobbin case
To remove the bobbin case (_)from the shuttle, pull open
the latch of the bobbin case Pull the bobbin case straight
out of the shuttle,
• Bobbin winding
[] Release the clutch by pulling out the handwheel This
will stop the needle from moving while you wind the
bobbin,,
[_ Draw thread from the spool°
[] Guide the thread around the thread guide,
[]Thread through the hole in the bobbin from the inside to
the outside.
[_ Put the bobbin on the bobbin winder spindle.
\
[]
@
1
.J
18
