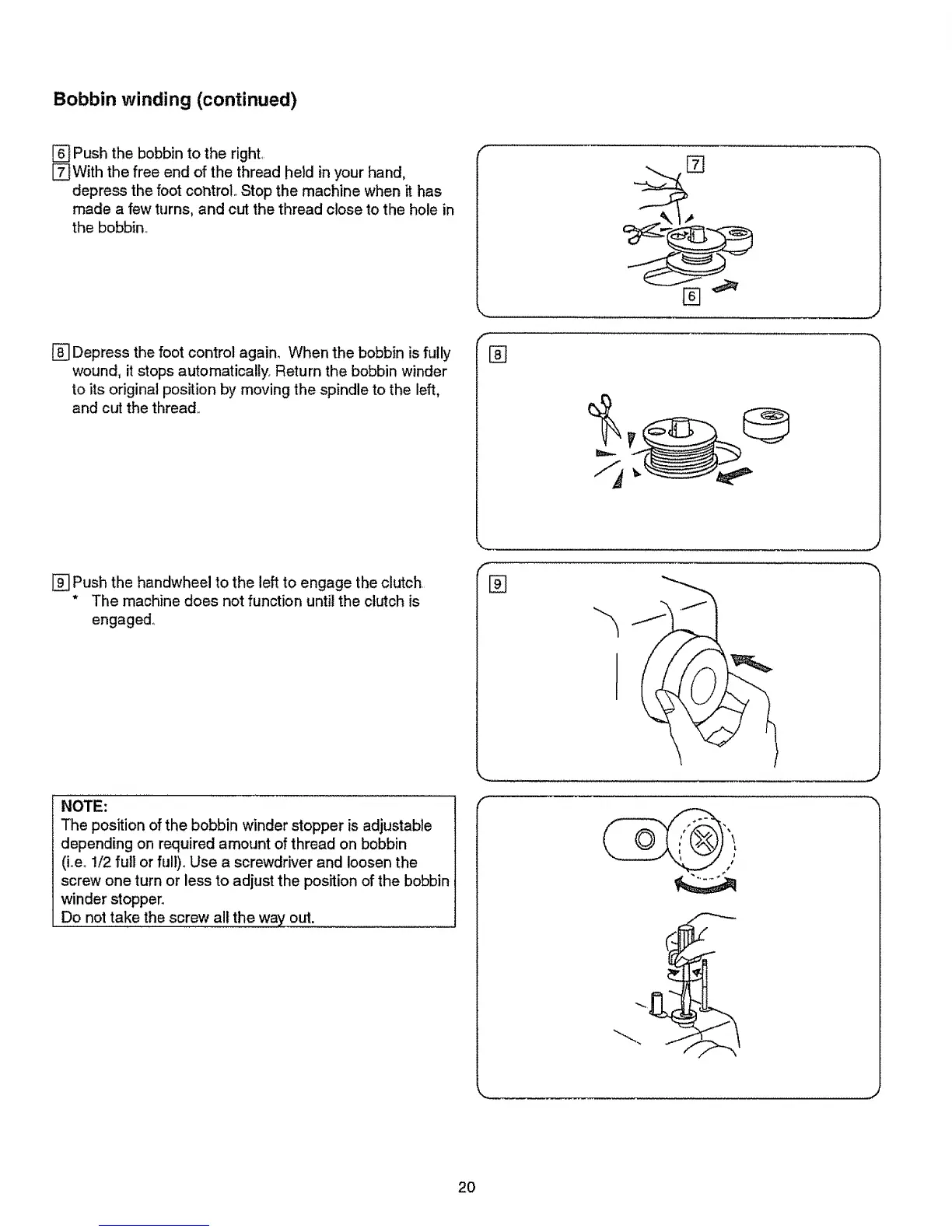

Bobbin winding (continued)
[] Push the bobbin to the right,.
[_With the free end of the thread held in your hand,
depress the foot cohtrol. Stop the machine when it has
made a few turns, and cut the thread close to the hole in
the bobbin..
[] Depress the foot control again_ When the bobbin is fully
wound, it stops automatically. Return the bobbin winder
to its original position by moving the spindle to the left,
and cut the thread..
f
[]
_] Push the handwheel to the left to engage the clutch.
* The machine does not function until the clutch is
engaged°
NOTE:
The position of the bobbin winder stopper is adjustable
depending on required amount of thread on bobbin
(Leo!/2 full or full)o Use a screwdriver and loosen the
screw one turn or less to adjust the position of the bobbin
winder stopper.
Do not take .the screw all the way out.
.... J
%
J
20
