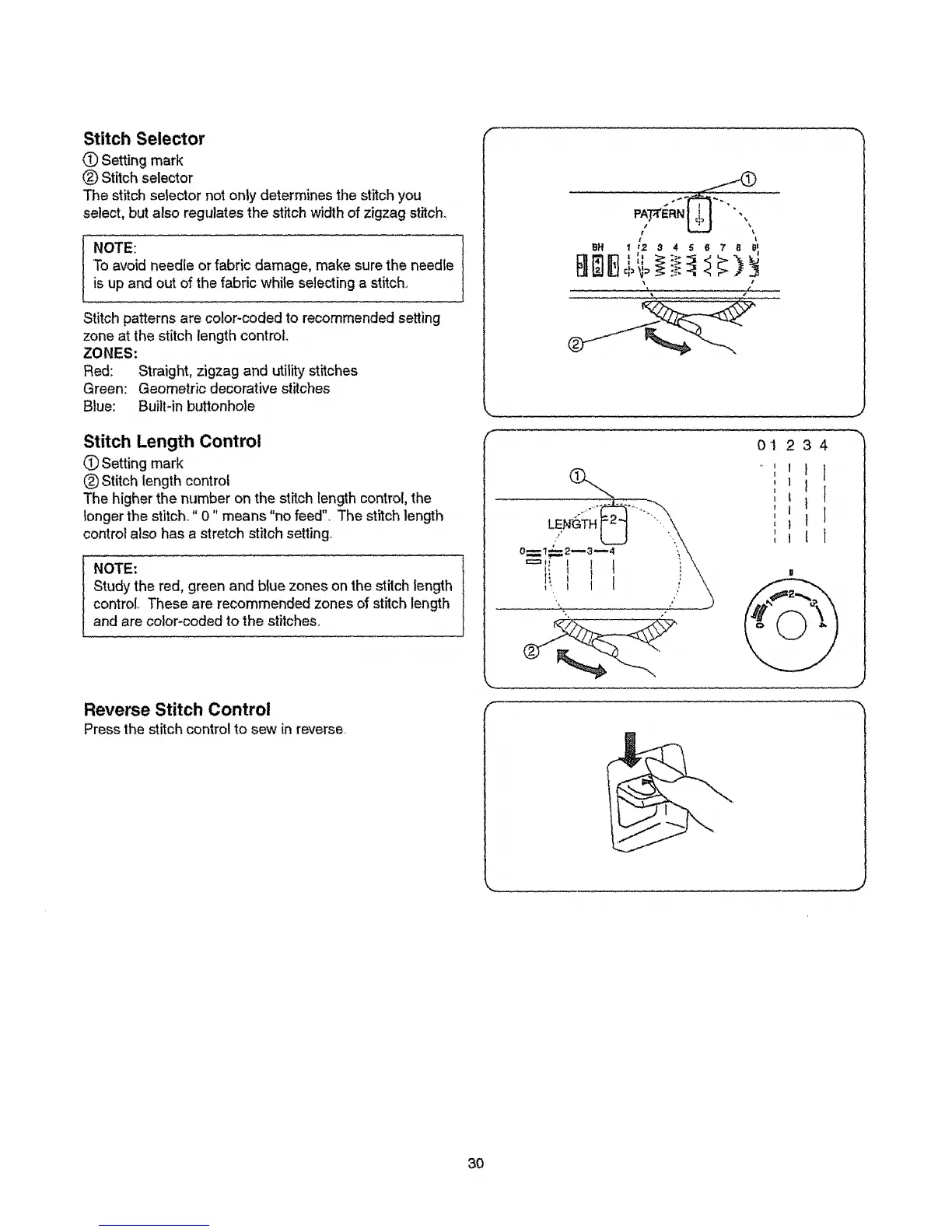

Stitch Selector
(_) Setting mark
(_) Stitch selector
The stitch selector not only determines the stitch you
select, but also regulates the stitch width of zigzag stitch.
NOTE:
To avoid needle or fabric damage, make sure the needle
is up and out of the fabric while selecting a stitch,
Stitch patterns are color-coded to recommended setting
zone at the stitch length control.
ZONES:
Red: Straight, zigzag and utility stitches
Green: Geometric decorative stitches
Blue: Built-in buttonhole
Stitch Length Control
(_) Setting mark
(_) Stitch length control
The higher the number on the stitch length control, the
longer the stitch.." 0" means "no feed". The stitch length
control also has a stretch stitch setting°
NOTE:
Study the red, green and blue zones on the stitch length
contro£ These are recommended zones of stitch length
and are color-coded to the stitches..
Reverse Stitch Control
Press the stitch control to sew in reverse.
• s
f
F"
01 234
I
I
I
30
