SEWING MACHINE DIV. 20 MODEL 385. 15208400

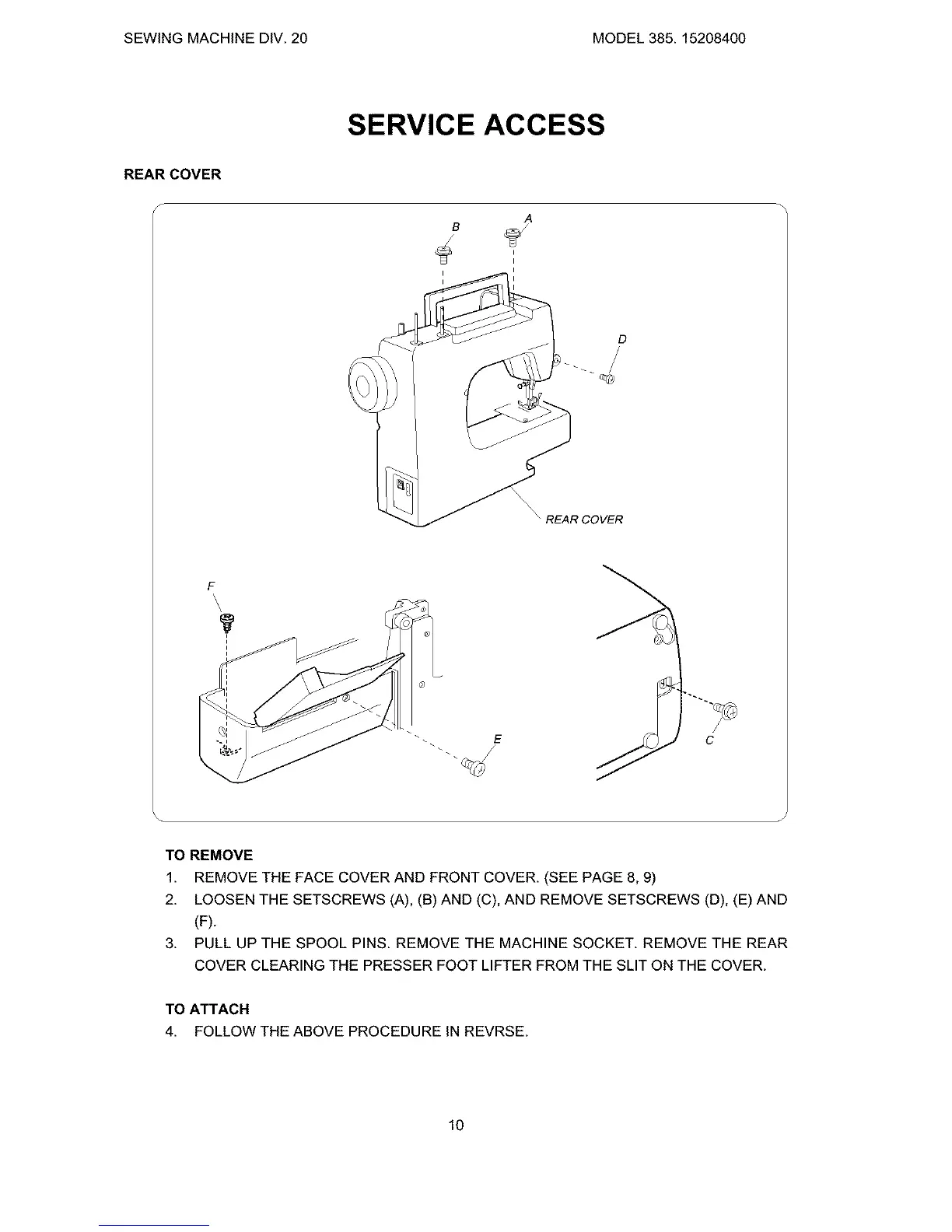

SERVICE ACCESS
REAR COVER
A
B
F
\
\
c
TO REMOVE
1. REMOVE THE FACE COVER AND FRONT COVER. (SEE PAGE 8, 9)
2. LOOSEN THE SETSCREWS (A), (B) AND (C), AND REMOVE SETSCREWS (D), (E) AND
(F).
3. PULL UP THE SPOOL PINS. REMOVE THE MACHINE SOCKET. REMOVE THE REAR
COVER CLEARING THE PRESSER FOOT LIFTER FROM THE SLIT ON THE COVER.
TO ATTACH
4. FOLLOW THE ABOVE PROCEDURE IN REVRSE.
lO
