SEWING MACHINE DIV.20 MODEL 385. 15208400

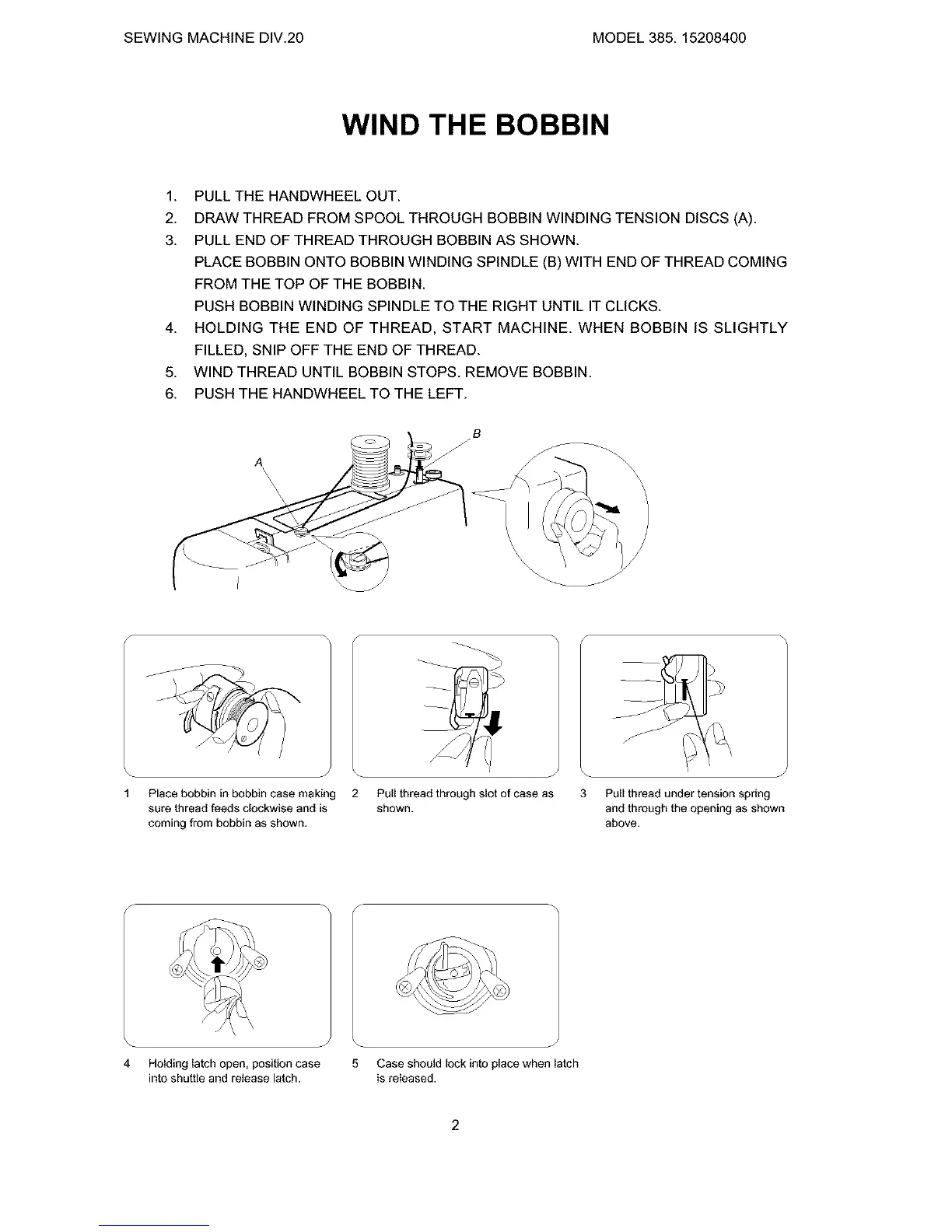

WIND THE BOBBIN
1. PULL THE HANDWHEEL OUT.
2. DRAW THREAD FROM SPOOL THROUGH BOBBIN WINDING TENSION DISCS (A).
3. PULL END OF THREAD THROUGH BOBBIN AS SHOWN.
PLACE BOBBIN ONTO BOBBIN WINDING SPINDLE (B) WITH END OF THREAD COMING
FROM THE TOP OF THE BOBBIN.
PUSH BOBBIN WINDING SPINDLE TO THE RIGHT UNTIL IT CLICKS.
4. HOLDING THE END OF THREAD, START MACHINE. WHEN BOBBIN IS SLIGHTLY
FILLED, SNIP OFF THE END OF THREAD.
5. WIND THREAD UNTIL BOBBIN STOPS. REMOVE BOBBIN.
6. PUSH THE HANDWHEEL TO THE LEFT.
A,
\
\
\
\
\
Place bobbin in bobbin case making 2
sure thread feeds clockwise and is
coming from bobbin as shown.
Pull thread through slot of case as
shown.
' S
3 Pull thread under tension spring
and through the opening as shown
above.
S
4
/
Holding latch open, position case
into shuttle and release latch.
S
J
5 Case should lock into place when latch
is released.
2
