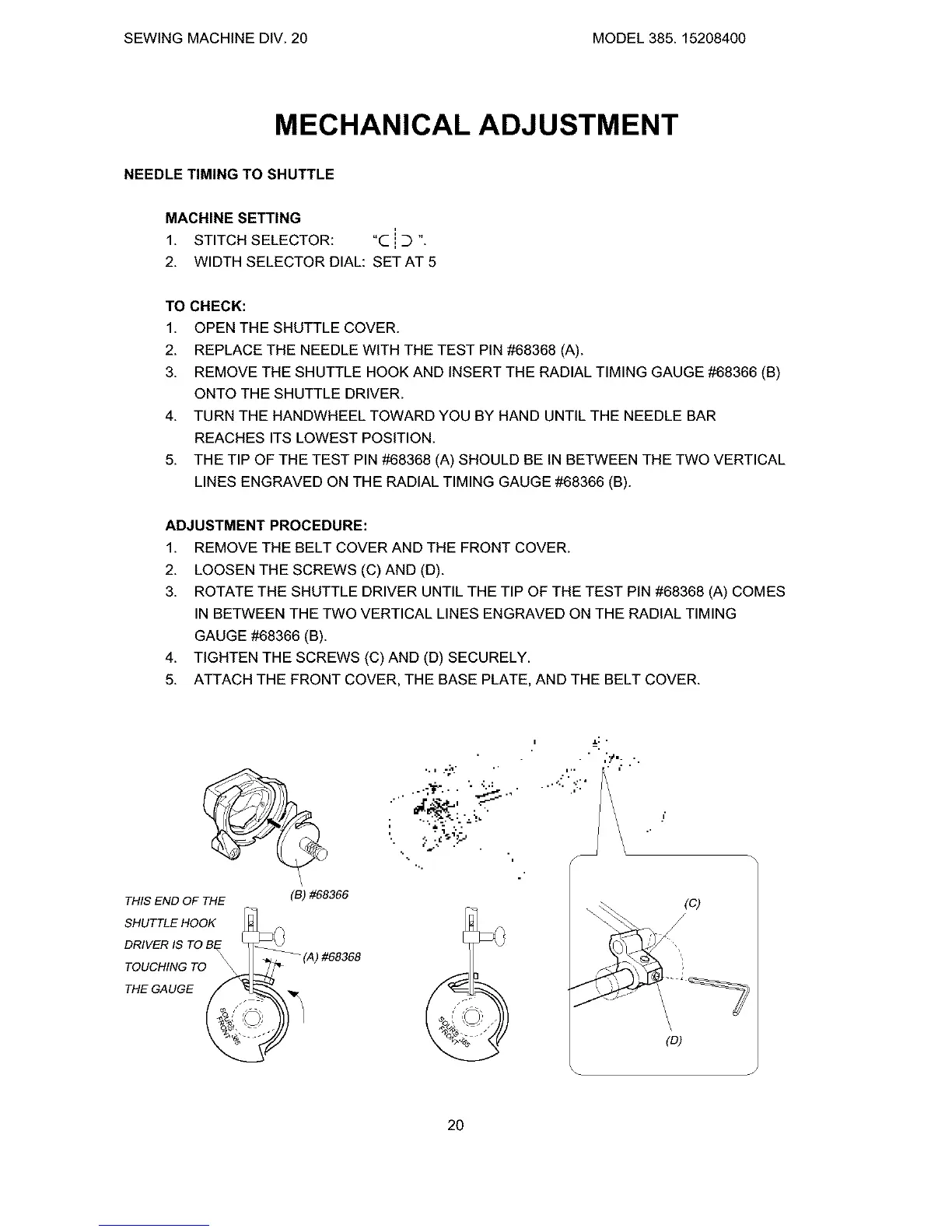

SEWING MACHINE DIV. 20 MODEL 385 15208400
MECHANICAL ADJUSTMENT
NEEDLE TIMING TO SHUTTLE
MACHINE SETTING
i
I
1 STITCH SELECTOR: "C : D
2 WIDTH SELECTOR DIAL: SET AT 5
TO CHECK:
1. OPEN THE SHUTTLE COVER.
2. REPLACE THE NEEDLE WITH THE TEST PIN #68368 (A).
3 REMOVE THE SHUTTLE HOOK AND INSERT THE RADIAL TIMING GAUGE #68366 (B)
ONTO THE SHUTTLE DRIVER.
4 TURN THE HANDWHEEL TOWARD YOU BY HAND UNTIL THE NEEDLE BAR
REACHES ITS LOWEST POSITION.
5 THE TIP OF THE TEST PIN #68368 (A) SHOULD BE IN BETWEEN THE TWO VERTICAL
LINES ENGRAVED ON THE RADIAL TIMING GAUGE #68366 (B).
ADJUSTMENT PROCEDURE:
1 REMOVE THE BELT COVER AND THE FRONT COVER.
2. LOOSEN THE SCREWS (C) AND (D).
3 ROTATE THE SHUTTLE DRIVER UNTIL THE TIP OF THE TEST PIN #68368 (A) COMES
IN BETWEEN THE TWO VERTICAL LINES ENGRAVED ON THE RADIAL TIMING
GAUGE #68366 (B).
4. TIGHTEN THE SCREWS (C) AND (D) SECURELY.
5 ATTACH THE FRONT COVER, THE BASE PLATE, AND THE BELT COVER.
THIS END OF THE (B) #68366
SHUTTLE HOOK _)
THE GAUGE _,_
•, = .-_."
m
<-"
Cd, .
i J.: •
i_ I. ..
. • _.-,
.1..
(c)
\
(O)
2O
