SEWINGMACHINEDIV.20 MODEL385.15208400

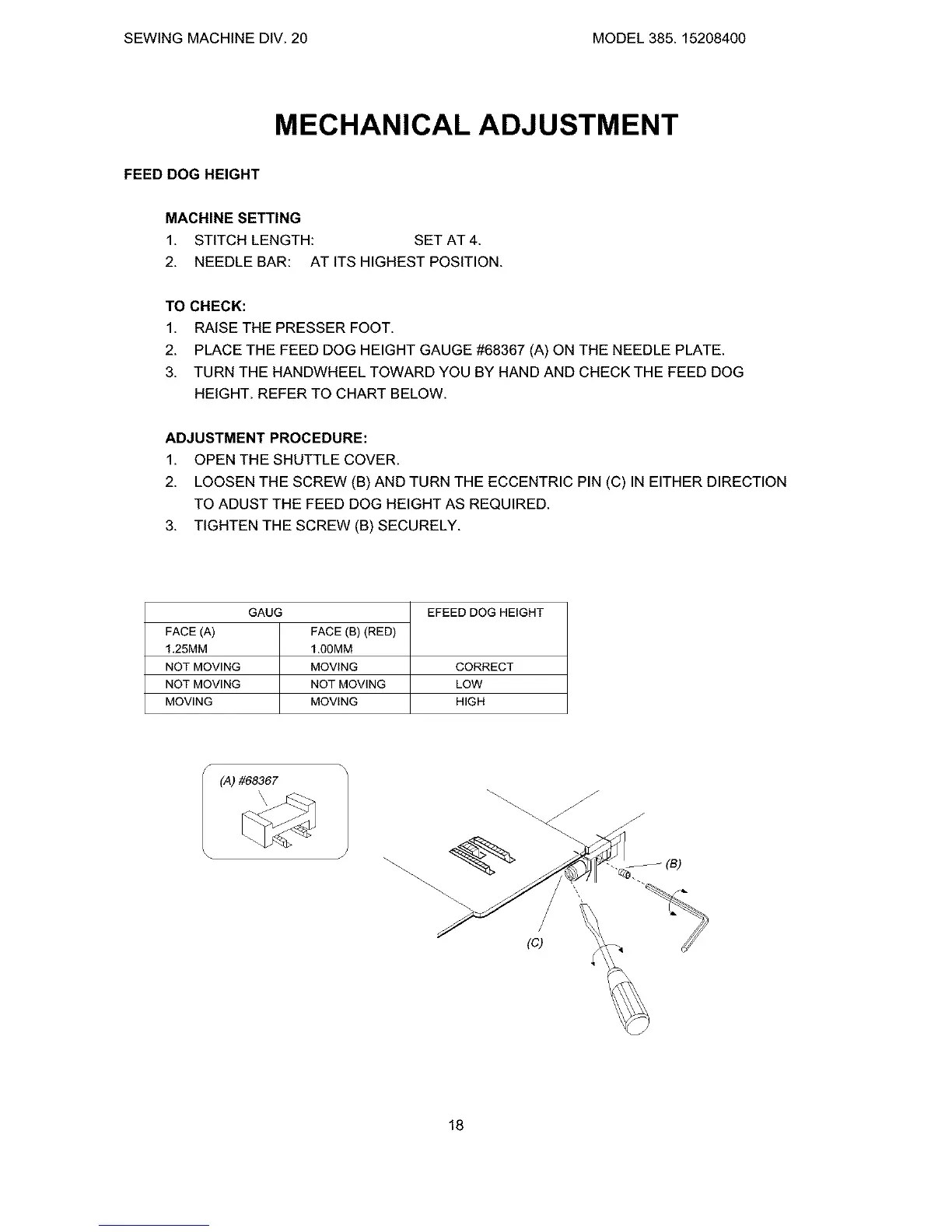

MECHANICAL ADJUSTMENT
FEED DOG HEIGHT
MACHINE SETTING
1. STITCH LENGTH: SET AT 4.
2. NEEDLE BAR: AT ITS HIGHEST POSITION.
TO CHECK:
1. RAISE THE PRESSER FOOT.
2. PLACE THE FEED DOG HEIGHT GAUGE #68367 (A) ON THE NEEDLE PLATE.
3. TURN THE HANDWHEEL TOWARD YOU BY HAND AND CHECK THE FEED DOG
HEIGHT. REFER TO CHART BELOW.
ADJUSTMENT PROCEDURE:
1. OPEN THE SHUTTLE COVER.
2. LOOSEN THE SCREW (B) AND TURN THE ECCENTRIC PIN (C) IN EITHER DIRECTION
TO ADUST THE FEED DOG HEIGHT AS REQUIRED.
3. TIGHTEN THE SCREW (B) SECURELY.
FACE (A)
1.25MM
NOT MOVING
NOT MOVING
MOVING
GAUG
FACE (B) (RED)
1.00MM
MOVING
NOT MOVING
MOVING
EFEED DOG HEIGHT
CORRECT
LOW
HIGH
(A) #68367
\
(c)
18
To Next Page
