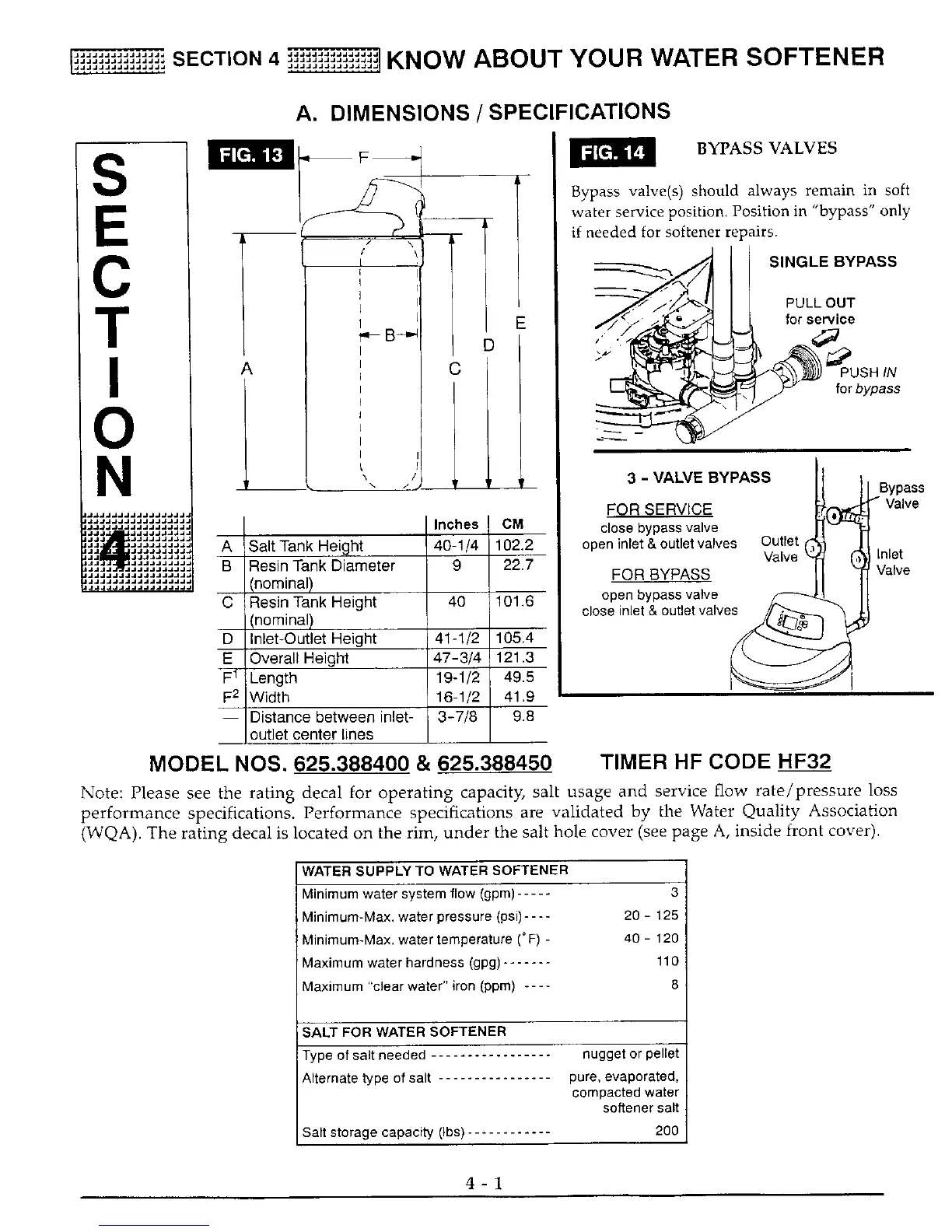

[_j_._,_,_._! SECTION 4 _,_jj_._j_j_ KNOW ABOUT YOUR WATER SOFTENER
A. DIMENSIONS / SPECIFICATIONS
S
E
C
T
N
7 m
A
D
C
A
B
C
D
E
F1
F2
Salt Tank Height
Resin Tank Diameter
(nominal)
Resin Tank Height
(nominal)
Inlet-Outlet Height
Overall Height
Length
Width
Distance between inlet-
outlet center lines
E
" t
CM
40-1/4 102.2
9 22.7
40 101.6
i 41-1/2 105.4
47-3/4 121.3
19-1/2 49.5
16-1/2 41,9
3-7/8 9.8
BYPASS VALVES
Bypass valve(s) should always remain in soft
water service position. Position in "bypass" only
if needed for softener repairs.
SINGLE BYPASS
PULL OUT
for service
_HIN
for bypass
3 - VALVE BYPASS
Bypass
FOR SERVICE Valve
close bypass valve
open inlet & outlet valves Outlet
Valve nlet
FOR BYPASS Valve
open bypass valve
close inlet & outlet valves
MODEL NOS. 625.388400 & 625.388450 TIMER HF CODE HF32
Note: Please see the rating decal for operating capacity, salt usage and service flow rate/pressure loss
performance specifications. Performance specifications are validated by the Water Quality Association
(WQA). The rating decal is located on the rim, under the salt hole cover (see page A, inside front cover).
WATER SUPPLY TO WATER SOFTENER
Minimum water system flow (gpm) ..... 3
Minimum-Max. water pressure (psi) .... 20 - 125
Minimum-Max. water temperature (°F) - 40 - 120
Maximum water hardness (gpg) ....... 110
Maximum "clear water" iron (ppm) .... 8
SALT FOR WATER SOFTENER
Type of salt needed .................
Alternate type of salt
nugget or pellet
pure, evaporated,
compacted water
softener salt
Salt storage capacity (Ibs)
2OO
4-1
