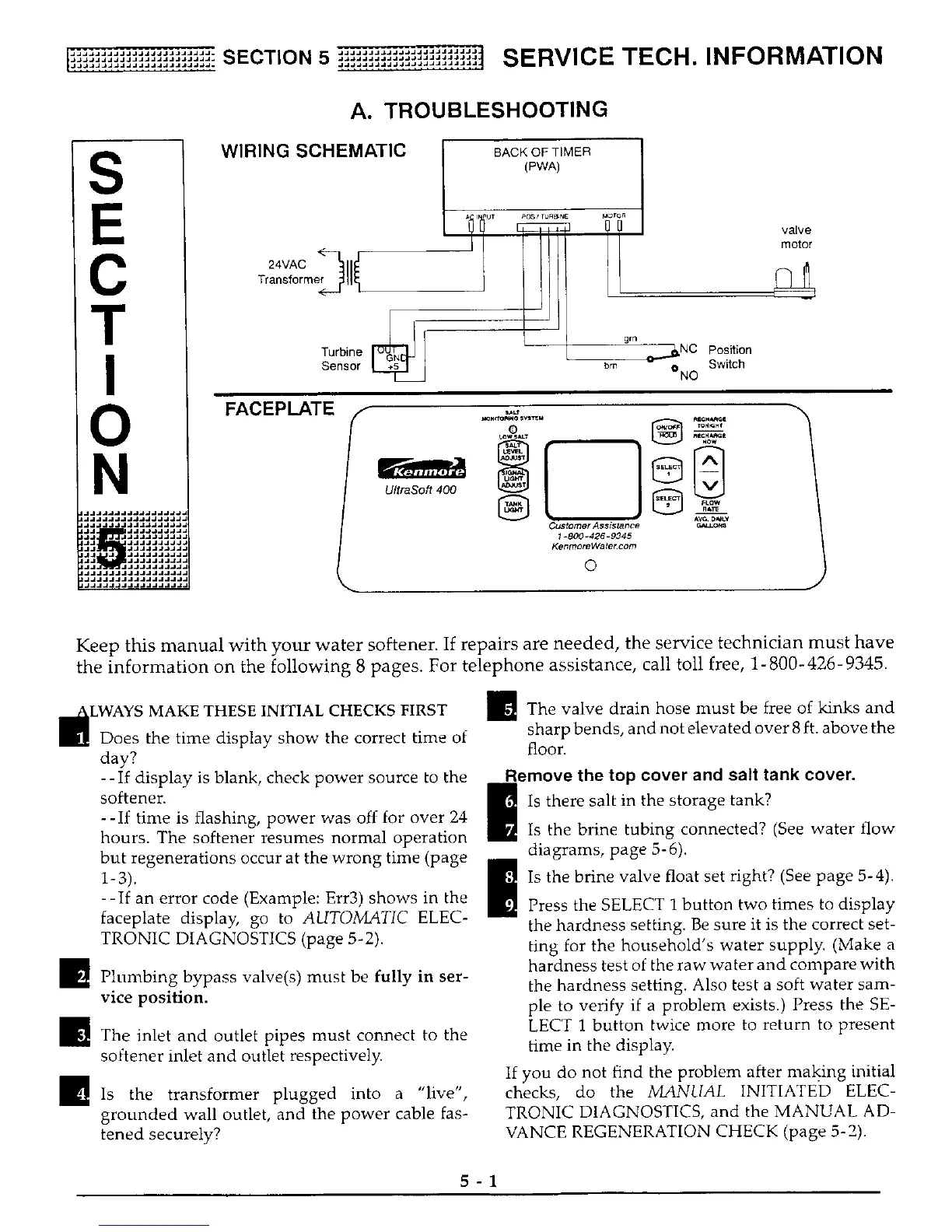

1__: SECTION 5 __m_ SERVICE TECH. INFORMATION
S
E
C
T
N
4JJJJJJJJJ_JJJJ_.
J_JJJJJJJJJJJJJJ_
a_JJJJJJJJJ_JJJJJJ
iiSiiiiiiiiii
JJJJJJJJJJJJJJJJ_
JJJJJJJJJJ_JJJJJJ
J_J_JJJJJJJJ_JJ_
A. TROUBLESHOOTING
WIRING SCHEMATIC BACKOFTIMER
(PWA)
Tr24sfVAorCmer_IIf
Turbine
Sensor
t lIUT
_oton
motor
gm
o..._N C Position
brn ON O Switch
FACEPLATE ,-
Ult_So# 400
_,,_ N_o p_4o SySTI_M _ R£¢H_Ge
0 TON_G H_r
FLOW
C_tort_ol- AsststRrl¢o G*CA-O,_
I =800-d26-9_q45
KenmoreWate_¢om
©
Keep this manual with your water softener. If repairs are needed, the service technician must have
the information on the following 8 pages. For telephone assistance, call toll free, 1-800-426-9345.
LWAYS MAKE THESE INITIAL CHECKS FIRST
Does the time display show the correct time of
day?
-- If display is blank, check power source to the
softener. !
- -If time is flashing, power was off for over 24
hours. The softener resumes normal operation
but regenerations occur at the wrong time (page
1-3).
|
- -If an error code (Example: Err3) shows in the
faceplate display, go to AUTOMATIC ELEC-
TRONIC DIAGNOSTICS (page 5-2).
_ Plumbing bypass valve(s) must be fully in ser-
vice position.
The inlet and outlet pipes must connect to the
softener inlet and outlet respectively.
Is the transformer plugged into a "live",
grounded wall outlet, and the power cable fas-
tened securely?
The valve drain hose must be free of kinks and
sharp bends, and not elevated over 8 ft. above the
floor.
Remove the top cover and salt tank cover.
Is there salt in the storage tank?
Is the brine tubing connected? (See water flow
diagrams, page 5- 6).
Is the brine valve float set right? (See page 5-4).
Press the SELECT I button two times to display
the hardness setting. Be sure it is the correct set-
ting for the household's water supply. (Make a
hardness test of the raw water and compare with
the hardness setting. Also test a soft water sam-
ple to verify if a problem exists.) Press the SE-
LECT 1 button twice more to return to present
time in the display.
If you do not find the problem after maMng initial
checks, do the MANUAL INITIATED ELEC-
TRONIC DIAGNOSTICS, and the MANUAL AD-
VANCE REGENERATION CHECK (page 5-2).
5-1
