Ii!iii!! ' iii i : SECTION 6 iiiiii i ii ii l REPAIR PARTS FOR WATER SOFTENER
KEY
NO.
50
51
52
53
54
55
56
57
58
59
6O
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79

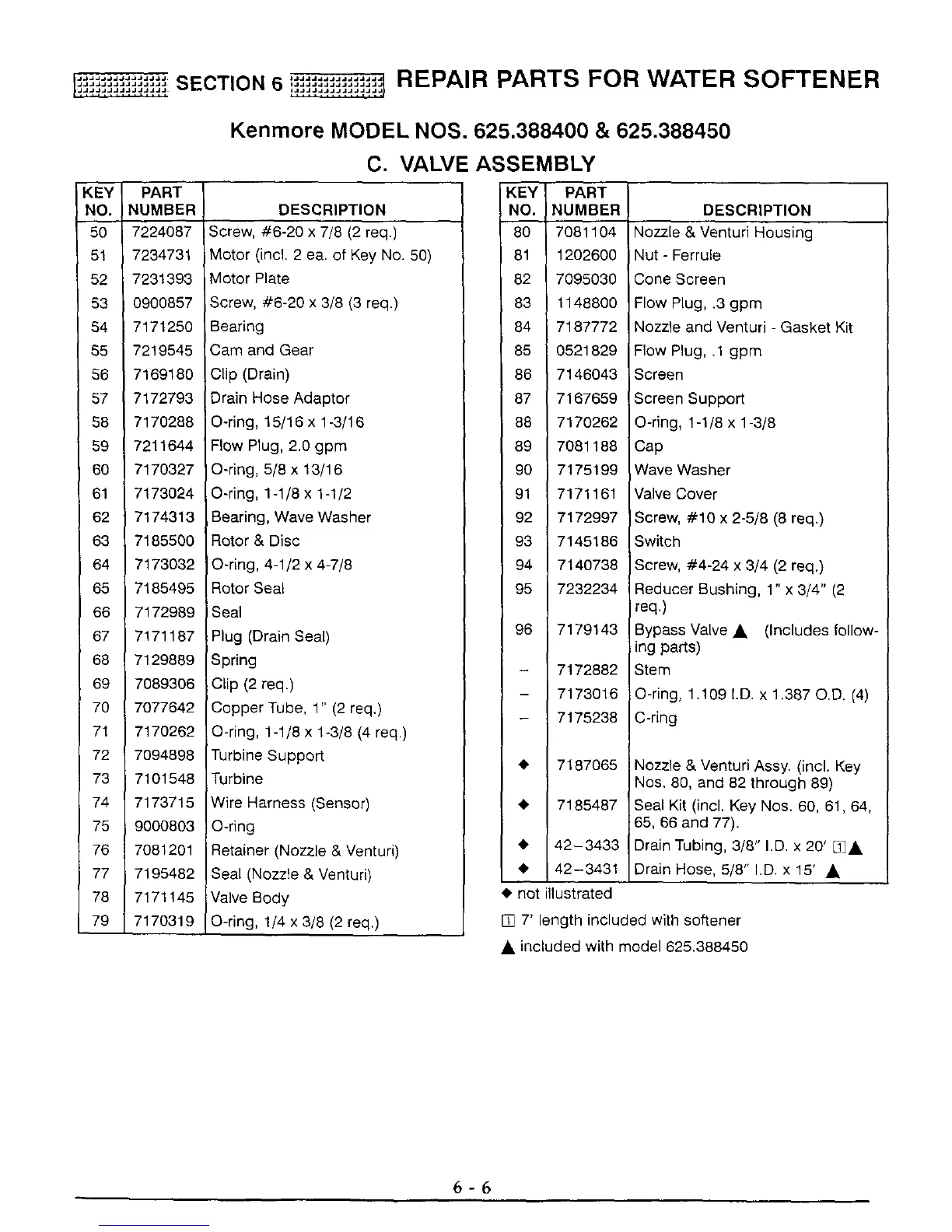

Kenmore MODEL NOS. 625.388400 & 625.388450
C. VALVE ASSEMBLY
PART
NUMBER
7224087
7234731
7231393
0900857
7171250
7219545
7169180
7172793
7170288
7211644
7170327
7173024
7174313
7185500
7173032
7185495
7172989
7171187
7129889
7089306
7077642
7170262
7094898
7101548
7173715
9000803
7081201
7195482
7171145
7170319
DESCRIPTION
Screw, #6-20 x 7/8 (2 req.)
Motor (incl. 2 ea. of Key No. 50)
Motor Plate
Screw, #6-20 x 3/8 (3 req.)
Bearing
Cam and Gear
Clip (Drain)
Drain Hose Adaptor
O-ring, 15/16 x 1-3/16
Flow Plug, 2.0 gpm
O-ring, 5/8 x 13/16
O-ring, 1-1/8 x 1-1/2
Bearing, Wave Washer
Rotor & Disc
O-ring, 4-1/2 x 4-7/8
Rotor Seal
Seal
Plug (Drain Seal)
Spring
Clip (2 req.)
Copper Tube, 1" (2 req.)
O-ring, 1-1/8 x 1-3/8 (4 req.)
Turbine Support
Turbine
Wire Harness (Sensor)
O-ring
Retainer (Nozzle & Venturi)
Seal (Nozzle & Venturi)
Valve Body
O-ring, 1/4 x 3/8 (2 req.)
KEY! PART
NO. NUMBER
80 7081104
81 1202600
82 7095030
83 1148800
84 7187772
85 0521829
86 7146043
87 7167659
88 7170262
89 7081188
90 7175199
91 7171161
92 7172997
93 7145186
94 7140738
95 7232234
96 7179143
7172882
7173016
7175238
• 7187065
• 7185487
• 42-3433
• 42-3431
• notillustrated
DESCRIPTION
NoZZle & Venturi Housing
Nut - Ferrule
Cone Screen
Flow Plug, .3 gpm
Nozzle and Venturi - Gasket Kit
Flow Plug, .1 gpm
Screen
Screen Support
O-ring, 1-1/8 x 1-3/8
Cap
Wave Washer
Valve Cover
Screw, #10 x 2-5/8 (8 req.)
Switch
Screw, #4-24 x 3/4 (2 req.)
Reducer Bushing, 1" x 3/4" (2
req.)
Bypass Valve • (Includes follow-
_ing parts)
Stem
O-ring, 1.109 I.D. x 1.387 O.D. (4)
C-ring
Nozzle & Venturi Assy. (incl. Key
Nos, 80, and 82 through 89)
Seal Kit (incl. Key Nos. 60, 61, 64,
65, 66 and 77).
Drain Tubing, 3/8" I.D. x 20' []•
Drain Hose, 5/8" I.D. x 15' •
[] 7' length included with softener
• included with model 625.388450
6-6
To Next Page
