10. Wired Keypad (optional)

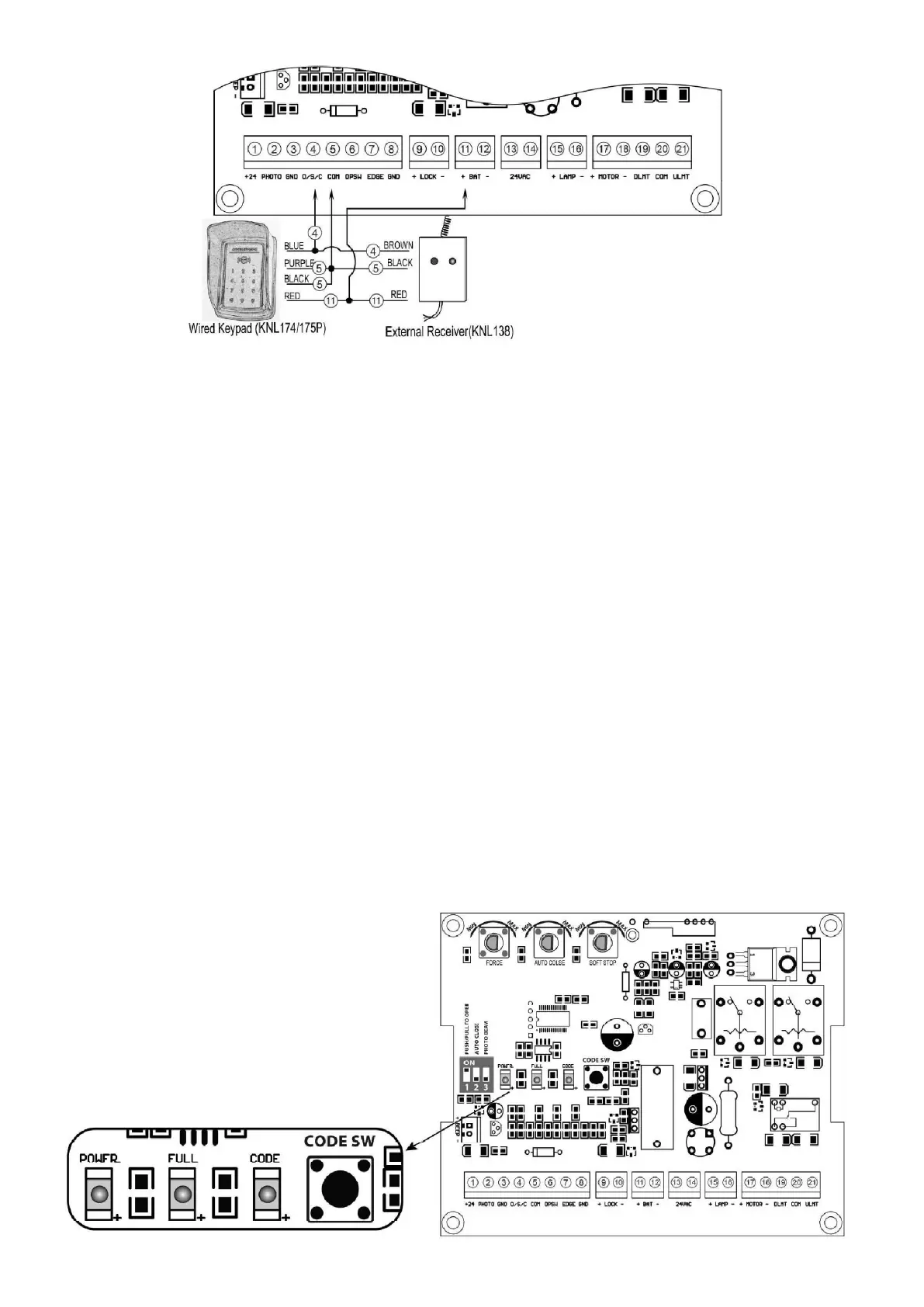

The RED wire of the wired keypad should be connected into the “#11” terminal.
The BLACK wire of the wired keypad should be connected into the “#5” terminal.
The PURPLE wire of the wired keypad should be connected into the “#5” terminal.
The BLUE wire of the wired keypad should be connected into the “#4” terminal.
11. External receiver (optional)
The RED wire of the external receiver should be connected into the “#11” terminal.
The BLACK wire of the external receiver should be connected into the “#5” terminal.
The BROWN wire of the external receiver should be connected into the “#4” terminal.
Note: Using of the exit wand, keypad and external receiver would cause the battery exhausted quickly.
Big capacity of battery and big power of solar panel (if the solar panel is used as main charger) is
required if you want to use either of them.
How to Program the Remote to the Opener
You must program the remote to the opener before operating. You can follow the below steps to program the
remote to the opener.
Press and release the CODE SW button, the CODE LED will be ON, then press the key in the remote twice in 4
seconds, the CODE LED will flash for 3 seconds and then to OFF. Now the remote has been programmed
successfully.
NOTE: The button of the remote control should be pressed and hold for more than 2 seconds while
programming. Max. 10 remotes can be programmed for the opener. If you want program more remotes, you
should use an optional external receiver.
To Next Page
