DMF-9020/MD-2070 (En)
29
6
8
7
Recording is not possible if the following characters are displayed.
“DISC FULL” : Disc is full
\ Erase undesired tracks.
‚w
“UNLOCK” : The digital cord or optical fiber cable is not locked
in position or connected incompletely (or not
connected).
\ Connect the digital cord or optical fiber cable
properly.
0
“SCMS ON” : Digital recording is inhibited by SCMS.
\ Use analog recording.
§
“NotAudio” : The digital signal being input is not an audio
signal.
\ Use analog recording.
§
“PROTECTED” : The accidental erasure protect tab is open.
\ Close it.
8
“PLAY ONLY” : The disc in use is a playback-only Mini Disc.
\ Use a recordable Mini Disc.
Start recording.
During recording of a CD, the track number may be incremented by “1” at the moment the CD starts to play. This is caused by a signal
contained in the digital signal component of the CD. Unnecessary track numbers can be erased by following the procedure for “Erasing the
track being played (TRACK ERASE).”
‚
While “WRITING” is displayed, do not apply shock
or vibration to the unit because information is
being written on the Mini Disc.
Play the source to be recorded.
After recording, eject the Mini Disc.
÷To play a track with a margin from the beginning, it is recommended to
start playing the source after the time display of the MD recorder has
started the count.
÷When the EDIT / SPACE key is pressed during recording, a track
number is inserted in that position.
÷When recording is restarted after record-pause, the track number is
incremented automatically by “1”.
÷The eject (0) key is not accepted during recording.
Information is
being written.
Mini Disc has been ejected.

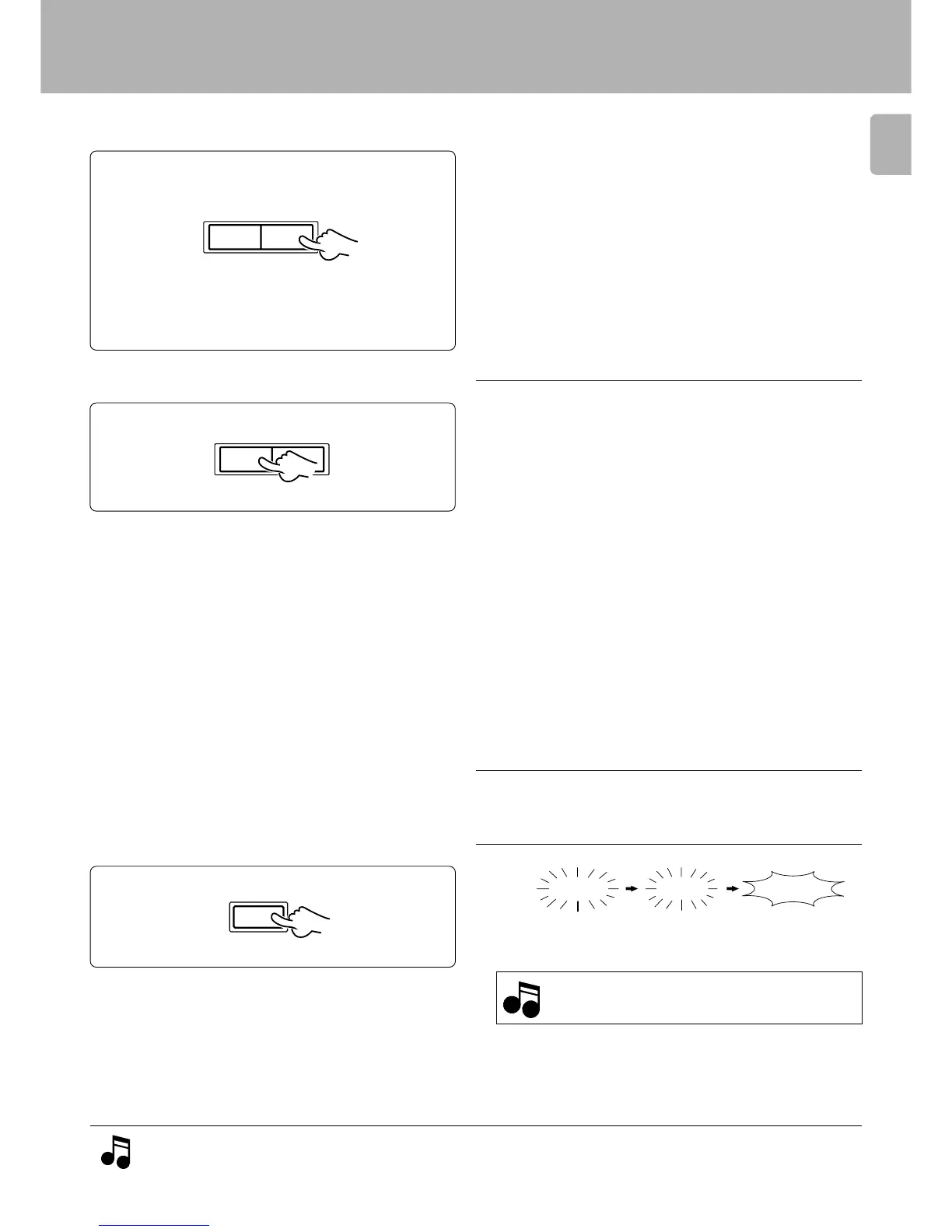

Recording (DIGITAL input)
N
ODI
S
C
WRITING EJECT
NoteNote
Note
Adjust the digital source recording level.
1
Play the source to be recorded.
2
Press the ¶ key.
3
Adjust the recording level.
5
÷The unit enters record-pause mode automatically when the ¶ key is
pressed.
÷Decrease the level if the red segments of the peak level meter light.
Set the REC MODE key to ON, select the “D.REC
LEVEL?” setting adjustment display and vary the set-
ting using the JOG DIAL.
8¶
8¶
0

Kenwood DMF-9020 Specifications

Digital Audio System

playing rotation	Approx. 400 rpm ~ 900 rpm (CLV)
frequency response (playback mode)	8 Hz ~ 20 kHz (± 1 dB)
signal to noise ratio (playback mode)	More than 112 dB

D/A and A/D Conversion

D/A conversion	1 Bit (24 bit type)
oversampling	8 fs (352.8 kHz)
A/D converter	4th order sigma-delta conversion+ D.R.I.V.E. conversion

Input and Output

analog input sensitivity / input impedance	500 mV / 22 kW
analog output level / output impedance	2.0 V / Less than 300 W
headphone output	50 mW/32 W load (Phones level MAX)

General Specifications

power consumption	20 W
dimensions	W: 440 mm, H: 125 mm, D: 373 mm
weight (net)	5.4 kg (11.9 lb)
