Basic Operations
6
Basic Operations

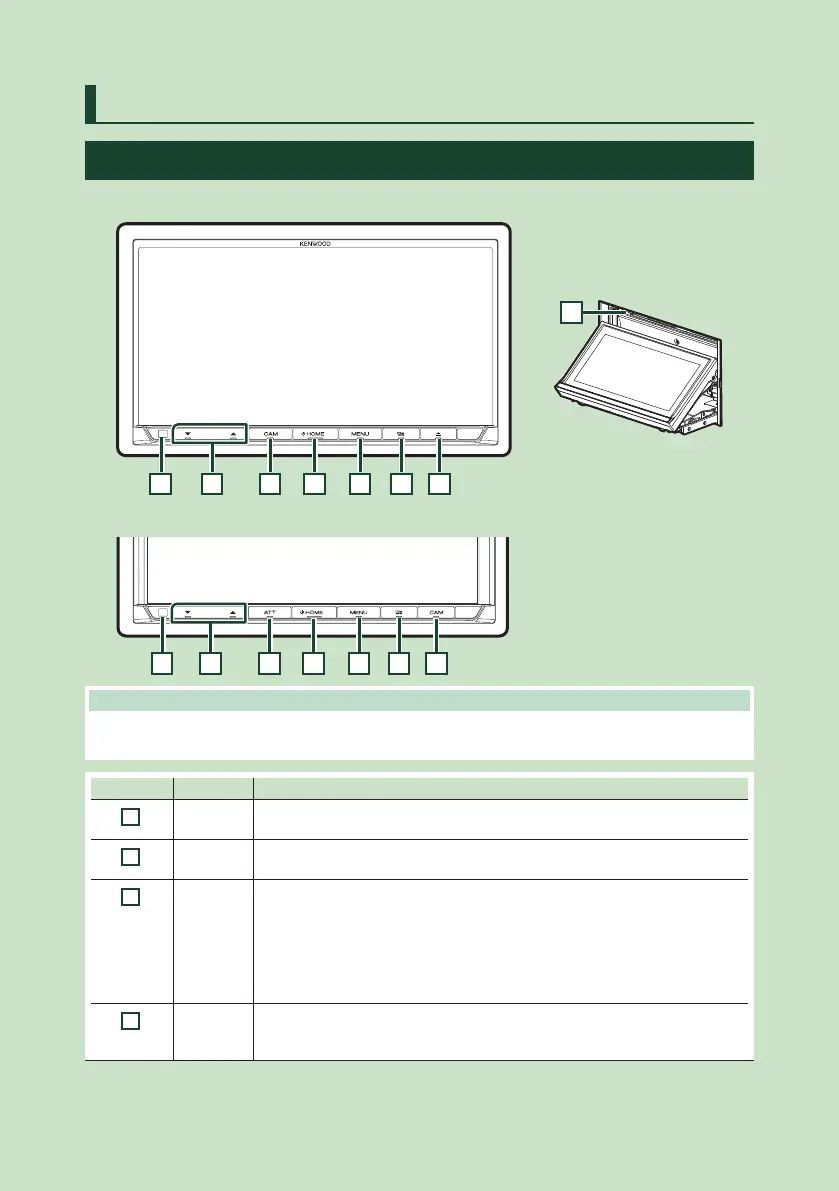

Functions of the Buttons on the Front Panel
DDX9907XR / DDX9707S
9
1 2 3 4 5 6 7
DMX957XR / DMX907S / DMX9707S
1 2 8 4 5 6 3
NOTE
• The panels shown in this manual are examples used to provide a clear explanation of operations. For this reason,
they may be different from the actual panels.
Number Name Motion
1
Remote
Sensor
• Receives the remote control signal.
2
S, R
(Volume)
• Adjusts the volume.
The volume will go up to 15 when you keep pressing R. (P.9)
3
CAM • Switches view camera display on/off.
The camera whose view is displayed first changes according to the "Camera Setup"
setting and the shift lever position in the shift gate. The camera whose view was
displayed last is kept and the same camera view will be displayed the next time. If its
assignment setting is changed, the rear camera view is displayed.
• Pressing and holding turns the screen off. (DDX9907XR / DDX9707S)
• Pressing and holding displays the Angle Adjust screen. (DMX957XR only)
4
HOME • Displays the HOME screen (P.11).
• Pressing for 1 second turns the power off.
• When the power is off, turns the power on.
