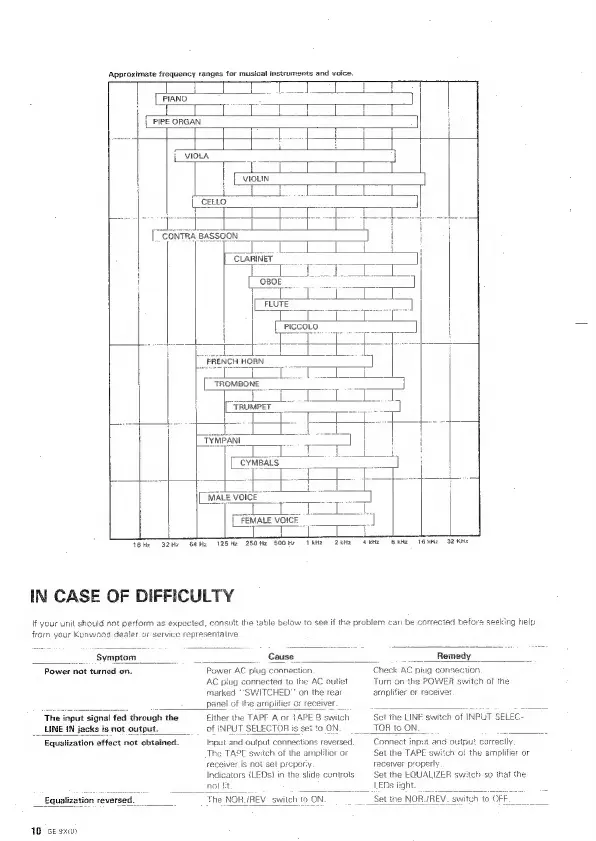

Kenwood GE-9X User Manual

Approximate frequency ranges for musical instruments and voice.
| [Piano an iF |
Pest
{_ PIPE ORGAN = ] H
L_vIOLA ; ; is]
7 ms -
{ PE viouin
VOICE,
[FEMALE VOICE
ALE VOICE,
Ter, a2; GaHe 125M, 250Hz SOOHs The 2kHz kHz BkHz 16k: 32 KHr
IN CASE OF DIFFICULTY
If your unit should not perform as expected, can:
from your Kenwood dealer or service representative
the table below to see if the problem can be corrected before seeking help
a _ Cause _ ; _____ Remedy _
Power AC piug connection Che
AC piug connected to the AC outiet turn
marked SWITCHED" on the rear
_ _ __panel of the ampiifier ov receiver.
The input signal fed through the Either the TAPE A or 1APE 8 switch
_LINE IN jacks is not output. of INPUT SELECTOR is sett ON.
Equalization effect not obtained. Input and output connections reversed.
Symptom
Power not turned on.
AC piug connection
i the POWER switch of the
output correctly.
ch of the ampl
receiver is not sel properly
iver properly.
Indicators {LEDs} in the slide controls the EQUALIZER switch so that the
10 Ge sxin

Kenwood GE-9X Specifications

Equalizer Characteristics

variable range	+12 dB
total harmonic distortion	0.006% at 20 Hz to 20 kHz
maximum output voltage	9 V at 1 kHz, 0.01% THD

Frequency Response

frequency response	10 Hz to 30 kHz, +0 dB, -1 dB
signal to noise ratio	+103 dB at 1 V
attenuator (ATT)	-6 dB

Impedance

input impedance	50 kohms
output impedance	600 ohms
insertion loss	0 dB (all controls defeated)

Power and Dimensions

power consumption	0.15 A (U.S.A.) / 17 W (Others)
dimensions (W x H x D)	440 mm x 109 mm x 315 mm
weight	4.4 kg
