Kenwood GE-9X User Manual

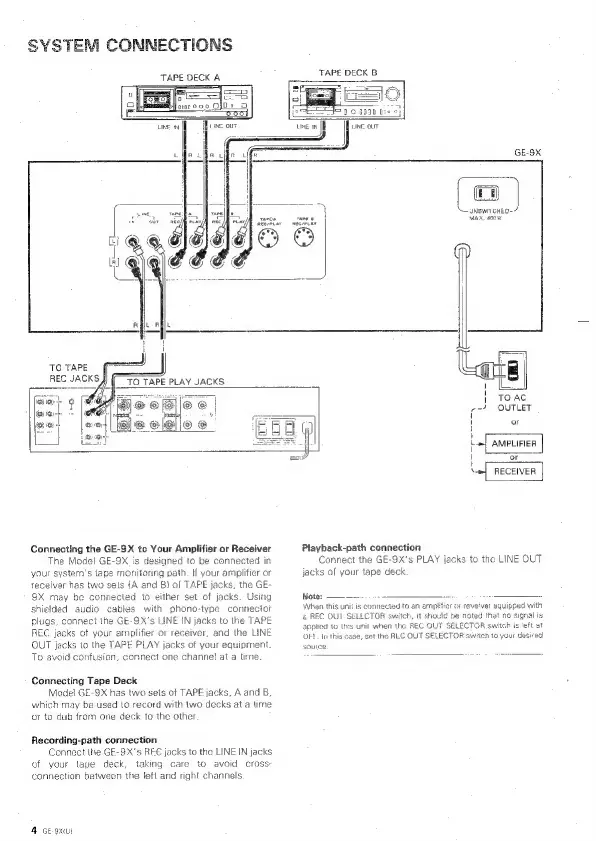

SYSTEM CONNECTIONS
TAPE DECK A
TAPE DECK B
TO TAPE
REC JACKS
\Sunswi cHEo-7
MAX. 400%
TO AC
OUTLET
or
Connecting the GE-3X to Your Amplifier or Receiver
The Model GE-9X is designed to be connected in
your system's tape monitoring path. Hf your amplifier or
receiver has two sels (A and B) of TAPE jacks, the GE-
9X may be connected te either set of jacks. Using
shielded audio cables with phono-type connector
plugs, connect the GE-9X’s LINE IN jacks to the TAPE
REC jacks ot your arnplifier or receiver, and the LINE
OUT jacks to the TAPE PLAY jacks of your equipment.
To avoid confusion, connect one channe! at a time.
Connecting Tape Deck
Model GE-9X has two sets of TAPE jacks, A and B,
which may he used lo record with two decks at a time
or to dub from one deck to the other
Recording-path connection
Connect lhe GE-9X’s REC jacks to the LINE IN jacks
of your tape deck, taking care to avoid cross-
connection between the lefl and right channels.
4 Geax
or
i
foc
E AMPLIFIER
; I
'
\-e| RECEIVER
Piayback-path connection
Connect the GE-9X's PLAY jacks to the LINE OUT
jacks of your tape deck.
Note: — ~ 2s 2
When this unit is ted to an amplitier or reveiver equipped with
& REC OUI SELECTOR switch, it should be noted that no His
applied to Uns unit when the REC OUT SELECTOR. switch is ieft at
OF! . In this case, set the RLC OUT SELECTOR switen to your desired
source.

Kenwood GE-9X Specifications

Equalizer Characteristics

variable range	+12 dB
total harmonic distortion	0.006% at 20 Hz to 20 kHz
maximum output voltage	9 V at 1 kHz, 0.01% THD

Frequency Response

frequency response	10 Hz to 30 kHz, +0 dB, -1 dB
signal to noise ratio	+103 dB at 1 V
attenuator (ATT)	-6 dB

Impedance

input impedance	50 kohms
output impedance	600 ohms
insertion loss	0 dB (all controls defeated)

Power and Dimensions

power consumption	0.15 A (U.S.A.) / 17 W (Others)
dimensions (W x H x D)	440 mm x 109 mm x 315 mm
weight	4.4 kg
