Kenwood GE-9X User Manual

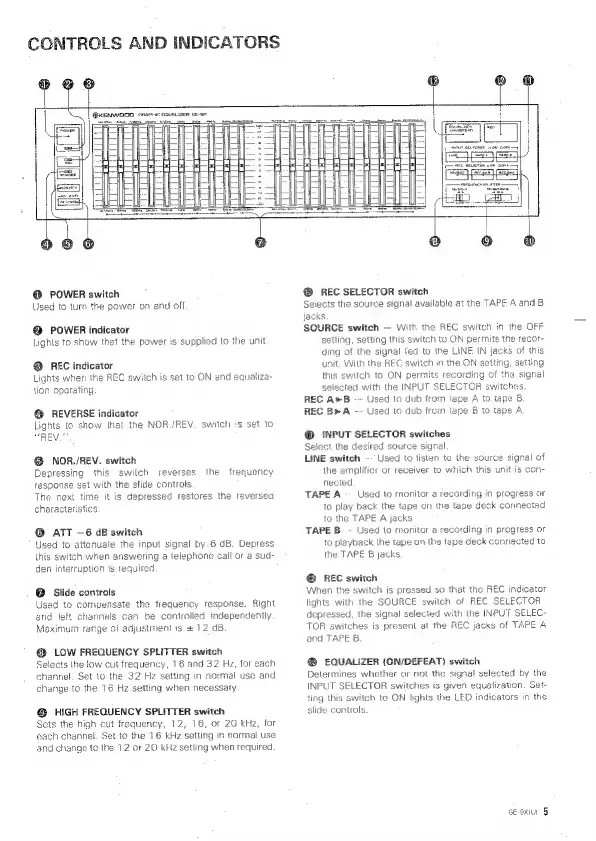

CONTROLS AND INDICATORS
yore
| ST eeexwone eee Doan
|
i
rc
@ POWER switch
Used to ture the power on and off
@ POWER indicator
Lighls to show that the power is supplied to the unit
@ REC indicator
Lights when the REC switch is set to ON and equatiza-
tian operating,
€) REVERSE indicator
Lights to show that the NOR.JREV
“REV.
switch :s set 16
@ NOR./REV. switch
Depressing this swilch reverses the
response set with the slide controls
The next time it is depressed restores the reversed
characteristics
frequency
@ ATT —6 dB switch
Used to attenuate the inpul signal by.6 dB. Depress
lhis switch when answering a leiephone call or a sud-
den interruption is required :
@ Slide controls
Used to compensate the frequency response. Right
and ieft charinels can be controlled independently
Maximum range of adjustment 1s + 12 dB.
@ LOW FREQUENCY SPLITTER switch
Selects Ihe low cut frequency, 16 and 32 Hz, for each
channel) Set to the 32 Hz setting in normal use and
change to the 16 Hz setting when necessary
@ HIGH FREQUENCY SPLITTER switch
Sets the high cut frequency, 12, 16, or 2G kHz, for
each channel. Set to the 16 kHz setting in normal use
and change to the 12 or 20 kHz setling when required.
@® REC SELECTOR switch
Seiects the source signal available at the TAPE A and B
jacks
SOURCE switch — With the REC switch in the OFF
selling, setting this switch to ON permits the recor-
g of the signal fed to the LINE IN jacks of this
unit. Wilt the REC switch in the ON setting, setting
itch to ON permits recording of the sens!
s ed with the INPUT SELECTOR switches
REC AwB ~ Used to dub from tape A to tape 3.
REC B» A -- Used to dub from tape B to tape A,
@ iNPUT SELECTOR switches
Select the desired source signal.
LINE switch ~~ Used to tisten to the source signal of
the amplifier or receiver to which this unit is con-
nected
TAPE A. Used to monitor a recording in progress or
to play back the tape on the tape deck connected
to the TAPE A jacks
TAPE B - Used to monitor a recording in progress or
to playback the tape on the tape deck connected to
the TAPE B jacks.
@ REC switch
When the switch is pressed so that the REC indicator
lights with the SOURCE switch of REC SELECTOR
ed with the INPUT SELEC-
TOR switches is present at the REC jacks of TAPE A
and TAPE B.
® EQUALIZER {ON/DEFEAT) switch
Delermines whether or not the signal selected by the
INPUT SELECTOR switches is given equalization. Set-
ting this switch te ON lights the LED indicators in the
slide controls
GEaxu &

Kenwood GE-9X Specifications

Equalizer Characteristics

variable range	+12 dB
total harmonic distortion	0.006% at 20 Hz to 20 kHz
maximum output voltage	9 V at 1 kHz, 0.01% THD

Frequency Response

frequency response	10 Hz to 30 kHz, +0 dB, -1 dB
signal to noise ratio	+103 dB at 1 V
attenuator (ATT)	-6 dB

Impedance

input impedance	50 kohms
output impedance	600 ohms
insertion loss	0 dB (all controls defeated)

Power and Dimensions

power consumption	0.15 A (U.S.A.) / 17 W (Others)
dimensions (W x H x D)	440 mm x 109 mm x 315 mm
weight	4.4 kg
