Kenwood KR-694 User Manual

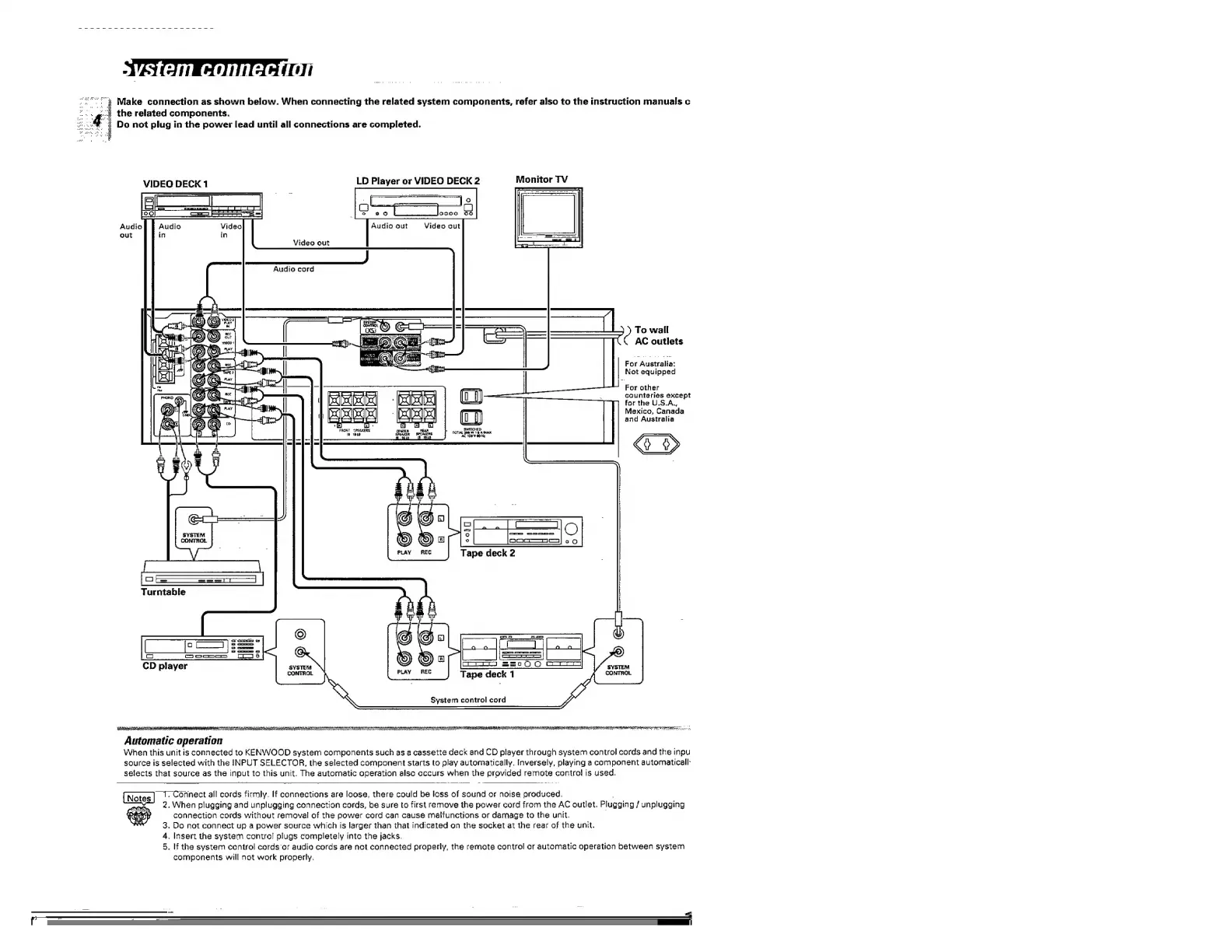

*"g Make connection as shown below. When connecting the related system components, refer also to the instruction manuals c
4 the related components.
¢ Do not plug in the power lead until all connections are completed.
VIDEO
DECK
1
LD
Player
or
VIDEO
DECK
2
Monitor
TV
Audio Audio Video Audio out Video out
out fin in
Video out
Audio cord
m5 * 1 ee
( Oz WwEO (|
_ Sy
}) To wall
le a
iDat re 2 CE AC outlets
% r For Australia:
bs Gaia
Not equipped
For other
counteries except
for the U.S.A.,
Mexico, Canada
and Australia
pea isaad
Bx
[
a Dz
bee
ie
TWIICHED
al 128 ¥ 80 Hz
ae ore,
oO
Turntable
tae S
Oo
ool
:
3
£
‘))
CD player SYSTEM
CONTROL CONTROL
Automatic operation
When this unit is connected to KENWOOD system components such as a cassette deck and CD player through system control cords and the inpu
source is selected with the INPUT SELECTOR, the selected component starts to play automatically, Inversely, playing a component automaticall:
selects that source as the input to this unit. The automatic operation also occurs when the provided remote cone! is used.
[Notes] J Connect all cords firmly. If connections are loose, there could be loss of sound or noise Sroducedl
2. When plugging and unplugging connection cords, be sure to first remove the power cord from the AC outlet. Plugging / unplugging
connection cords without removal of the power cord can cause malfunctions or damage to the unit.
3. Do not connect up a power source which is larger than that indicated on the socket at the rear of the unit.
4. Insert the system control plugs completely into the jacks.
5. lf the system control cords‘or audio cords are not connected properly, the remote contro! or automatic operation between system
components will not work properly,
