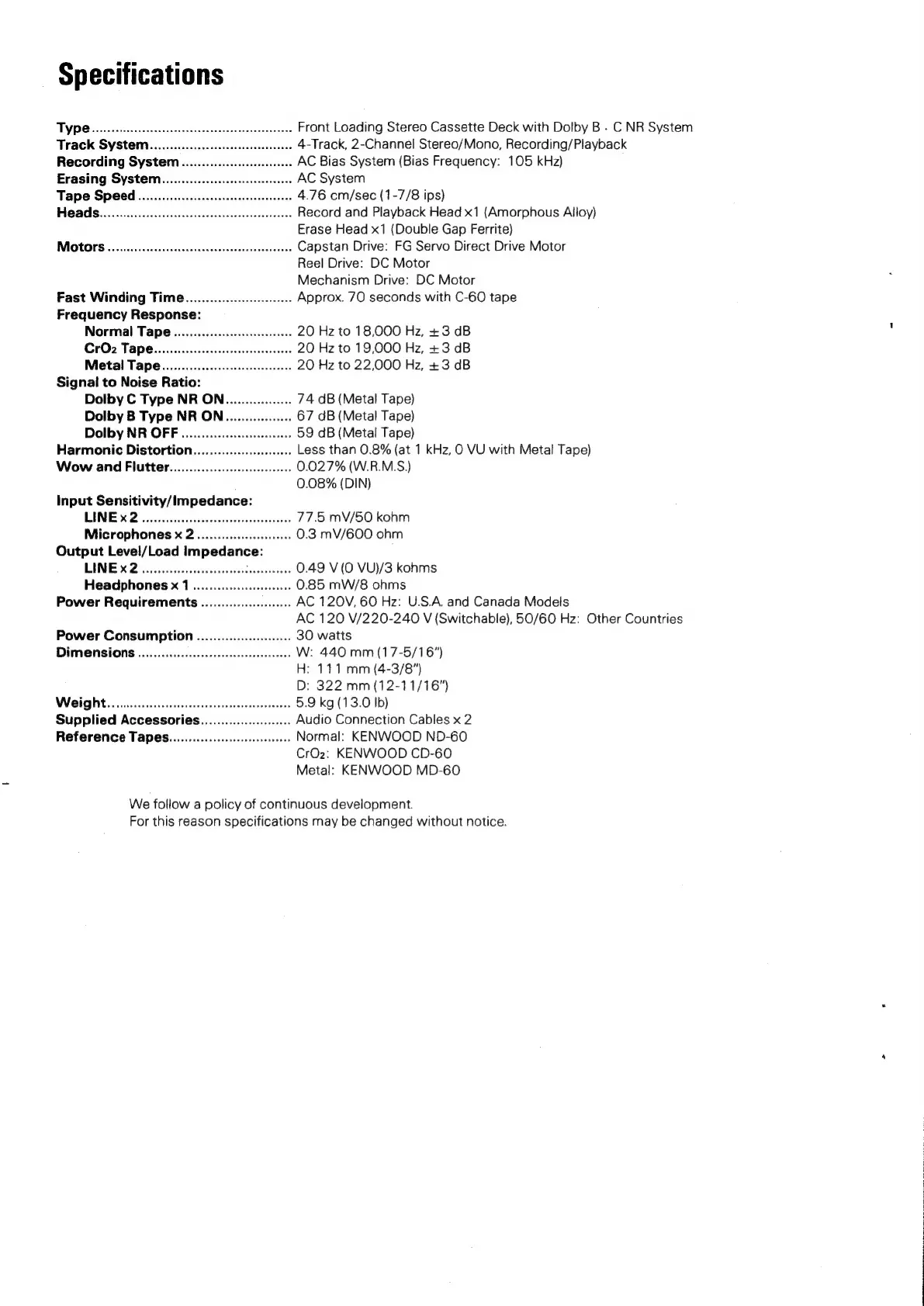

Specifications
TY PGs d iiisiiasies cal aie ads cebeseievetaatk Front Loading Stereo Cassette Deck with Dolby B - C NR System
Track System...............cccccessssserenseeee 4-Track, 2-Channel Stereo/Mono, Recording/Playback
Recording System. ..............::::cce eee AC Bias System (Bias Frequency: 105 kHz)
Erasing System.................ccsecceeeeeees AC System
Tape Speed ...........cc cece ceceeeseseenseenes 4.76 cm/sec (1-7/8 ips)
Heads..2255.cacutiiiew ite tercack: Record and Playback Head x1 (Amorphous Alloy}
Erase Head x1 (Double Gap Ferrite}
Motors. isso adannnreaavns Capstan Drive: FG Servo Direct Drive Motor
Reel Drive: DC Motor
Mechanism Drive: DC Motor
Fast Winding Time...................00 Approx. 70 seconds with C-60 tape
Frequency Response:
Normal Tape .................:::::ceeee 20 Hz to 18,000 Hz, +3 dB
CrO2 Tape...cssrcccccscsccrersrscsssccsens 20 Hz to 19,000 Hz, +3 dB
Metal Tape................--eeeeeeneees 20 Hz to 22,000 Hz, +3 dB
Signal to Noise Ratio:
Dolby C Type NR ON.................. 74 dB (Metal Tape)
Dolby B Type NR ON.................. 67 dB (Metal Tape)
Dolby NR OFF ..............:ccccccseees 59 dB (Metal Tape)
Harmonic Distortion.......................: Less than 0.8% (at 1 kHz, O VU with Metal Tape)
Wow and Flutter............. cree 0.027% (W.R.M.S.)
0.08% (DIN)
Input Sensitivity/Impedance:
LINE X 2 vicsscissisnssscecesceveiossseeseveres 77.5 mV/50 kohm
Microphones x 2 ............ccccccceeees 0.3 mV/600 ohm
Output Level/Load Impedance:
LINE X.2 siisesssdsccvsevcsvecevens stesoctscveds 0.49 V(O VU)/3 kohms
Headphones * 1..............cccceeseee 0.85 mW/8 ohms
Power Requirements ...................55 AC 120V, 60 Hz: U.S.A. and Canada Models
AC 120 V/220-240 V (Switchable), 50/60 Hz: Other Countries
Power Consumption .............0cce 30 watts
Dimensions ..................02ccccceeeeeeeeeeees W: 440 mm (17-5/16")
H: 111 mm (4-3/8")
D: 322 mm (12-11/16")
Weight..s.iccccaiencdundiiac 5.9 kg (13.0 Ib)
Supplied Accessories....................5 Audio Connection Cables x 2
Reference Tapes..............ccceseeee Normal: KENWOOD ND-60
CrOz: KENWOOD CD-60
Metal: KENWOOD MD-60
We follow a policy of continuous development.
For this reason specifications may be changed without notice.

Kenwood KX-880G Specifications

Power

power requirements	AC 120V, 60 Hz: U.S.A. and Canada Models, AC 120 V/220-240 V (Switchable), 50/60 Hz: Other Countries
power consumption	30 watts

Audio Specifications

frequency response normal tape	20 Hz to 18, 000 Hz, +3 dB
frequency response CrO2 tape	20 Hz to 19, 000 Hz, +3 dB
frequency response metal tape	20 Hz to 22, 000 Hz, +3 dB
signal to noise ratio Dolby C Type NR ON	74 dB (Metal Tape)
signal to noise ratio Dolby B Type NR ON	67 dB (Metal Tape)
signal to noise ratio Dolby NR OFF	59 dB (Metal Tape)
harmonic distortion	Less than 0.8% (at 1 kHz, O VU with Metal Tape)
wow and flutter	0.027% (W.R.M.S.), 0.08% (DIN)

Input and Output

input sensitivity/impedance line	77.5 mV/50 kohm
input sensitivity/impedance microphones	0.3 mV/600 ohm
output level/load impedance line	0.49 V(O VU)/3 kohms
output level/load impedance headphones	0.85 mW/8 ohms

Weight and Dimensions

dimensions	W: 440 mm, H: 111 mm, D: 322 mm
weight	5.9 kg
