Kenwood KX-880G User Manual

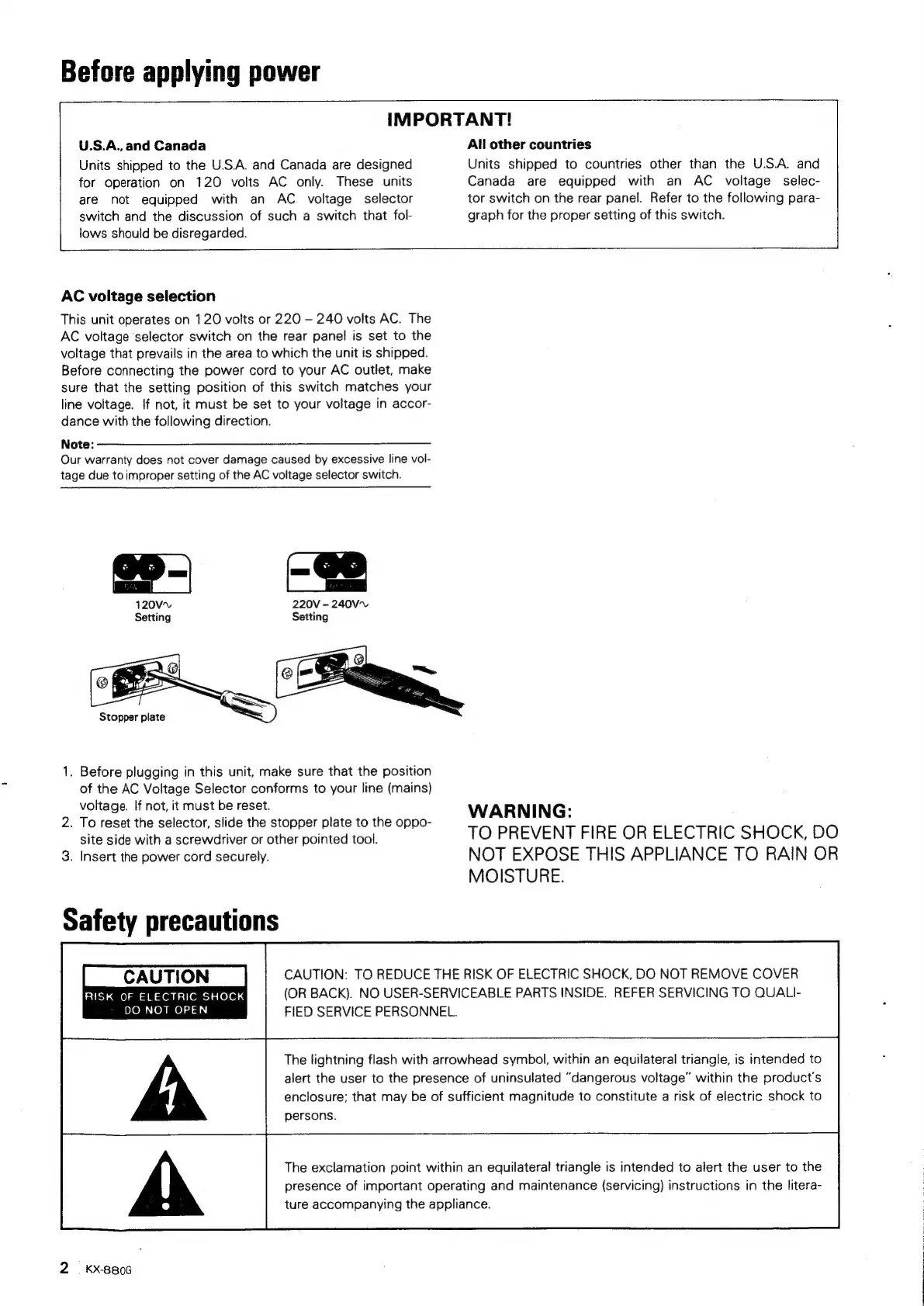

Before applying power
IMPORTANT!
U.S.A., and Canada All other countries
Units shipped to the U.S.A. and Canada are designed Units shipped to countries other than the U.S.A. and
for operation on 120 volts AC only. These units Canada are equipped with an AC voltage selec-
are not equipped with an AC. voltage selector tor switch on the rear panel. Refer to the following para-
switch and the discussion of such a switch that fol- graph for the proper setting of this switch.
[ lows should be disregarded.
AC voltage selection
This unit operates on 120 volts or 220 — 240 volts AC. The
AC voltage selector switch on the rear panel is set to the
voltage that prevails in the area to which the unit is shipped.
Before connecting the power cord to your AC outlet, make
sure that the setting position of this switch matches your
line voltage. If not, it must be set to your voltage in accor-
dance with the following direction.
Note:
Our warranty does not cover damage caused by excessive line vol-
tage due to improper setting of the AC voltage selector switch.
220V - 240V~
Setting
Stopper plate
1. Before plugging in this unit, make sure that the position
of the AC Voltage Selector conforms to your line (mains)
voltage. If not, it must be reset. ;
2. To reset the selector, slide the stopper plate to the oppo- Aseptic FIRE OR ELECTRIC SHOCK, DO
site side with a screwdriver or other pointed tool.
3. Insert the power cord securely. NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
Safety precautions
CAUTION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
RISK OF ELECTRIC SHOCK (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALI-
DO NOT OPEN FIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of uninsulated “dangerous voltage” within the product's
enclosure; that may be of sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the litera-
ture accompanying the appliance.
2 = «KX-8806

Kenwood KX-880G Specifications

Power

power requirements	AC 120V, 60 Hz: U.S.A. and Canada Models, AC 120 V/220-240 V (Switchable), 50/60 Hz: Other Countries
power consumption	30 watts

Audio Specifications

frequency response normal tape	20 Hz to 18, 000 Hz, +3 dB
frequency response CrO2 tape	20 Hz to 19, 000 Hz, +3 dB
frequency response metal tape	20 Hz to 22, 000 Hz, +3 dB
signal to noise ratio Dolby C Type NR ON	74 dB (Metal Tape)
signal to noise ratio Dolby B Type NR ON	67 dB (Metal Tape)
signal to noise ratio Dolby NR OFF	59 dB (Metal Tape)
harmonic distortion	Less than 0.8% (at 1 kHz, O VU with Metal Tape)
wow and flutter	0.027% (W.R.M.S.), 0.08% (DIN)

Input and Output

input sensitivity/impedance line	77.5 mV/50 kohm
input sensitivity/impedance microphones	0.3 mV/600 ohm
output level/load impedance line	0.49 V(O VU)/3 kohms
output level/load impedance headphones	0.85 mW/8 ohms

Weight and Dimensions

dimensions	W: 440 mm, H: 111 mm, D: 322 mm
weight	5.9 kg
