Kenwood KX-880G User Manual

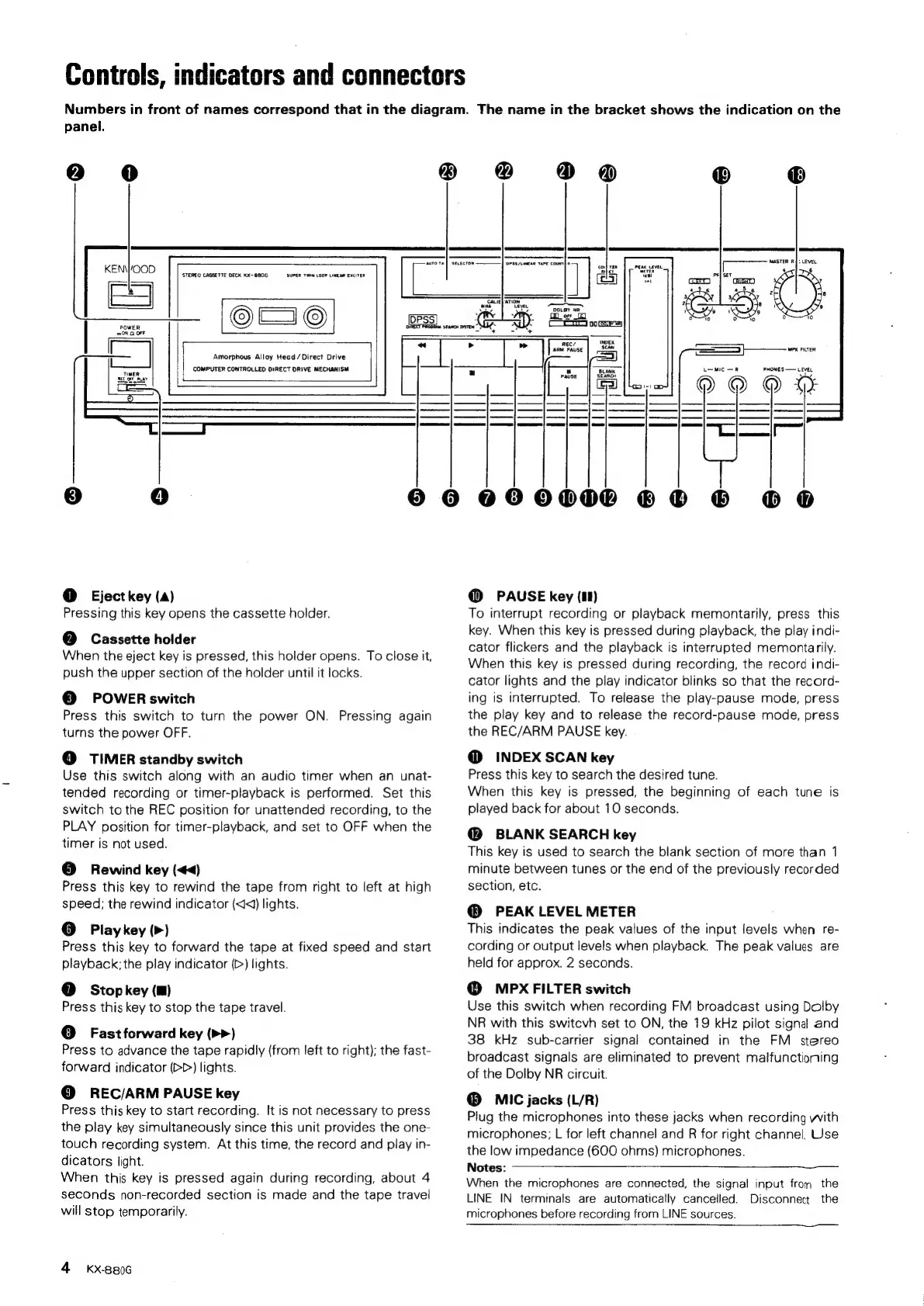

Controls, indicators and connectors
Numbers in front of names correspond that in the diagram. The name in the bracket shows the indication on the
panel.
eo 90
KENWOOD
STEREO CASSETTE DECK Kx- 8806
(oj== Ko)
SUPER TWH LOOP LINEAR EXCITER
® ® @ @
PEAK LEVEL
METER
tai
Amorphous Alloy Head / Direct Drive
COMPUTER CONTROLLED DIRECT ORIVE MECHANISM
@ Eject key (a)
Pressing this key opens the cassette holder.
@ Cassette holder
When the eject key is pressed, this holder opens. To close it,
push the upper section of the holder until it locks.
@ POWER switch
Press this switch to turn the power ON. Pressing again
turns the power OFF.
@ TIMER standby switch
Use this switch along with an audio timer when an unat-
tended recording or timer-playback is performed. Set this
switch to the REC position for unattended recording, to the
PLAY position for timer-playback, and set to OFF when the
timer is not used.
@ Rewind key (<<)
Press this key to rewind the tape from right to left at high
speed; the rewind indicator (<<) lights.
© Playkey (>)
Press this key to forward the tape at fixed speed and start
playback; the play indicator (>) lights.
@ Stopkey (m)
Press this key to stop the tape travel.
© Fastforward key (>>)
Press to advance the tape rapidly (from left to right); the fast-
forward indicator (>>) lights.
@ REC/ARM PAUSE key
Press this key to start recording. It is not necessary to press
the play key simultaneously since this unit provides the one-
touch recording system. At this time, the record and play in-
dicators light.
When this key is pressed again during recording, about 4
seconds non-recorded section is made and the tape travel
will stop temporarily.
4 kx-8806
———
L—MIC —R PHONES — LEVEL
6 60 0800000 ©® © © O
@ PAUSE key (18)
To interrupt recording or playback memontarily, press this
key. When this key is pressed during playback, the play indi-
cator flickers and the playback is interrupted memontarily.
When this key is pressed during recording, the record indi-
cator lights and the play indicator blinks so that the record-
ing is interrupted. To release the play-pause mode, press
the play key and to release the record-pause mode, press
the REC/ARM PAUSE key.
@ INDEX SCAN key
Press this key to search the desired tune.
When this key is pressed, the beginning of each tune is
played back for about 10 seconds.
@ BLANK SEARCH key
This key is used to search the blank section of more than 1
minute between tunes or the end of the previously recorded
section, etc.
@ PEAK LEVEL METER
This indicates the peak values of the input levels when re-
cording or output levels when playback. The peak vaiues are
held for approx. 2 seconds.
@ MPX FILTER switch
Use this switch when recording FM broadcast using Dolby
NR with this switcvh set to ON, the 19 kHz pilot signal and
38 kHz sub-carrier signal contained in the FM stereo
broadcast signals are eliminated to prevent malfunctioning
of the Dolby NR circuit.
@® MIC jacks (L/R)
Plug the microphones into these jacks when recording with
microphones; L for left channel and R for right channel, Use
the low impedance (600 ohms) microphones.
Notes:
When the microphones are connected, the signal input fron the
LINE IN terminals are automatically cancelled. Disconnect the
microphones before recording from LINE sources.

Kenwood KX-880G Specifications

Power

power requirements	AC 120V, 60 Hz: U.S.A. and Canada Models, AC 120 V/220-240 V (Switchable), 50/60 Hz: Other Countries
power consumption	30 watts

Audio Specifications

frequency response normal tape	20 Hz to 18, 000 Hz, +3 dB
frequency response CrO2 tape	20 Hz to 19, 000 Hz, +3 dB
frequency response metal tape	20 Hz to 22, 000 Hz, +3 dB
signal to noise ratio Dolby C Type NR ON	74 dB (Metal Tape)
signal to noise ratio Dolby B Type NR ON	67 dB (Metal Tape)
signal to noise ratio Dolby NR OFF	59 dB (Metal Tape)
harmonic distortion	Less than 0.8% (at 1 kHz, O VU with Metal Tape)
wow and flutter	0.027% (W.R.M.S.), 0.08% (DIN)

Input and Output

input sensitivity/impedance line	77.5 mV/50 kohm
input sensitivity/impedance microphones	0.3 mV/600 ohm
output level/load impedance line	0.49 V(O VU)/3 kohms
output level/load impedance headphones	0.85 mW/8 ohms

Weight and Dimensions

dimensions	W: 440 mm, H: 111 mm, D: 322 mm
weight	5.9 kg
