Kenwood L-A1 User Manual

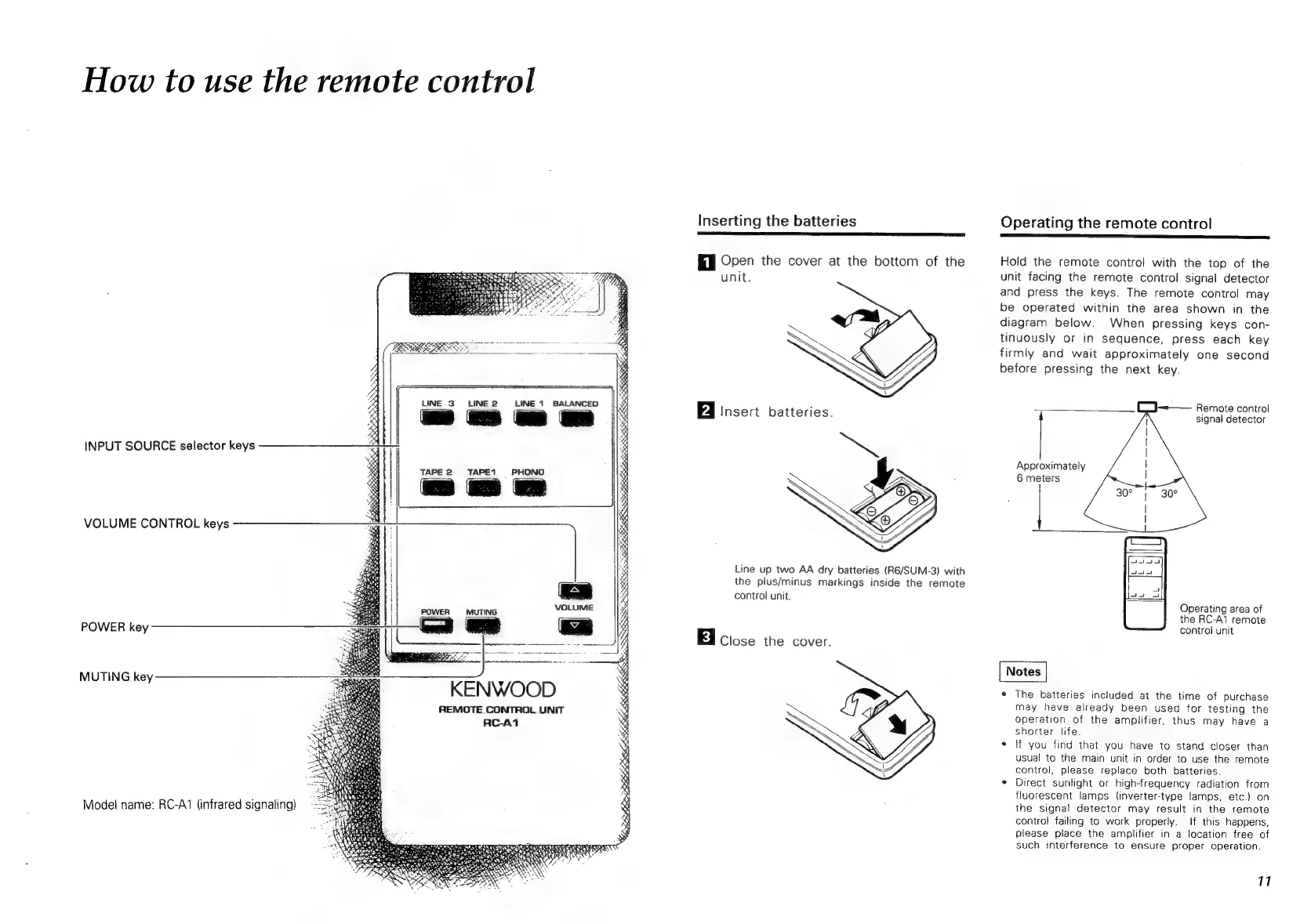

How to use the remote control
INPUT SOURCE selector keys
TAPE 2 TAPE1 PHONO
VOLUME CONTROL keys
POWER MUTING
POWER key
LINE 3. LINE 2 LINE 1 BALANCED
VOLUME
MUTING key
KENWOOD
REMOTE. CONTROL. UNIT
RC-A1
Model name: RC-A1 (infrared signaling)
EEE Ses KEES
So SILI
Inserting the batteries
EJ Open the cover at the bottom of the
unit.
Line up two AA dry batteries {R6/SUM-3) with
the plus/minus markings inside the remote
control unit.
EW close the cover.
Operating the remote control
A
Hold the remote control with the top of the
unit facing the remote control signal detector
and press the keys. The remote control may
be operated within the area shown in the
diagram below. When pressing keys con-
tinuously or in sequence, press each key
firmly and wait approximately one second
before pressing the next key.
J--—— Remote control
signal detector
Approximately
6 meters
Operating area of
the RC-A1 remote
control unit
Notes
¢ The batteries included at the time of purchase
may have already been used for testing the
operation of the amplifier, thus may have a
shorter life.
* If you find that you have to stand closer than
usual to the main unit in order to use the remote
control, please replace both batteries.
¢ Direct sunlight or high-frequency radiation from
fluorescent lamps (inverter-type lamps, etc.) on
the signal detector may result in the remote
control failing to work properly. If this happens,
please place the amplifier in a location free of
such interference to ensure proper operation.
11
