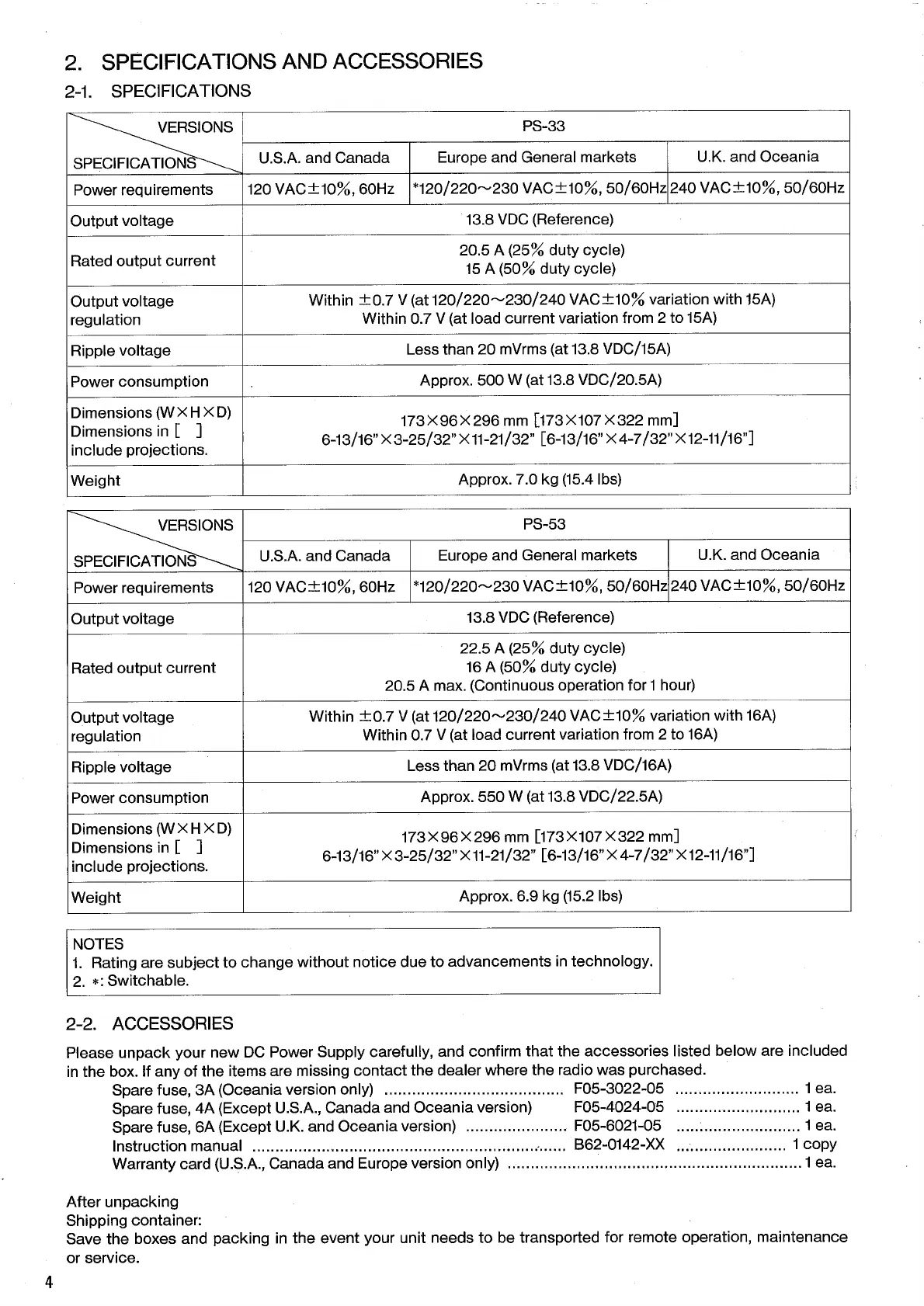

2. SPECIFICATIONS
AND
ACCESSORIES
2-1.
SPECIFICATIONS
VERSIONS
SPECIFICATIONS^-^
PS-33
VERSIONS
SPECIFICATIONS^-^
U.S.A.
and
Canada
Europe
and
General
markets
U.K.
and Oceania
Power
requirements
120VAC±10%,60Hz
*120/220~230
VAC±10%, 50/60Hz
240VAC±10%,50/60Hz
Output voltage
13.8 VDC
(Reference)
Rated
output
current
20.5
A
(25%
duty
cycle)
15
A
(50%
duty
cycle)
Output voltage
regulation
Within ±0.7 V (at
120/220~230/240
VAC±10% variation
with
15A)
Within 0.7 V (at load current variation
from
2 to
15A)
Ripple
voltage
Less
than 20 mVrms (at
13.8
VDC/15A)
Power
consumption
Approx. 500 W (at
13.8
VDC/20.5A)
Dimensions
(WXHXD)
Dimensions
in [ ]
include projections.
173X96X296
mm
[173X107X322
mm]
6-13/16"
X
3-25/32"
X11
-21
/32"
[6-13/16"
X
4-7/32"
X12-11
/16"]
Weight
Approx. 7.0 kg (15.4 lbs)
VERSIONS
SPECIFICATIONS'^^
PS-53
VERSIONS
SPECIFICATIONS'^^
U.S.A.
and
Canada
Europe
and
General
markets
U.K.
and Oceania
Power
requirements
120VAC±10%,60Hz
*120/220~230
VAC±10%, 50/60Hz
240
VAC±10%, 50/60Hz
Output voltage
13.8 VDC
(Reference)
Rated
output
current
22.5
A
(25%
duty
cycle)
16
A
(50%
duty
cycle)
20.5
A max. (Continuous operation for
1
hour)
Output voltage
regulation
Within ±0.7 V (at
120/220~230/240
VAC±10% variation
with
16A)
Within 0.7 V (at load current variation
from
2 to 16A)
Ripple
voltage
Less
than 20 mVrms (at
13.8
VDC/16A)
Power
consumption
Approx. 550 W (at
13.8
VDC/22.5A)
Dimensions
(WXHXD)
Dimensions
in [ ]
include projections.
173X96X296
mm
[173X107X322
mm]
6-13/16"
X
3-25/32"
X11-21
/32"
[6-13/16"
X
4-7/32"
X12-11
/16"]
Weight
Approx. 6.9 kg
(15.2
lbs)
NOTES
1.
Rating are subject to change
without
notice due to
advancements
in technology.
2.
*: Switchable.
2-2. ACCESSORIES
Please
unpack your new DC Power Supply carefully, and confirm that the
accessories
listed below are included
in the box. If any of the items are missing contact the dealer where the radio was purchased.
Spare
fuse,
3A
(Oceania
version
only)
F05-3022-05
1
ea.
Spare
fuse,
4A
(Except
U.S.A.,
Canada
and
Oceania
version)
F05-4024-05
1
ea.
Spare
fuse,
6A
(Except
U.K.
and
Oceania
version)
F05-6021-05
1
ea.
Instruction manual ,
B62-0142-XX
1
copy
Warranty card
(U.S.A.,
Canada
and
Europe
version only)
1
ea.
After unpacking
Shipping container:
Save
the boxes and packing in the event your
unit
needs to be transported for remote operation, maintenance
or
service.
