PREPARATION
INSTALLING ALKALINE BATTERIES

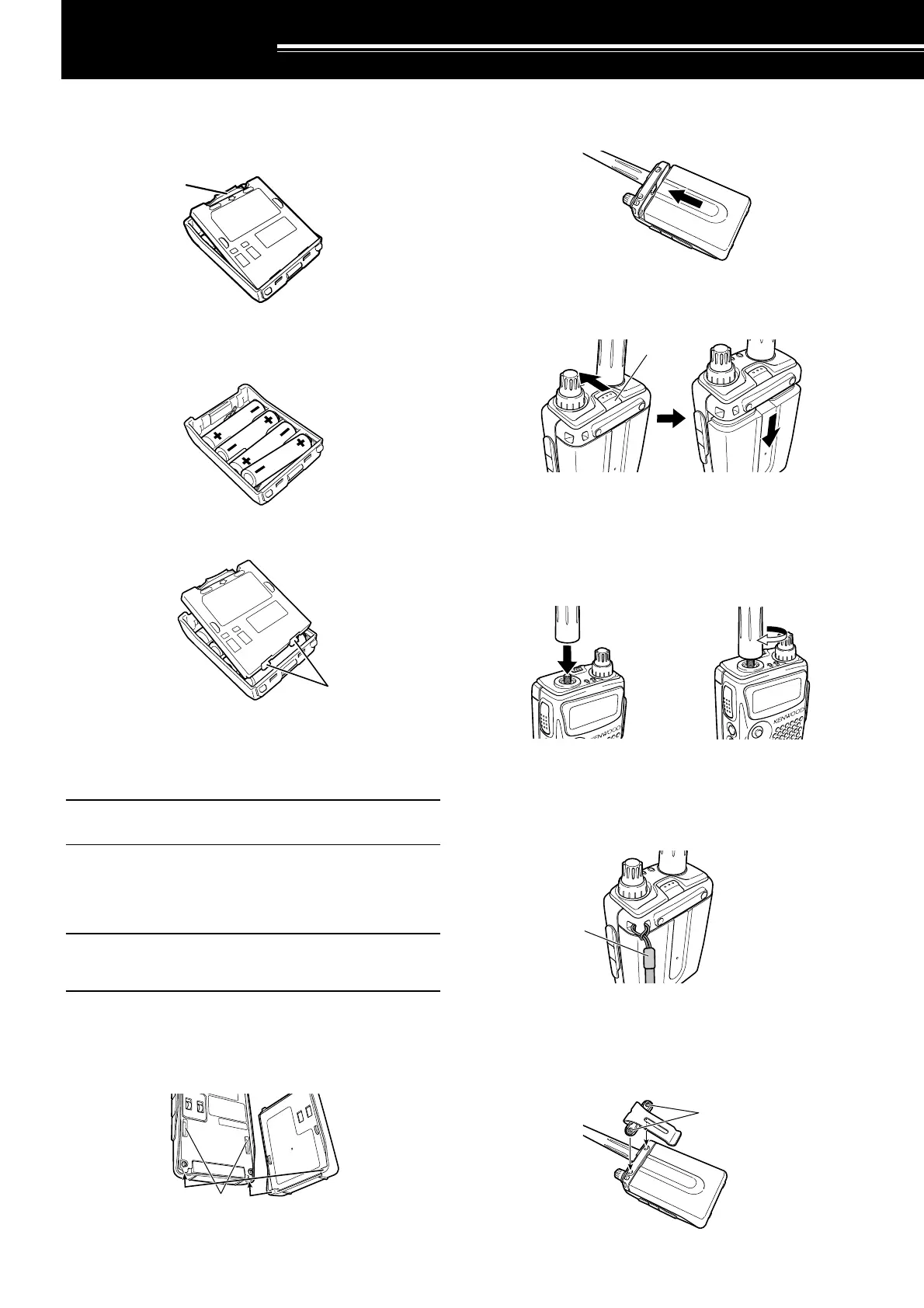

1 To open the battery case (BT-13), push the locking
tab in, then pull the cover back.
2 Insert (or remove) 4 AA (LR6) alkaline batteries.
• Be sure to match the battery polarities with
those marked in the bottom of the battery case.
3 Align the two tabs on the battery case cover, then
close the cover until the locking tabs click.
4 To install the battery case onto (or remove it from)
the transceiver, follow steps 1 to 3 of
“INSTALLING THE Li-ion BATTERY PACK”
{above}.
Note: When you use the alkaline batteries, access Menu No. 30
(BATTERY), then select “ALKALINE”. Otherwise, the battery
remaining cannot be measured correctly {page 34}.
INSTALLING THE OPTIONAL Li-ion
BATTERY PACK (PB-42L)
Note: Because the battery pack is provided uncharged, you must
charge the battery pack before using it with the transceiver. To
charge the battery pack, refer to “CHARGING THE OPTIONAL Li-
ion BATTERY PACK” {page 2}.
1 Position the two grooves on the edge and two
hooks at the bottom of the battery pack over the
corresponding guides on the back of the
transceiver.
2 Slide the battery pack along the back of the
transceiver until the release latch on the top of the
transceiver locks the battery pack in place.
3 To remove the battery pack, push the release latch
on top, then slide the battery pack down.
INSTALLING THE ANTENNA
Hold the base of the supplied antenna, then screw
the antenna into the connector on the top panel of the
transceiver until secure.
a
ATTACHING THE HAND STRAP
If desired, you can attach the supplied hand strap to
the transceiver.
INSTALLING THE BELT CLIP
You can install the supplied belt clip to the transceiver
tightening the 2 supplied screws.
Screws
Strap
Tabs
Tab
Grooves
Latch
