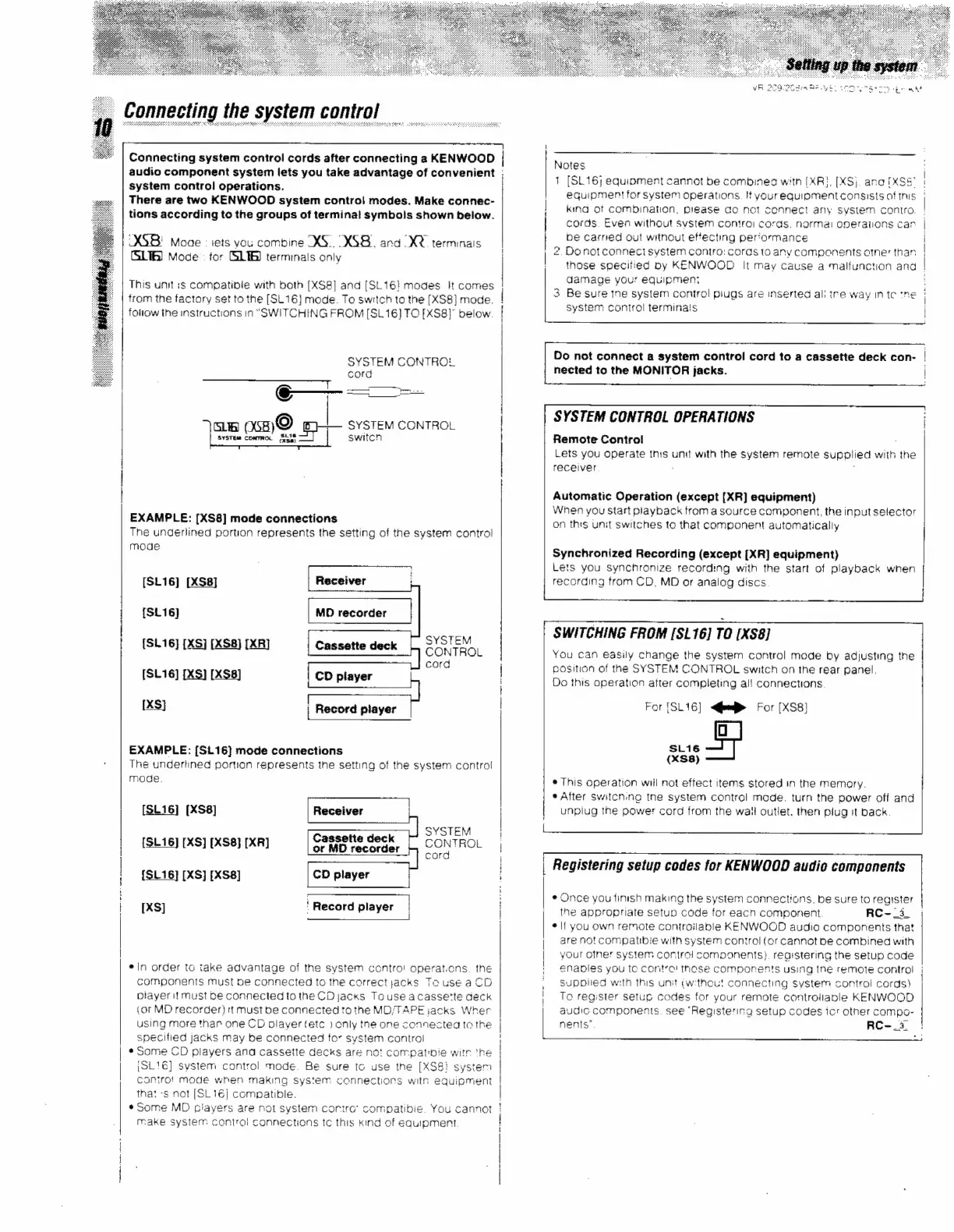

Connecting the system control
Connecting system control cords after connecting a KENWOOD |
audio component system lets you take advantage of convenient ;
system contro! operations.
There are two KENWOOD system control modes. Make connec-
tions according to the groups of terminal symbols shown below.
XSB' Moae : ets you combine XS. X88. and XV terminals
(LIA) Mode : for GLE) terminals only
This unit ss Compatibie with both [XS8] and [SL16! modes It comes
from the factory set to the [SL16] made. To switch to the [XS8] mode. |
fotiow the instructions in “SWITCHING FROM [SL16} TO [XS$8]" below.
SYSTEM CONTROL
cord
oo
Cc <a —_—_—
ie © a8 SYSTEM CONTROL
mal G8) gus switcn
EXAMPLE: [XS8] mode connections
The undertined portion represents the setting of the system control
mode
[SL16] [XS8] Receiver
SYSTEM
[SL16] [XS] (XS8) [XR] i. |
cord i
[SL16] [XS) [X$8] CD player
[XS]
Record player
EXAMPLE: [SL16} mode connections
The undertined portion represents the setting of the system control
mode.
[SL16] [X$8] Receiver |
— SYSTEM
[$16] [XS] [XS8} [XR] Cassette deck FT CONTROL
or MD recorder
cord
{SL16} [XS] [XS8] CD player
[XS]
‘Record
player
|
*In order to take advantage of the system contro! operat.ons. the
components must De connected to the correct jacks Tousé a CD
player it must be connected tothe CD jacks Touse acasse'te deck
(or MD recorder) tt must be connected to the MD/TAPE jacks Wher
using more thar one CD player (etc :only tne one connectea tothe |
specified jacks may be connected for system control
!
1
jSL16] system control mode. Be sure to use the [XS8} system
camrot mode when making system connections with equipment |!
that -s net [SL16] compatible.
* Some MD players are not system cortrc’ compatibie. You cannot
make system contro: connections tc this kind of Equipment.
Notes
1 [SL16} equioment cannot be combinea with [XR}, [XSj. ana [XSS" i
equipment for system operations. tf yourequipment consists of tnis
kind of combination, piease Go not cennect any system contro. |
cords. Even without svstem contro: cords, normal operatoans car
be carned out without effecting performance
2. Do not canneci system contro: cords to any components otner than
those specitied by KENWOOD It may cause a malfunction and
damage your equipmem
Be sure tne system control plugs aré inserted ali tre way in tc 7ne
system control terminals
ie)
Do not connect a system control cord to a cassette deck con- |
nected to the MONITOR jacks. |
| SYSTEM CONTROL OPERATIONS
Remote Contro!
Lets you operate tnis unit with the system remote supplied with the
receiver.
Automatic Operation (except [XR] equipment)
When you Start playback from a source camponent, the input selector
on this unit switches to that Component automatically
Synchronized Recording (except [XR] equipment)
Lets you synchronize recording with the start of playback when |
| recording from CD, MD or analog discs. |
SWITCHING FROM [SL16] TO [XS8]
You can easily change the system control mode by adjusting the
position of the SYSTEM CONTROL switch on the rear panel.
Do this operation after completing all connections.
For {SL16] <Q For [XS8]
SL16
(XS&)
¢ This operation wil not effect items stored in the memory.
* After switcn-na tne sysiem control mode. turn the power off and
unplug the power cord from the wail outlet, then plug it back.
| Registering setup codes for KENWOOD audio components
* Once you finish making the system connections, be sure to reqister |
the appropriate setup code for eacn component. RC-_3. |
* If you own remote controilable KENWOOD audio components that
are not compatibie with system control (cr cannot be combined with
your otner system control components}. rearstering the setup code
1 eénabdles you tc contro! these components using tne remote contral |
suppiled with this unit cwethout connecting system control cords)
To register setup codes for your remote controllaple KENWOOD
audic components. see "Registering setup codes icr other compo-
nents". RC-_3.
