Keysight U2020 X Series User Manual

1 Getting Started
14 Keysight U2020 X-Series User’s Guide
Overview
The U2020 X-Series is a USB-based standalone peak and average power sensor
and meter. The U2020 X-Series consists of two models; U2021XA (50 MHz to
18 GHz) and U2022XA (50 MHz to 40 GHz).
The U2020 X-Series is capable of measuring the average and peak power of
modulated, pulsed, and continuous wave (CW) signals in 50 MHz to
40 GHz frequency range and –45 dBm to 20 dBm power range.
[1] The recorder and video output share the same port as the trigger output.

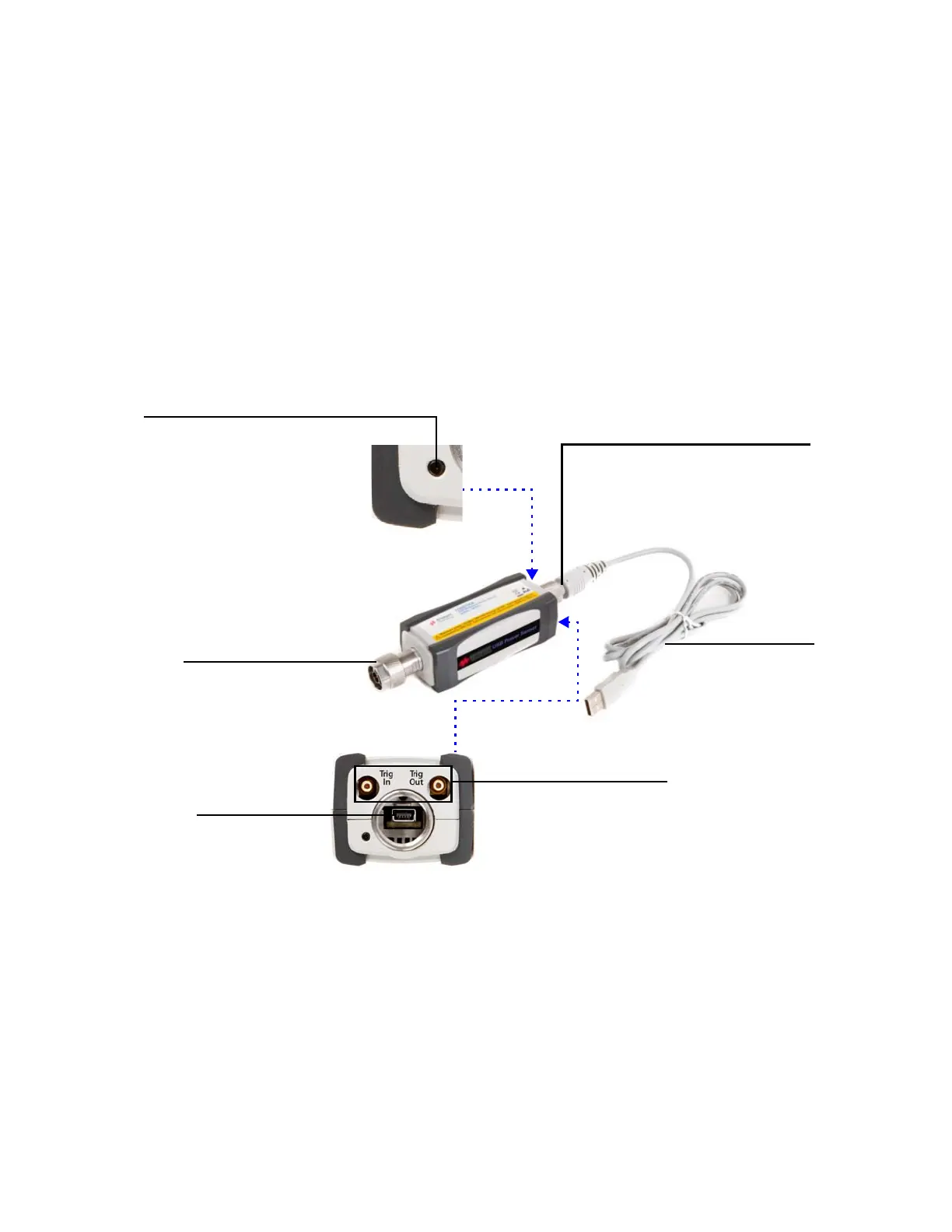

LED indicator
Indicates the U2020 X-Series state.
Refer to LED Indicator Sequence During
Power-Up for details.
Physical secure lock mechanism
RF input port for RF/
microwave signals
USB port
External trigger ports
[1]
USB cable
